 |  |  |  |  |  |  |  | Notes Bulletin Reference | |||

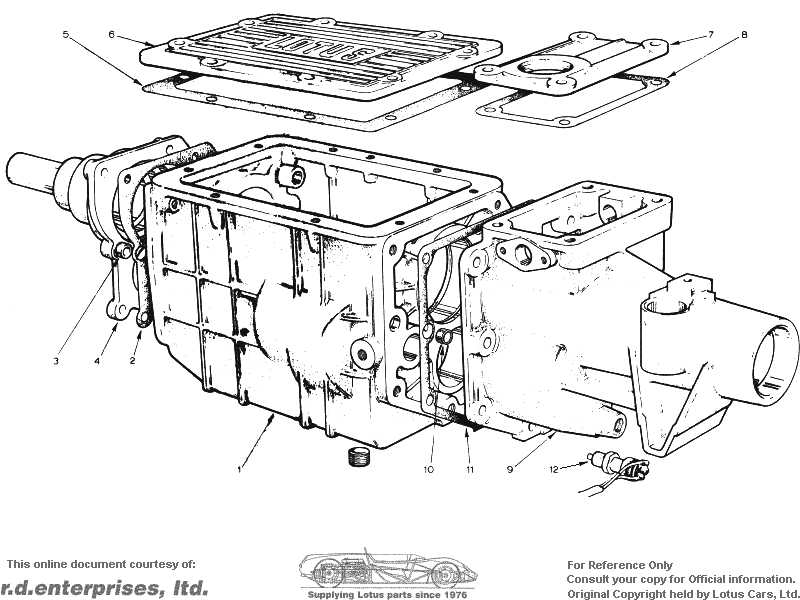

| 5 Speed Gearbox | |||||||||||
| A050F0731W | 1 | Assembly. Gearbox, | |||||||||
| 1 | A050F0240Z | 1 | Casing. Main, | ||||||||
| 2 | A050F0270Z | 1 | Gasket. Front Cover, | ||||||||
| 3 | A050F0253Z | 2 | Dowel. | ||||||||
| 4 | A050F0294W | 1 | Sub-assembly. Front Cover, | ||||||||
| XMMB0825 | 6 | Bolt. Front Cover Securing, | |||||||||
| M189 | 6 | Washer. | |||||||||
| 5 | A050F0271Z | 1 | Gasket. Top Cover, | ||||||||
| 6 | A050F0241Z | 1 | Cover. Top, | ||||||||
| XMMB0825 | 8 | Bolt. Top Cover Securing, | |||||||||
| M189 | 8 | Washer. | |||||||||
| 7 | A050F0278Z | 1 | Cover. Gear Selector, | ||||||||
| 8 | A050F0273Z | 1 | Gasket. Gear Selector Cover, | ||||||||
| XMMB0825 | 4 | Bolt. Selector Cover Securing, | |||||||||
| M189 | 4 | Washer. | |||||||||
| 9 | A050F0243Y | 1 | Housing. Tailshaft, | ||||||||
| 10 | A050F0254Z | 2 | Dowel. | ||||||||
| 11 | A050F0272Z | 1 | Gasket. Tailshaft Housing, | ||||||||
| XMMB0825 | 5 | Bolt. Housing Securing, | |||||||||
| XMMB0840 | 2 | Bolt. Housing Securing, | |||||||||
| M189 | 7 | Washer. | |||||||||
| 12 | A036M6304V | 1 | Switch. Reverse Light, | ||||||||
| 216 | 1 | Nut. | |||||||||
| A050F6083Z | 2 | Plug. Oil Filler/Drain |
