 |  |  |  |  |  |  |  | Notes Bulletin Reference | |||

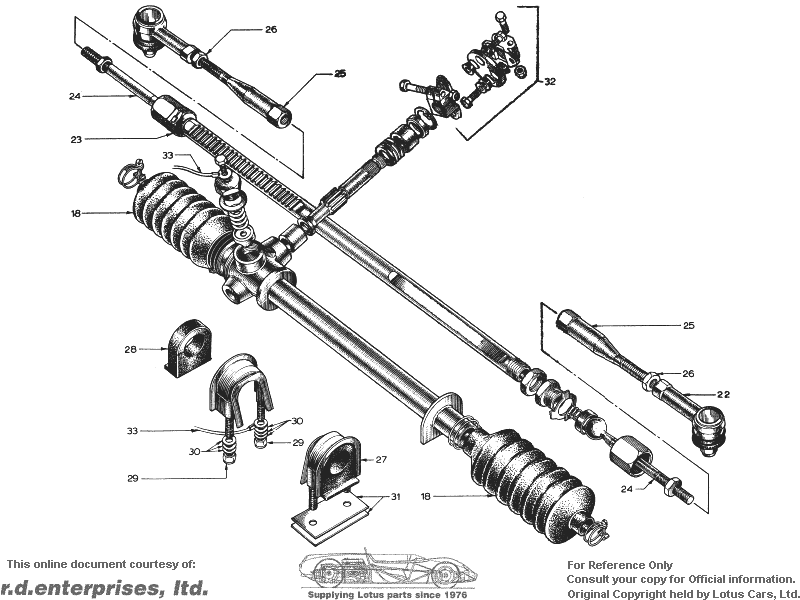

| 050H0703 | 1 | + | Steering Unit Assembly | ||||||||
| 050H0704 | 1 | + | Steering Unit Assembly | ||||||||
| 18 | 036H6027 | 2 | Bellows | ||||||||
| 22 | 036H6007 | 2 | Ball Joint Assembly | ||||||||
| 23 | 050H0001 | 1 | Stop - Lock Limiting (Pinion End) | ||||||||
| 050H0002 | 1 | Stop - Lock Limiting (Open End) | |||||||||
| 24 | 026H0005 | 2 | Tie Rod | ||||||||
| 036H6051 | AR | Shim - .002 ins. | |||||||||
| 036H6051A | AR | Shim - .010 ins. | |||||||||
| 25 | 050H0056 | 2 | Adaption - Tie Rod | ||||||||
| 26 | LUFN050F | 2 | Lock Nut - Tie Rod Adaptor | ||||||||
| 27 | 036H6040 | 2 | Clamp Assembly | ||||||||
| 28 | 036H6041 | 2 | Mounting Rubber - Steering Unit | ||||||||
| 29 | YUFN050F | 4 | Nut, Steering Unit Mounting | ||||||||
| 30 | A05W1007 | AR | Washer, Steering Unit Mounting | ||||||||
| 31 | A036H0061 | AR | Shim, Steering Unit Mounting | ||||||||
| A036H0060 | AR | Shim | |||||||||
| 32 | 050H6012 | 1 | Flexible Joint Assembly | ||||||||
| 036H6042 | 1 | Plate, Flexible Joint | |||||||||
| 036H6003 | 8 | Bush, Flexible Joint | |||||||||
| 33 | 026M0038 | 1 | Earth Lead - Steering Unit to Column |
