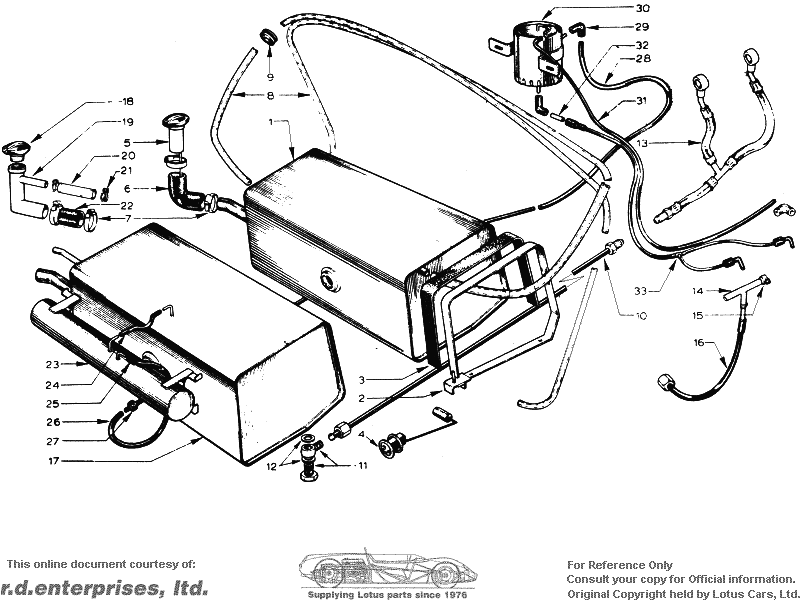

 |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 1 | 050L0702 | 1 | Fuel Tank | ||||||||
| A036L0047 | 1 | Seal - Fuel Tank to Body | |||||||||
| W0210 | 1 | Rubber Seal - Fuel Tank to Body | |||||||||
| 2 | 050L0037 | 2 | Strap - Fuel Tank Retaining | ||||||||
| 3 | 050L6005 | 2 | Rubber Strap - Fuel Tank Mounting | ||||||||
| XUFS0412 | 6 | Screw, Retaining Straps to Body | |||||||||
| YUFN040F | 6 | Nut, Retaining Straps to Body | |||||||||
| A04W1606 | 6 | Washer, Retaining Straps to Body | |||||||||
| AUFN040F | 2 | Nut, Retaining Straps Tensioning | |||||||||
| L04W0000 | 2 | Washer, Retaining Straps Tensioning | |||||||||
| 4 | 050L6000 | 1 | Sender Unit - Fuel Gauge | ||||||||
| 050L6001 | 1 | Gasket - Fuel Gauge Sender Unit | |||||||||
| 050L0705 | 1 | Filler Neck Assembly (replaced by 050L0705A) | |||||||||
| 5 | 050L0705A | 1 | Filler Neck Assembly | ||||||||
| 050L6008 | 1 | Secondary Seal | |||||||||
| 050L6011 | 1 | Anti-Splash Assembly | |||||||||
| 050L6001 | 1 | Gasket - Filler Cap (replaced by 050L6009) | Bulletin: Service 1970/9 | ||||||||
| 050L6009 | 1 | Gasket - Filler Cap | |||||||||
| 050B0328 | 1 | Grommet - Filler Neck to Body | |||||||||
| 050B1440 | 1 | Support Bracket - Filler Neck | |||||||||
| 6 | 050L6007 | 1 | Hose - Fuel Filler Neck, Optional | ||||||||
| 050L0003 | 1 | Hose - Fuel Filler Neck, Optional | |||||||||
| 7 | 036L6002 | 2 | Hose Clip | ||||||||
| 8 | 050L0038 | 2 | Breather Hose | ||||||||
| 9 | 036B6010 | 6 | Grommet - Breather Hose to Body | From Chassis No. 0994 | |||||||
| 10 | 050L0006 | 1 | Pipe - Fuel Tank to Pump | ||||||||
| 11 | 050L6003 | 1 | Bolt - Banjo, Pipe to Chassis | ||||||||
| 12 | 050L6004 | 2 | Seal - Bolt, Pipe to Chassis | ||||||||
| 036L6003 | 2 | Fastener, Pipe to Chassis | |||||||||
| 036L6004 | 2 | Grommet, Pipe to Chassis | |||||||||
| 13 | B026L0703 | 1 | Fuel Pipe - Pump to Carburetters (Weber) | ||||||||
| 14 | 026S0132 | 1 | 1 | 1 | 1 | 'T' Piece, Pump to Carburetters (Stromberg) | |||||
| 15 | 026S0133 | 3 | 3 | Clip, Pump to Carburetters (Stromberg) | |||||||
| 15 | 026S0133 | 2 | 2 | Clip, Pump to Carburetters (Stromberg) | |||||||
| 16 | D026L0703 | 1 | 1 | 1 | 1 | Fuel Pipe, Pump to Carburetters (Stromberg) | |||||
| 17 | 050L0040 | 1 | Fuel Tank | 1971 Evaporative Loss Control | |||||||
| 18 | 050L6013 | 1 | Filler Cap | 1971 Evaporative Loss Control | |||||||
| 19 | A050L0045 | 1 | Filler Neck | 1971 Evaporative Loss Control | |||||||
| 20 | A050L0073 | 1 | Pipe - Vent | 1971 Evaporative Loss Control | |||||||
| 21 | 050P6002 | 2 | Clip - Pipe | 1971 Evaporative Loss Control | |||||||
| 22 | A050L0075 | 1 | Hose - Filler Neck | 1971 Evaporative Loss Control | |||||||
| 23 | 050L0039 | 1 | Catch Tank | 1971 Evaporative Loss Control | |||||||
| 24 | A050L0066 | 1 | Pipe - Fuel Tank to Catch Tank | 1971 Evaporative Loss Control | |||||||
| 25 | A036L0063 | 1 | Pipe - Catch Tank to Main Pipe | 1971 Evaporative Loss Control | |||||||
| 26 | A050L0072 | 1 | Pipe - Main Fuel Feed | 1971 Evaporative Loss Control | |||||||
| 27 | 036L6004 | 3 | Grommet | 1971 Evaporative Loss Control | |||||||
| 28 | A050L0068 | 1 | Pipe - Main Pipe to Canister | 1971 Evaporative Loss Control | |||||||
| 29 | 036J0135 | 4 | Elbow | 1971 Evaporative Loss Control | |||||||
| 30 | 036L0046 | 1 | Canister | 1971 Evaporative Loss Control | |||||||
| 31 | A050L0069 | 1 | Pipe - Canister to Airbox | 1971 Evaporative Loss Control | |||||||
| 32 | A050L0070 | 1 | Tube | 1971 Evaporative Loss Control | |||||||
| 33 | A050L6014 | 1 | Pipe - Canister to Carburetters | 1971 Evaporative Loss Control |
