 |  |  |  |  |  |  |  | Notes Bulletin Reference | |||

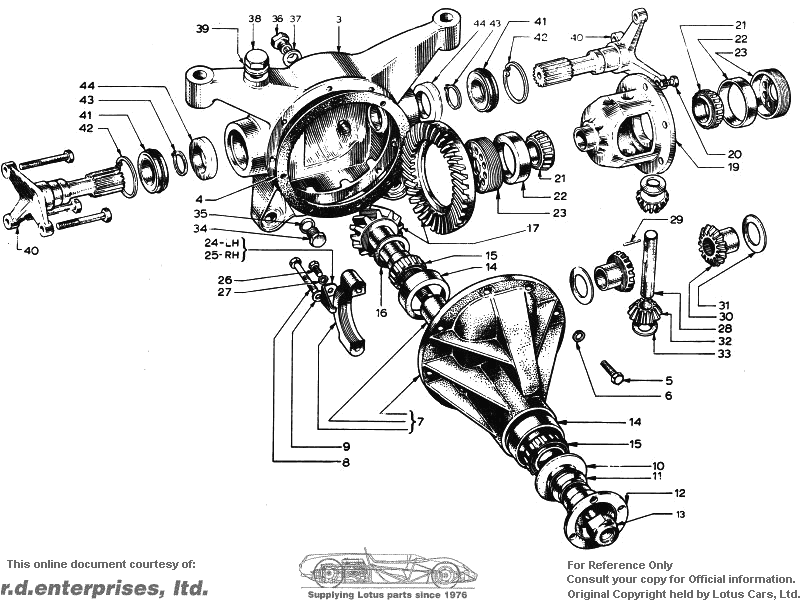

| 1 | A026R0702 | 1 | Differential Assembly 3.77 : 1 | ||||||||
| 3 | A026R0004 | 1 | Differential Case | ||||||||
| 4 | 026R0014 | 1 | Gasket - Nose Piece to Differential Case | ||||||||
| 5 | XUCS0516 | 8 | Screw - Nose Piece to Differential Case | ||||||||
| 6 | L05W0000 | 8 | Washer - Nose Piece to Differential Case | ||||||||
| 7 | A036R6038 105E4017) | 1 | Differential Carrier | ||||||||
| 8 | XUCS0516 | 4 | Screw, Cap to Differential Carrier | ||||||||
| 9 | L05W0000 | 4 | Washer, Cap to Differential Carrier | ||||||||
| 10 | A036R6017 (105E4676B) | 1 | Seal | ||||||||
| 11 | A036R6034 105E4859C) | 1 | Deflector | ||||||||
| 12 | A036R6022 (118E4851B) | 1 | Flange | ||||||||
| 13 | 114274ES | 1 | Nut | ||||||||
| A036R6020 (105E4662A) | 1 | Spacer - Pinion Bearing | |||||||||
| 14 | A036R6026 (105E4616A) | 2 | Cup - Pinion Bearing | ||||||||
| 15 | A036R6023 (105E4621A) | 2 | Cone - Pinion Bearing | ||||||||
| 16 | A036R6040 (105E4672A) | AR | Shim - Pinion Adjusting, 0.1304 - 0.1308 ins. | ||||||||
| A036R6041 (105E4672B) | AR | Shim - Pinion Adjusting, 0.1314 - 0.1318 ins. | |||||||||
| A036R6042 (105E4672C) | AR | Shim - Pinion Adjusting, 0.1324 - 0.1328 ins. | |||||||||
| A036R6043 (105E4672D) | AR | Shim - Pinion Adjusting, 0.1334 - 0.1338 ins. | |||||||||
| A036R6044 (105E4672E) | AR | Shim - Pinion Adjusting, 0.1344 - 0.1348 ins. | |||||||||
| A036R6045 (105E4672F) | AR | Shim - Pinion Adjusting, 0.1354 - 0.1358 ins. | |||||||||
| A036R6046 (105E4672G) | AR | Shim - Pinion Adjusting, 0.1364 - 0.1368 ins. | |||||||||
| A036R6047 (105E4672H) | AR | Shim - Pinion Adjusting, 0.1374 - 0.1378 ins. | |||||||||
| A036R6048 (105E4672J) | AR | Shim - Pinion Adjusting, 0.1384 - 0.1388 ins. | |||||||||
| A036R6049 (105E4672K) | AR | Shim - Pinion Adjusting, 0.1394 - 0.1398 ins. | |||||||||
| A036R6050 (105E4672L) | AR | Shim - Pinion Adjusting, 0.1404 - 0.1408 ins. | |||||||||
| A036R6051 (105E4672M) | AR | Shim - Pinion Adjusting, 0.1414 - 0.1418 ins. | |||||||||
| A036R6051 (105E4672N) | AR | Shim - Pinion Adjusting, 0.1424 - 0.1428 ins. | |||||||||
| 17 | 2930E4209F | 1 | Crown Wheel and Pinion | ||||||||
| 19 | A036R6037 (105E4205B) | 1 | Housing - Differential Gear | ||||||||
| 20 | A036R6030 (113573ES) | 6 | Bolt - Crown Wheel to Housing | ||||||||
| 21 | A036R6024 (105E4221A) | 2 | Bearing - Differential Gear Housing | ||||||||
| 22 | A036R6025 (105E4222A) | 2 | Cup - Differential Gear Housing | ||||||||
| 23 | A036R6016 (105E4067) | 2 | Nut - Differential Adjusting | ||||||||
| 24 | A036R6028 (E0A4143A) | 1 | Lockplate, LH | ||||||||
| 25 | A036R6027 (E0A4143B) | 1 | Lockplate, RH | ||||||||
| 26 | A036R6031 (20310S7) | 2 | Bolt | ||||||||
| 27 | A036R6032 (34806ES2) | 2 | Washer | ||||||||
| 28 | A036R6036 (105E5211B) | 1 | Shaft - Differential Pinion | ||||||||
| 29 | A036R6019 (105E4241) | 1 | Pin | ||||||||
| 30 | A036R6039 (105E4236) | 2 | Gear - Differential | ||||||||
| 31 | A036R6033 (2930E4228) | 2 | Thrust Washer | ||||||||
| 32 | A036R6035 (105E4215) | 2 | Gear - Differential Pinion | ||||||||
| 33 | A036R6029 (2930E4230) | 2 | Thrust Washer | ||||||||
| 34 | 036R6008 | 1 | Drain Plug | ||||||||
| 35 | 036R6009 | 1 | Washer - Drain Plug | ||||||||
| 36 | 036R6010 | 1 | Plug - Filer/Level | ||||||||
| 37 | 036R6011 | 1 | Washer - Filler/Level | ||||||||
| 38 | A026R0009 | 1 | Breather | ||||||||
| 39 | 036R6012 | 1 | Washer - Breather | ||||||||
| 40 | A026R0005 | 2 | Drive Shaft - Inboard | ||||||||
| B026R0005 | 2 | Drive Shaft - Inboard | |||||||||
| 41 | 036D6017 | 2 | Bearing, Optional | ||||||||
| 036D6016 | 2 | Bearing, Optional | |||||||||
| 036R6005 | 2 | Circlip - Internal (replaced by 036D6006) | |||||||||
| 42 | 036D6006 | 2 | Circlip - Internal | ||||||||
| 036R6006 | 2 | Circlip - External (replaced by 036D6007) | |||||||||
| 43 | 036D6007 | 2 | Circlip - External | ||||||||
| 44 | 036R6007 | 2 | Seal |
