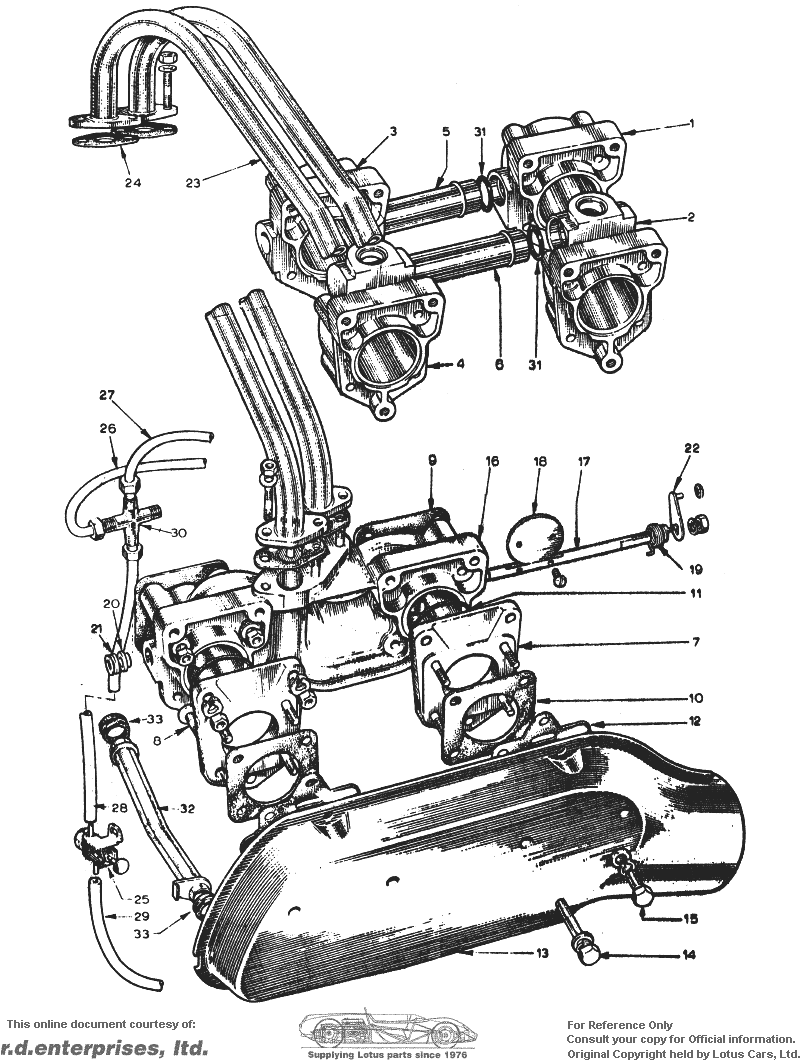

 |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 1 | 026S0099 | 1 | 1 | Adaptor Block, Front Carburetter | |||||||
| 2 | B026S0099 | 1 | 1 | Adaptor Block, Front Carburetter | |||||||
| 3 | 026S0100 | 1 | 1 | Adaptor Block, Rear Carburetter | |||||||
| 4 | B026S0100 | 1 | 1 | Adaptor Block, Rear Carburetter | |||||||
| A036S0731 | 1 | 1 | Adaptor Block Assembly, Front | ||||||||
| A036S0732 | 1 | 1 | Adaptor Block Assembly, Rear | ||||||||
| A026S6129 | 2 | 2 | Core Plug, Adaptor Block | ||||||||
| 5 | 026S0128 | 1 | 1 | Balance Pipe | |||||||
| 6 | C026S0128 | 1 | 1 | Balance Pipe | |||||||
| 31 | 036S6161 | 2 | 2 | 'O' Ring - Balance Pipe | |||||||
| 7 | 026S0009A | 2 | 2 | 2 | 2 | Adaptor Flange | |||||
| 8 | UFCT0526 | 6 | 6 | 6 | 6 | Stud - Adaptor Block or Throttle Body | |||||
| W0122 | 8 | 8 | 8 | 8 | Stud - Adaprot Flange | ||||||
| 9 | 026S0108 | 2 | 2 | 2 | 2 | gasket - To Cylinder head | |||||
| 10 | 026S0107 | 2 | 2 | 2 | 2 | Gasket - To Carburetter | |||||
| 11 | A026S0086A | 2 | 2 | 2 | 2 | 'O' Ring - Adaptor Flange | |||||
| 12 | 026S0106 | 2 | 2 | 2 | 2 | Gasket - To Airbox | |||||
| A026S0112 | 1 | 1 | Airbox Assembly | ||||||||
| 13 | B026S0116 | 1 | 1 | Airbox Assembly | |||||||
| A050S0112 | 1 | Airbox Assembly - Not evap. loss | |||||||||
| B050S0112 | 1 | Airbox Assembly - Evap. loss | |||||||||
| 026S0116 | 1 | 1 | Information Label | ||||||||
| B026S0116 | 1 | 1 | Information Label | ||||||||
| 14 | XUCB0548 | 2 | 2 | 2 | 2 | Bolt, Airbox Mounting | |||||
| 15 | XUCB0510 | 2 | 2 | 2 | 2 | Bolt, Airbox Mounting | |||||
| 026S0109 | 1 | 1 | Secondary Throttle Body Assembly | ||||||||
| 16 | 026S0110 | 1 | 1 | Secondary Throttle Body Assembly | |||||||
| 17 | 026S0117 | 2 | 2 | Spindle - Throttle Body | |||||||
| 18 | 026S0118 | 2 | 2 | throttle Plate | |||||||
| 036S6008 | 4 | 4 | Screw - Plate | ||||||||
| 19 | 026S0119 | 1 | 1 | Spring - Return | |||||||
| 026S0120 | 1 | 1 | Spring - Retuen | ||||||||
| 20 | 026S0121 | 2 | 2 | Bush, Spindle | |||||||
| 21 | 026S0122 | 2 | 2 | Seal Retainer, Spindle | |||||||
| 026S0123 | 2 | 2 | Seal, Spindle | ||||||||
| 22 | 026S0124 | 1 | 1 | Lever - Throttle | |||||||
| 026S0125 | 1 | 1 | Lever - Throttle | ||||||||
| 036S6009 | 2 | 2 | Nut, Spindle | ||||||||
| 036S6010 | 2 | 2 | Washer, Spindle | ||||||||
| 026S0127 | 1 | 1 | Connecting Link Assembly | ||||||||
| 026S0126 | 1 | 1 | Connecting Link Assembly | ||||||||
| 026S0130 | 1 | 1 | 1 | 1 | Coupling Spindle Assembly | ||||||
| 026S0131 | 1 | 1 | 1 | 1 | Coupling | ||||||
| 23 | 026S0111 | 2 | 2 | Cross-Over Pipe | |||||||
| 026S0146A | AR | AR | Spacer - 3/32 in. thick | ||||||||
| 026S0146B | AR | AR | Spacer - 1/8 in. thick | ||||||||
| 026S0146C | AR | AR | Spacer - 5/32 in. thick | ||||||||
| 24 | 026S0114 | 6 | 6 | Gasket - Cross-Over Pipe | |||||||
| UFCT420 | 8 | 8 | Stud, Cross-Over Pipe Mounting | ||||||||
| W0124 | 8 | 8 | Nut, Cross-Over Pipe Mounting | ||||||||
| A04W0906 | 8 | 8 | Washer, Cross-Over Pipe Mounting | ||||||||
| 25 | 026S0134 | 1 | 1 | Valve - Idle Retard | |||||||
| 036S6018 | 2 | 2 | Locknut, Valve | ||||||||
| 036S6019 | 2 | 2 | Washer, valve | ||||||||
| 26 | 026S0138 | 1 | 1 | Tube - To Front Carburetter | |||||||
| 27 | 026S0137 | 1 | 1 | Tube - To Rear Carburetter | |||||||
| 28 | 026S0139 | 1 | 1 | Tube - To Union | |||||||
| 29 | 026S0140 | 1 | 1 | Tube - To distributor | |||||||
| 026S0166 | 1 | 1 | Tube - Rear Carburetter to Distributor | ||||||||
| 046E6343 | 1 | 1 | Sleeve | ||||||||
| 026S0136 | 1 | 1 | Elbow | ||||||||
| 30 | 026S0135 | 1 | 1 | '4'-way Union | |||||||
| 026S0165 | 1 | 1 | '3'-way Union | ||||||||
| 32 | A026S0052 | 1 | 1 | 1 | 1 | Pipe - Breather | |||||
| 33 | A026E0322A | 2 | 2 | 2 | 2 | Grommet - Pipe |
