 |  |  |  |  |  |  |  | Notes Bulletin Reference | |||

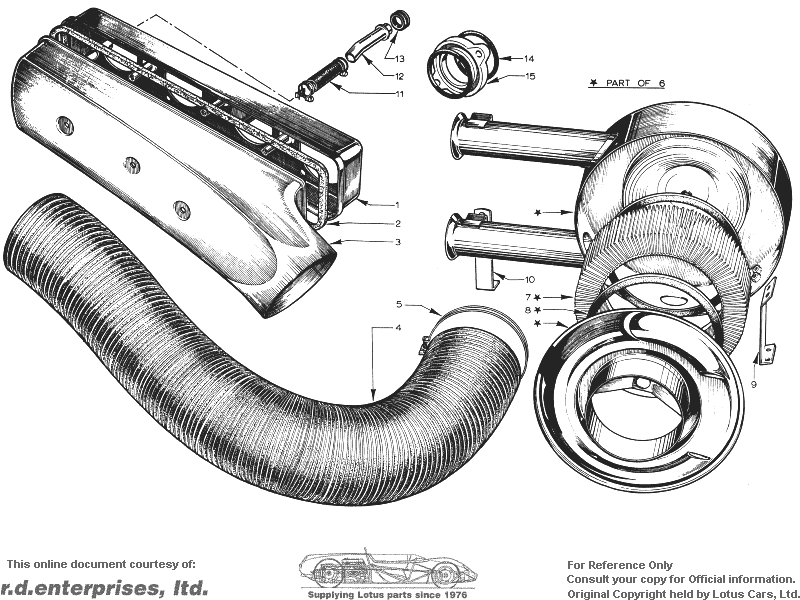

| 1 | 050S6000 | 1 | 1 | 1 | Airbox Backplate | ||||||
| 2 | A026S0016 | 1 | 1 | 1 | Gasket, Airbox | ||||||
| 3 | 050S0022 | 1 | 1 | 1 | Cover, Airbox | ||||||
| XUCB0532 | 3 | 3 | 3 | Bolt, Airbox | |||||||
| L05W0000 | 3 | 3 | 3 | Washer, Airbox | |||||||
| 4 | A050S0168 | 1 | 1 | 1 | Trunking | ||||||
| 5 | 036S6006 | 2 | 2 | 2 | Clip - Trunking | ||||||
| B026S0704 | 1 | 1 | 1 | Air Filter Assembly | |||||||
| 7 | 028S0020 | 1 | 1 | 1 | Element, Filter Assembly | ||||||
| 8 | 036S6007 | 2 | 2 | 2 | Seal, Filter Assembly | ||||||
| A026S0015 | 1 | 1 | Bracket - Filter Mounting | ||||||||
| 9 | 050S0015 | 1 | 1 | Bracket - Filter Mounting | |||||||
| 10 | 026S0014 | 1 | 1 | 1 | Bracket | ||||||
| 11 | 026S0054 | 1 | 1 | 1 | Nose, Breather | ||||||
| 036S6020 | 2 | 2 | 2 | Clip, Breather | |||||||
| 12 | 026S0052 | 1 | 1 | 1 | Tube, Breather | ||||||
| 13 | A026S0322A | 1 | 1 | 1 | Grommet, Breather | ||||||
| 14 | 026S0086 | 8 | 8 | 8 | 'O' Ring, Carburetters to Cylinder Head | ||||||
| 15 | A026S0009 | 4 | 4 | 4 | Spacer, Carburetters to Cylinder Head |
