 |  |  |  |  |  |  |  | Notes Bulletin Reference | |||

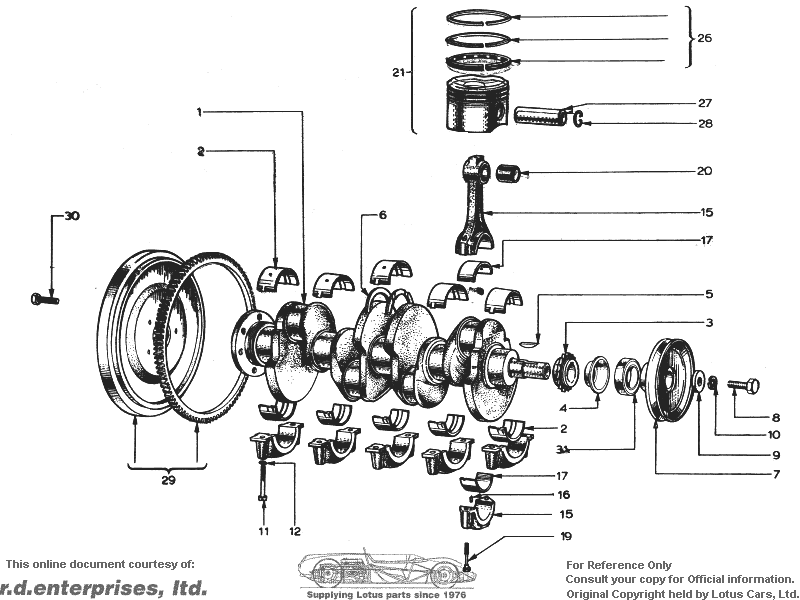

| 1 | B026E0330 | 1 | Crankshaft | ||||||||
| 2 | 026E0336 | 10 | Crankshaft Liner - Main Bearing - Standard | ||||||||
| A026E0336 | 10 | Crankshaft Liner - Main Bearing .010 in. U/S | |||||||||
| B026E0336 | 10 | Crankshaft Liner - Main Bearing .0d0 in. U/S | |||||||||
| 3 | 026E0015 | 1 | Crankshaft Sprocket | ||||||||
| 026E0326 | - | Oil slinger (replaced by 026E0326A) | |||||||||
| 4 | 026E0326A | 1 | Oil Slinger | ||||||||
| 5 | A026E6033 (115004ES) | 1 | -Key - Crankshaft Sprocket | ||||||||
| 6 | A026E6035 (105E6308A) | AR | Thrust Washer - Main Bearing | ||||||||
| 105E6308B | AR | Thrust Washer - Main Bearing | |||||||||
| 7 | 026E0331 | 1 | Pulley - Crankshaft | ||||||||
| 8 | A026E6044 (20411S2) | 1 | Bolt - Pulley to Crankshaft | ||||||||
| 9 | 100E6378 | 1 | Washer - Pulley to Crankshaft | ||||||||
| 10 | A026E6055 (34808S2) | 1 | Lock Washer - Pulley to Crankshaft | ||||||||
| 11 | E0TA6345B | 10 | Bolt - Main Bearing Cap | ||||||||
| 12 | 34848-S2 | 10 | Lockwasher - Main Bearing Cap | ||||||||
| 15 | 026E0340 | - | Connecting Rod (replaced by C026E0340) | ||||||||
| C026E0340 | 4 | Connecting Rod | |||||||||
| 16 | 116336ES2 | 8 | Dowel Pin | ||||||||
| 17 | A026E6029 | 8 | Bearing - Connecting Rod | ||||||||
| 026E0715 | 1 | Kit - Big End Bearing - Standard | |||||||||
| 19 | 125E6215 | 8 | Bolt - Connecting Rod | ||||||||
| 20 | 105E6207A | 4 | Bushing - Connecting Rod | ||||||||
| 036E6010 | AR | Kit - Big End Bearing (replaced by 026E0735) | |||||||||
| 026E0735 | AR | Kit - Big End Bearing .010 in. U/S | |||||||||
| 036E6011 | AR | Kit - Big End Bearing (replaced by 026E0736) | |||||||||
| 026E0736 | AR | Kit - Big End Bearing .020 in. U/S | |||||||||
| 21 | A026E0712A | 4 | Piston Assembly - Standard - Grade I 82.481 mm. 3.2473 in. 82.474 mm. 3.2470 in.,Optional | Upto Engine No. LF.8103 | |||||||
| A026E0712A | 4 | Piston Assembly - Standard - Grade II 82.489 mm. 3.2476 in. 82.481 mm. 3.2473 in.,Optional | Upto Engine No. LF.8103 | ||||||||
| A026E0712A | 4 | Piston Assembly - Standard - Grade III 82.497 mm. 3.2479 in. 82.489 mm. 3.2476 in.,Optional | Upto Engine No. LF.8103 | ||||||||
| A026E0712A | 4 | Piston Assembly - Standard - Grade IV 82.504 mm. 3.2482 in. 82.497 mm. 3.2479 in.,Optional | Upto Engine No. LF.8103 | ||||||||
| C026E0712A | 4 | Piston Assembly - Standard - Grade I 82.474 mm. 3.2470 in. 82.466 mm. 3.2467 in.,Optional | From Engine No. LF.8104 | ||||||||
| C026E0712A | 4 | Piston Assembly - Standard - Grade II 82.481 mm. 3.2473 in. 82.474 mm. 3.2470 in.,Optional | From Engine No. LF.8104 | ||||||||
| C026E0712A | 4 | Piston Assembly - Standard - Grade III 82.489 mm. 3.2476 in. 82.481 mm. 3.2473 in.,Optional | From Engine No. LF.8104 | ||||||||
| C026E0712A | 4 | Piston Assembly - Standard - Grade IV 82.497 mm. 3.2479 in. 82.489 mm. 3.2476 in.,Optional | From Engine No. LF.8104 | ||||||||
| A026E0732 | 4 | Piston Assembly - .015 in. O/S - Grade I 82.862 mm. 3.2623 in. 82.855 mm. 3.2620 in.,Optional | Upto Engine No. LF.8103 | ||||||||
| A026E0732 | 4 | Piston Assembly - .015 in. O/S - Grade II 82.870 mm. 3.2626 in. 82.862 mm. 3.2623 in.,Optional | Upto Engine No. LF.8103 | ||||||||
| A026E0732 | 4 | Piston Assembly - .015 in. O/S - Grade III 82.878 mm. 3.2629 in. 82.870 mm. 3.2626 in.,Optional | Upto Engine No. LF.8103 | ||||||||
| A026E0732 | 4 | Piston Assembly - .015 in. O/S - Grade IV 82.885 mm. 3.2632 in. 82.878 mm. 3.2629 in.,Optional | Upto Engine No. LF.8103 | ||||||||
| C026E0732 | 4 | Piston Assembly - .015 in. O/S - Grade I 82.855 mm. 3.2620 in. 82.847 mm. 3.2617 in. | From Engine No. LF.8104 | ||||||||
| C026E0732 | 4 | Piston Assembly - .015 in. O/S - Grade II 82.862 mm. 3.2623 in. 82.855 mm. 3.2620 in. | From Engine No. LF.8104 | ||||||||
| C026E0732 | 4 | Piston Assembly - .015 in. O/S - Grade III 82.870 mm. 3.2626 in. 82.862 mm. 3.2623 in. | From Engine No. LF.8104 | ||||||||
| C026E0732 | 4 | Piston Assembly - .015 in. O/S - Grade IV 82.878 mm. 3.2629 in. 82.870 mm. 3.2626 in. | From Engine No. LF.8104 | ||||||||
| 26 | 026E0733 | 4 | Piston Ring Set - Standard | ||||||||
| A026E0733 | 4 | Piston Ring Set - .015 in. O/S | |||||||||
| 026E6003 | AR | Oil Control Ring set - Standard | |||||||||
| 026E6004 | AR | Oil Control Ring Set - .015 in. O/S | |||||||||
| 27 | 026E0405 | 4 | Piston Pin | ||||||||
| 28 | 105E6140 | 8 | Piston Pin Retainer | ||||||||
| 29 | A026E0717 | 1 | Flysheel Assembly | ||||||||
| 30 | A026E6062 | 6 | Bolt - Flywheel to Crankshaft | ||||||||
| A026E6104 | 1 | Dowel Pin | |||||||||
| 31 | A026E6022 (105E6362C) | 1 | Seal - Crankshaft Front Bearing |
