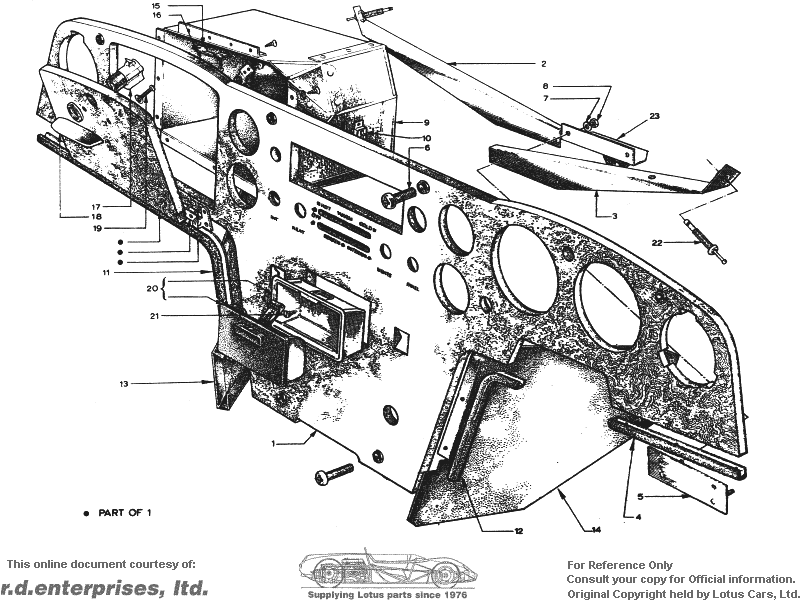

 |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| O50B0237 | 1 | + | Facia Panel | ||||||||
| 1 | 050B0238 | 1 | + | Facia Panel | |||||||
| 2 | 050B1203 | 1 | Bracket - End Support LH | ||||||||
| 3 | 050B1204 | 1 | Bracket - End Support RH | ||||||||
| 4 | 050B1264 | 1 | + | Finisher - Lower Facia RH Piece Driver's Side | |||||||
| 050B1263 | 1 | + | Finisher - Lower Facia LH Piece Driver's Side | ||||||||
| 050B1762 | 1 | + | Finisher - Lower Facia LH Piece Driver's Side | ||||||||
| 050B0919 | 1 | + | Finisher - Lower Facia LH Piece Driver's Side | ||||||||
| 5 | 050B1208 | 2 | Stud Plate | ||||||||
| KWDS0406 | 8 | Screw - Stud Plate to Facia | |||||||||
| 6 | PUCS0416 | 6 | Screw - Chrome Facia to Bulkhead | ||||||||
| 7 | A03W0605 | 4 | Washer, End Bracket to Stud Plate | ||||||||
| 8 | LUFN100F | 4 | Nut - Nyloc, End Bracket to Stud Plate | ||||||||
| 050B0195 | 1 | 1 | + | Glove Box | |||||||
| 9 | 050B0196 | 1 | 1 | + | Glove Box | ||||||
| 050B0195A | 1 | 1 | + | Glove Box | |||||||
| A050B0195 | 1 | 1 | + | Glove Box | |||||||
| 050B0196A | 1 | 1 | + | Glove Box | |||||||
| 050B0621 | 1 | 1 | Mounting Bracket | ||||||||
| 050B6038 | 4 | Rivet, Glove Box to Mounting | |||||||||
| A02W0405 | 4 | Washer, Glove Box to Mounting | |||||||||
| KSWS0206 | 8 | Screw - Angle to Facia | |||||||||
| 10 | 050B6040 | 1 | Switch - Burglar Alarm | ||||||||
| 050B6038 | 2 | Rivet, Switch to Glove Box | |||||||||
| A02W0405 | 2 | Washer, Switch to Glove Box | |||||||||
| 11 | 050B1250 | 1 | 1 | + | Finisher - Lower Facia - RH, (Curved, Passenger Side) | Upto ? | |||||
| 050B1251 | 1 | + | Finisher - Lower Facia - LH Side | Upto ? | |||||||
| 12 | 050B1254 | 1 | + | Finisher - Lower Facia - LH Piece, (Driver's Side) | Upto ? | ||||||
| 050B1253 | 1 | + | Finisher - Lower Facia - RH Piece, (Driver's Side) | ||||||||
| 050B1250 | 1 | 1 | + | Finisher - Lower Facia - RH Side | |||||||
| 050B1760 | 1 | + | Finisher - Lower Facia - LH, (Curved, Driver's Side) | ||||||||
| 050B1761 | 1 | + | Finisher - Lower Facia - RH | ||||||||
| 050B1762 | 1 | + | Finisher - Lower Facia - RH, (Straight, Driver's Side) | ||||||||
| 050B0918 | 1 | + | Finisher - Lower Facia - RH Piece, (Driver's Side) | ||||||||
| 13 | 050B1261 | 1 | 1 | Heater Valance Assembly LH | |||||||
| 14 | 050B1261 | 1 | 1 | Heater Valance Assembly RH | |||||||
| 15 | B026B0200 | 1 | Catchplate | ||||||||
| B026B0200 | 1 | Catchplate | From 1930 to ? | ||||||||
| 16 | KSTS0606 | 2 | Screw - Catchplate to Glove Box | ||||||||
| KSTS0606 | 2 | Screw - Catchplate to Glove Box | From 1930 to ? | ||||||||
| 17 | 036B6013 | 1 | Lock - Glove Box | ||||||||
| 036B6013 | 1 | Lock - Glove Box | From 1930 to ? | ||||||||
| 18 | 036B6014 | 1 | Handle | ||||||||
| 036B6014 | 1 | Handle | From 1930 to ? | ||||||||
| 19 | DSTS0612 | 2 | Screw - Handle to Glovebox Lid | ||||||||
| DSTS0612 | 2 | Screw - Handle to Glovebox Lid | From 1930 to ? | ||||||||
| W0092 | 2 | Cupwasher | |||||||||
| W0092 | 2 | Cupwasher | From 1930 to ? | ||||||||
| 20 | 036B6029 | 1 | Ashtray (replaced by 036B6170) | ||||||||
| 036B6170 | 1 | Ashtray | |||||||||
| 050B1563 | 1 | 1 | Backplate - Ashtray | ||||||||
| 050B1771 | 1 | 1 | Ashtray | ||||||||
| 21 | KWDS0204 | 2 | Screw - Ashtray to Facia | ||||||||
| 22 | 050M6006 | 2 | Screw - Courtesy Light | ||||||||
| 23 | 050B1273 | 1 | Mounting Bracket - Radio |
