LOTUS EUROPA TC/TCS PARTS MANUAL

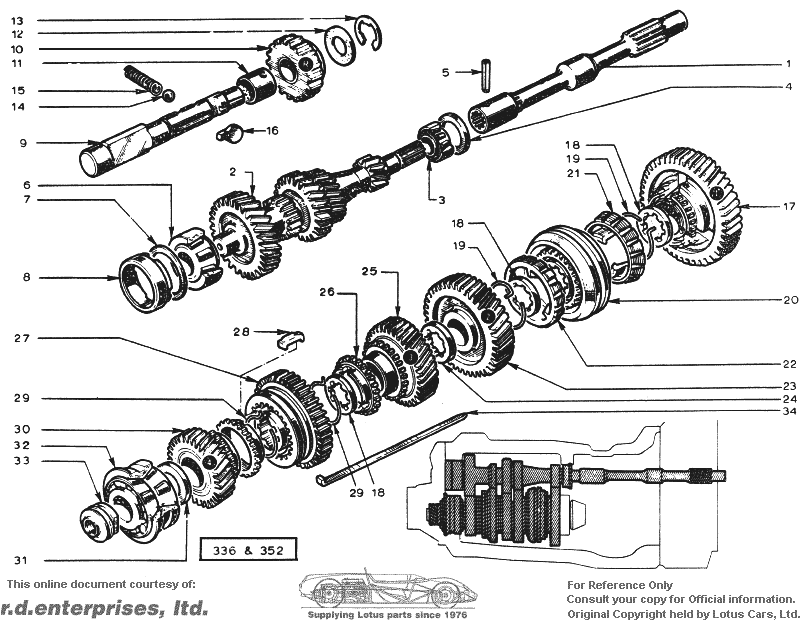

Section FG -- Transmission -- Gearset (336/352)


Item	Lotus #							Description	Change Point Notes Bulletin Reference
FG 1	X046F6050Z	1	1			*	*	Clutch Shaft (336 Gearbox)
	A074F6052Z	1	1	1	1			Clutch Shaft (352 Gearbox)
FG 2	B046F6034Z	1	1	1	1			Primary Shaft
FG 3	X046F6051Z	1	1	1	1			Bearing
FG 4	X046F6082Z	AR	AR	AR	AR			Shim - 2.00 mm.
	X046F6083Z	AR	AR	AR	AR			Shim - 2.25 mm.
	X046F6084Z	AR	AR	AR	AR			Shim - 2.50 mm.
	X046F6085Z	AR	AR	AR	AR			Shim - 2.75 mm.
	X046F6086Z	AR	AR	AR	AR			Shim - 3.00 mm.
	X046F6087Z	AR	AR	AR	AR			Shim - 3.25 mm.
	X046F6088Z	AR	AR	AR	AR			Shim - 3.50 mm.
	X046F6089Z	AR	AR	AR	AR			Shim - 3.75 mm.
	X046F6090Z	AR	AR	AR	AR			Shim - 4.00 mm.
FG 5	A06F6033Z	1	1	1	1			Roll Pin
FG 6	X046F6035Z	1	1	1	1			Bearing
FG 7	X046F6077Z	AR	AR	AR	AR			Shim - 0.10 mm. (As Required)
	X046F6078Z	AR	AR	AR	AR			Shim - 0.20 mm.
	X046F6079Z	AR	AR	AR	AR			Shim - 0.25 mm.
	X046F6080Z	AR	AR	AR	AR			Shim - 0.50 mm.
	X046F6081Z	AR	AR	AR	AR			Shim - 1.00 mm.
FG 8	X046F6036Z	1	1	1	1			Retaining Ring
FG 9	A046F6031Z	1	1	1	1			Shaft - Reverse Gear
FG 10	X046F6027Z	1	1	1	1			Reverse Gear
FG 11	X046F6028Z	1	1			*	*	Bush (336 Gearbox)
FG 12	X046F6026Z	1	1	1	1			Thrust Washer
FG 13	X046F6025Z	1	1	1	1			Circlip
FG 14	A046F6030Z	1	1	1	1			Locking Ball
FG 15	A046F6029Z	1	1	1	1			Spring
FG 16	A046F6032Z	1	1	1	1			Guide
FG 17	A046F6053Z	1	1	1	1			Gear - 1st
FG 18	X046F6038Z	3	3	3	3			Stop Washer
FG 19	X046F6052Z	2	2	2	2			Synchro Spring
FG 20	X046F6058Z	1	1	1	1			Synchroniser Hub (yellow)
	X046F6059Z	1	1	1	1			Synchroniser Hub (blue)
FG 21	X046F6054Z	1	1	1	1			Synchroniser Ring - 1st
FG 22	X046F6060Z	1	1	1	1			Synchroniser Ring - 2nd
FG 23	B046F6061Z	1	1	1	1			Gear - 2nd
FG 24	X046F6062Z	1	1	1	1			Stop Washer
FG 25	X046F6037Z	1	1	1	1			Gear - 3rd
FG 26	X046F6046Z	2	2	2	2			Synchroniser Ring - 3rd/4th
FG 27	X046F6042Z	1	1	1	1			Synchroniser - 3rd/4th (yellow)
	X046F6043Z	1	1	1	1			Synchroniser - 3rd/4th (blue)
FG 28	X046F6039Z	3	3	3	3			Key
FG 29	X046F6040Z	2	2	2	2			Synchro Spring
FG 30	X046F6047Z	1	1	1	1			Gear - 4th
FG 31	X046F6064Z	AR	AR	AR	AR			Shim - 3.50 mm.
	X046F6065Z	AR	AR	AR	AR			Shim - 3.55 mm.
	X046F6066Z	AR	AR	AR	AR			Shim - 3.60 mm.
	X046F6067Z	AR	AR	AR	AR			Shim - 3.65 mm.
	X046F6068Z	AR	AR	AR	AR			Shim - 3.70 mm.
	X046F6069Z	AR	AR	AR	AR			Shim - 3.75 mm.
	X046F6070Z	AR	AR	AR	AR			Shim - 3.80 mm.
	X046F6071Z	AR	AR	AR	AR			Shim - 3.85 mm.
	X046F6072Z	AR	AR	AR	AR			Shim - 3.90 mm.
	X046F6073Z	AR	AR	AR	AR			Shim - 3.95 mm.
	X046F6074Z	AR	AR	AR	AR			Shim - 4.00 mm.
	X046F6075Z	AR	AR	AR	AR			Shim - 4.05 mm.
	X046F6076Z	AR	AR	AR	AR			Shim - 4.10 mm.
FG 32	X046F6048Z	1	1	1	1			Bearing
FG 33	X046F6049Z	1	1			*	*	Speedometer Worm Nut (336 Gearbox)
	A074F6054Z	1	1	1	1			Speedometer Worm Nut (352 Gearbox)
FG 34	A074F6063Z	1	1	1	1			Key
