Europa TC/TCS Parts Manual -- Section FB

LOTUS EUROPA TC/TCS PARTS MANUAL

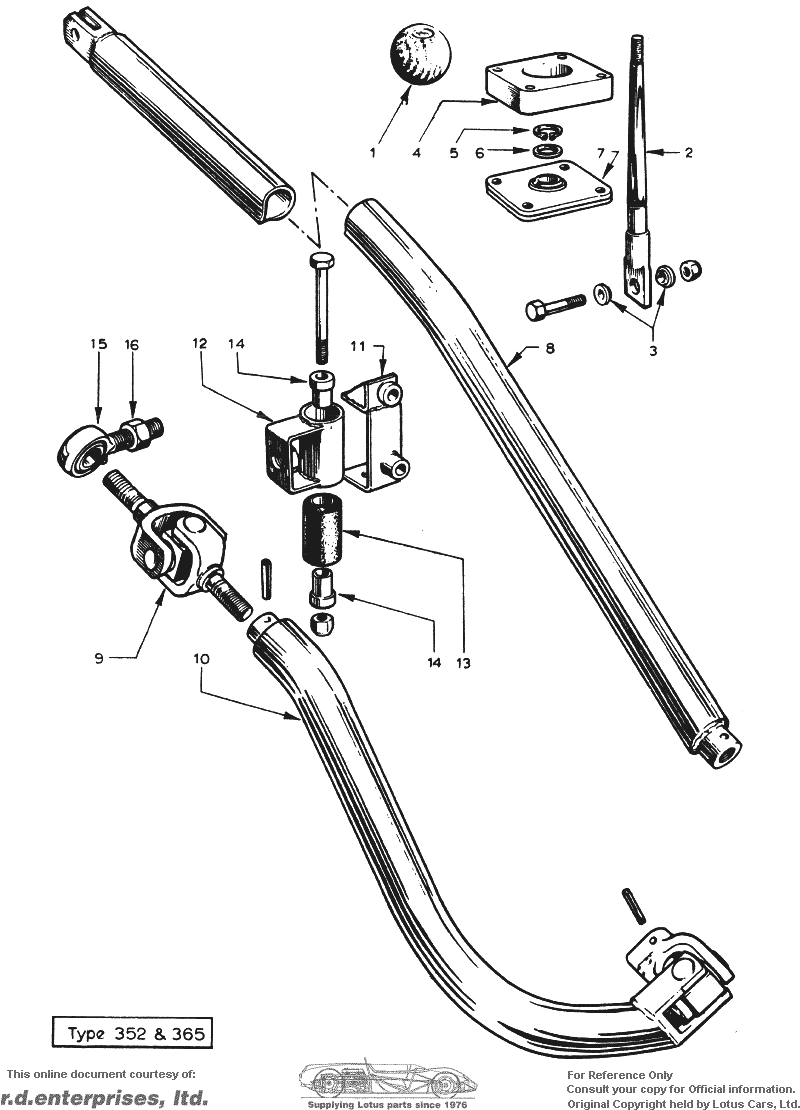

Item	Lotus #							Description	Change Point Notes Bulletin Reference
FB 1	A050F0002A	1	1	1	1			Knob - Gear Lever (352 Gearbox)
	A074F0002Z			1	1	*	*	Knob - Gear Lever (365 Gearbox)
FB 2	A074F0196Z	1	1	1	1			Lever - Gear
FB 3	X046F6153Z	2	2	2	2			Bush - Lever to Front Link
	3B	1	1	1	1			Bolt - Lever to Link Attaching
	20B	1	1	1	1			Nut - Lever to Link Attaching
FB 4	B074F0207Z	1	1	1	1			Plate - Spacer
FB 5	X046F6156Z	1	1	1	1			Circlip
FB 6	X065F0156Z	1	1	1	1			Spacer
FB 7	A065F6003Z	1	1	1	1			Ball Joint
	A065F0171Z	1	1	1	1			Plate - Bearing - Upper
	A065F0172Z	1	1	1	1			Plate - Bearing - Lower
	41	4	4	4	4			Screw - Attaching - Plate - Bearing
	A03W0605	4	4	4	4			Washer - Plate - Bearing
	203	4	4	4	4			Nut - Plate - Bearing
FB 8	B074F0201Z	1	1			*	*	Link - Front Longitudinal
	A074F0209Z			1	1	*	*	Link - Front Longitudinal
FB 9	A074F0194Z	1	1	1	1			Universal joint
FB 10	B074F0204Z	1	1	1	1			Link - Rear Longitudinal	352 Gearboxes up to Ser. No. 17000
	C074F0204Z	1	1	1	1			Link - Rear Longitudinal	352 Gearboxes from Ser. No. 17000
	A074F0210Z			1	1	*	*	Link - Rear Longitudinal	Type 365 Gearbox Only
	A074F6012Z	3	3	3	3			Pin - Spiral
FB 11	C074F0187Z	1	1	1	1			Bracket - A Pivot
FB 12	C074F0188Z	1	1	1	1			A Pivot
FB 13	A050C6042Z	1	1	1	1			Bush
FB 14	A074F0219Z	2	2	2	2			Spacer
	XUFB0440	1	1	1	1			Bolt - A Pivot - Spacer
	208	1	1	1	1			Nut - A Pivot - Spacer
FB 15	A074F6011Z	1	1	1	1			Ball Joint
FB 16	219C	1	1	1	1			Locknut
	128G	1	1	1	1			Washer - Shakeproof
