 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||

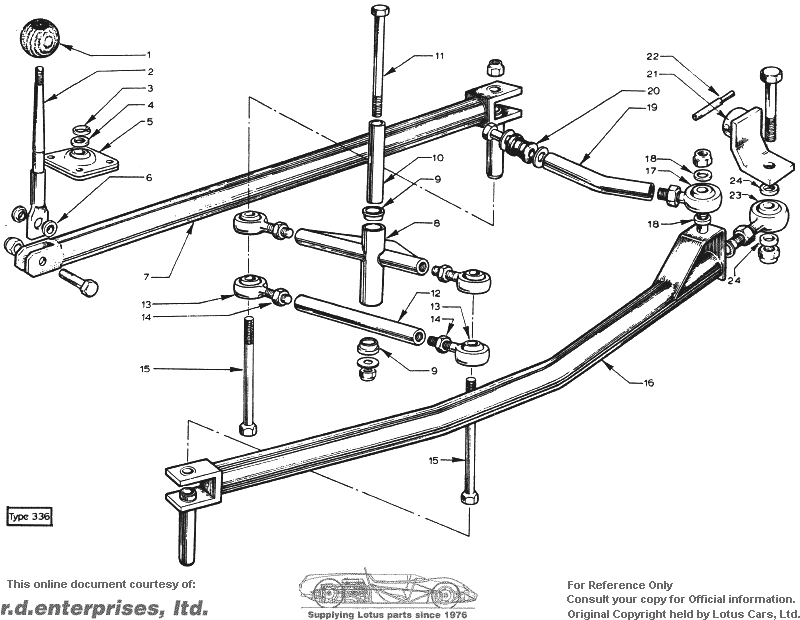

| FA 1 | X054F0002A | 1 | 1 | * | * | Knob - Gear Lever | |||||||
| FA 2 | A065F0155Y | 1 | 1 | * | * | Lever - Gear | |||||||
| FA 3 | X046F6156Z | 1 | 1 | * | * | Circlip | |||||||
| FA 4 | X065F0156Z | 1 | 1 | * | * | Spacer | |||||||
| FA 5 | A065F6003Z | 1 | 1 | * | * | Ball Joint | |||||||
| A065F0171Z | 1 | 1 | * | * | Plate - Bearing - Upper | ||||||||
| A065F0172Z | 1 | 1 | * | * | Plate - Bearing - Lower | ||||||||
| A074F0290Z | 1 | 1 | * | * | Plate - Spacer | ||||||||
| 41 | 4 | 4 | * | * | Screw - Attaching - Plate - Spacer | ||||||||
| A03W0605 | 4 | 4 | * | * | Washer - Plate - Spacer | ||||||||
| 203 | 4 | 4 | * | * | Nut - Plate - Spacer | ||||||||
| FA 6 | X046F6153Z | 2 | 2 | * | * | Bush - Lever to Front Link | |||||||
| 3B | 1 | 1 | * | * | Bolt - Lever to Link Attaching | ||||||||
| 20B | 1 | 1 | * | * | Nut - Lever to Link Attaching | ||||||||
| FA 7 | A074F0175Z | 1 | 1 | * | * | Link - Front Longitudinal | |||||||
| FA 8 | B054F0127Z | 1 | 1 | * | * | Relay Lever | |||||||
| FA 9 | X046F6163Z | 2 | 2 | * | * | Bush | |||||||
| FA 10 | X054F0151Z | 1 | 1 | * | * | Tube - Swivel | |||||||
| FA 11 | 6C | 1 | 1 | * | * | Bolt - Tube - Swivel | |||||||
| 110A | 1 | 1 | * | * | Washer - Tube - Swivel | ||||||||
| YUFN040F | 1 | 1 | * | * | Nut - Tube - Swivel | ||||||||
| FA 12 | A065F0160Z | 1 | 1 | * | * | Tube - Link | |||||||
| FA 13 | A065F6000Z | 4 | 4 | * | * | Ball Joint | |||||||
| FA 14 | AUFN050FZ | 4 | 4 | * | * | Nut | |||||||
| FA 15 | A065F0164Z | 2 | 2 | * | * | Bolt | |||||||
| 211 | 2 | 2 | * | * | Nut | ||||||||
| FA 16 | A074F0176Z | 1 | 1 | * | * | Link - Rear Longitudinal | |||||||
| FA 17 | A065F6000Z | 1 | 1 | * | * | Ball Joint | |||||||
| FA 18 | A065F0170Z | 2 | 2 | * | * | Spacer | |||||||
| FA 19 | A074F0179Z | 1 | 1 | * | * | Link - Location | |||||||
| FA 20 | X054F6003Z | 2 | 2 | * | * | Gromet | |||||||
| 13C | 1 | 1 | * | * | Bolt - Gromet | ||||||||
| 118 | 2 | 2 | * | * | Washer - Gromet | ||||||||
| FA 21 | A074F0178Z | 1 | 1 | * | * | Actuator - Gearbox | |||||||
| FA 22 | X046F6151Z | 1 | 1 | * | * | Pin - Tension | |||||||
| FA 23 | A065F6001Z | 1 | 1 | * | * | Ball Joint | |||||||
| 121 | 1 | 1 | * | * | Washer - Ball Joint to Link | ||||||||
| 216 | 1 | 1 | * | * | Nut - Ball Joint to Link | ||||||||
| FA 24 | A065F0170Z | 2 | 2 | * | * | Spacer | |||||||
| 26 | 1 | 1 | * | * | Bolt - Ball Joint to Actuator | ||||||||
| 215 | 1 | 1 | * | * | Nut - Ball Joint to Actuator |
