LOTUS EUROPA TC/TCS PARTS MANUAL

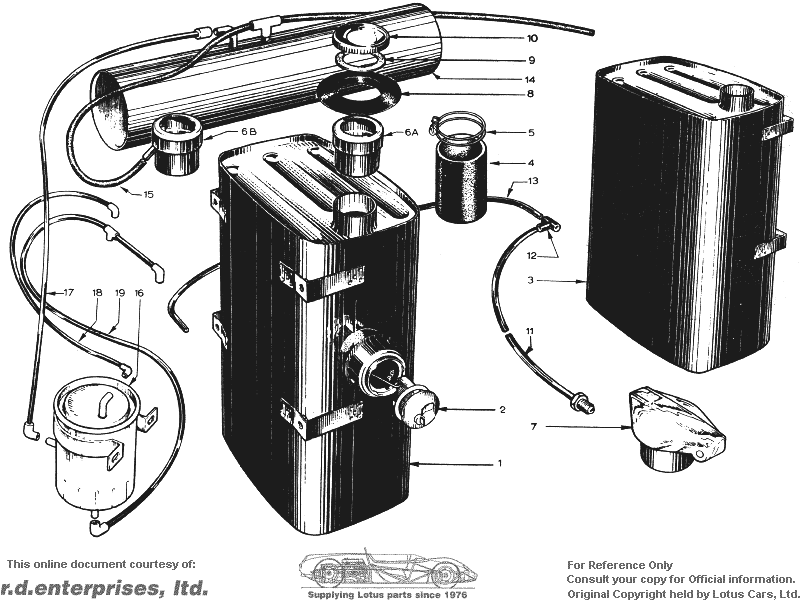

Section LA -- Fuel System -- Fuel Tanks and Hoses


Item
Lotus #
Description
Change Point
Notes
Bulletin Reference
LA 1D074L0014W1111L/H Fuel Tank - c/w Contents Transmitter
LA 2A074L6000Z1111Fuel Content Transmitter
X050L6001Z1111Contents Transmitter Gasket
LA 3D074L0015W1111R/H Fuel Tank
LA 4A046L0003Z2222Hose - Filler Neck to Tank
LA 5X054K6000Z4444Hose Clip - Hose Clamp
LA 6AA074L0719W2**Assembly - Filler Neck
LA 6BA074L0705Z2Assembly - Filler Neck
LA 7A074L0721Z2**Assembly - Filler Neck. C/w Flip Top Fuel Filler Cap
A074L0720Z2Assembly - Filler Neck. C/w Flip Top Fuel Filler Cap
LA 8X046L6001Z2222Gromet - Filler Nect
LA 9X046L6005Z22**Seal - Filler Cap
LA 10X046L6002Z22**Fuel Filler Cap
LA 11A074L0087Z11**Pipe - T Piece to Fuel Pump
LA 12X026S0132Z11**T Piece
LA 13A074L0086Z11**Pipe - Tank to T Piece
X036B6010Z22**Gromet - Tank Pipe
LA 14A074L0717W11Assembly - Catch tank
X036L6017Z11T Piece
LA 15A074L0089Z11Pipe - L/H Fuel Tank to Catch Tank
A074L0090Z11Pipe - R/H Fuel Tank to Catch Tank
LA 16A036L0046Z11Cannister - Charcoal
LA 17A074L0091Z11Pipe - Cannister to Catch Tank
X036J0735Z11Connector - Elbow
LA 18A074L0092Z11Pipe - Cannister to Air Box
X036J0735Z11Connector - Elbow
LA 19A074L0088Z11Pipe - Cannister to Carburetters
