 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||

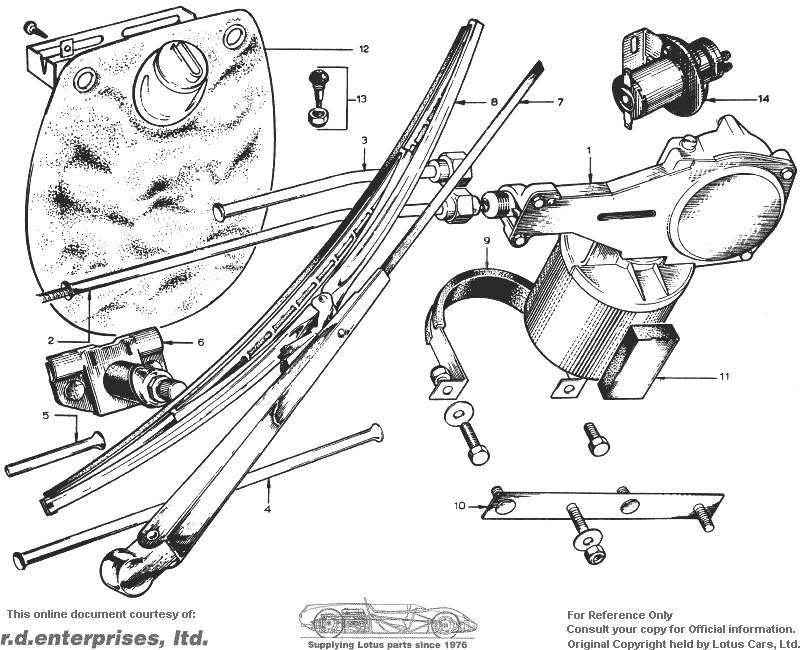

| MG 1 | X054M6041W | 1 | 1 | * | * | Motor - Windscreen Wiper | |||||||
| X054M6042W | 1 | 1 | Motor - Windscreen Wiper | ||||||||||
| MG 2 | X054M0003Z | 1 | 1 | * | * | Bundy - Motor to Wheelbox | |||||||
| MG 3 | A054M0010Z | 1 | 1 | Bundy - Motor to Wheelbox | |||||||||
| MG 4 | A054M0011Z | 1 | 1 | Bundy - Wheelbox to Wheelbox | |||||||||
| MG 5 | X026M0012Z | 1 | 1 | 1 | 1 | Bundy - Over-run | |||||||
| MG 6 | X036M6151W | 1 | 1 | * | * | Assembly - Wheelbox | |||||||
| X054M6056W | 2 | 2 | Assembly - Wheelbox | ||||||||||
| MG 7 | X046M6177Z | 1 | 1 | * | * | Wiper Arm | |||||||
| X054M6036Z | 2 | 2 | Arm - Wiper | ||||||||||
| MG 8 | A054M6090Z | 1 | 1 | * | * | Blade - Wiper | |||||||
| X054M6037Z | 2 | 2 | Blade - Wiper | ||||||||||
| MG 9 | X046M6151Z | 1 | 1 | 1 | 1 | Motor Mounting Clamp | |||||||
| MG 10 | X054M1677Z | 1 | 1 | Bracket - Motor Mounting | |||||||||
| 1 | 1 | 1 | * | * | Bolt - Clamp Securing - Bracket - Motor Mounting | ||||||||
| 3C | 1 | 1 | * | * | Bolt - Clamp Securing - Bracket - Motor Mounting | ||||||||
| 113 | 2 | 2 | * | * | Washer - Plain - Bracket - Motor Mounting | ||||||||
| 208 | 2 | 2 | 2 | 2 | Nut - Bracket - Motor Mounting | ||||||||
| 110 | 2 | 2 | 2 | 2 | Washer - Bulkhead to Bulkhead - Bracket - Motor Mounting | ||||||||
| 208 | 2 | 2 | 2 | 2 | Nut - Bulkhead to Bulkhead Securing - Bracket - Motor Mounting | ||||||||
| MG 11 | X046M6152Z | 1 | 1 | 1 | 1 | Mounting Pad | |||||||
| MG 12 | A036B6160Z | 1 | 1 | 1 | 1 | Bag - Washer | |||||||
| A036B6162Z | 1 | 1 | 1 | 1 | Bracket - Bag Mounting | ||||||||
| MG 13 | A050M6198Z | 1 | 1 | * | * | Jet - Washer | |||||||
| A036M6427Z | 2 | 2 | Jet - Washer | ||||||||||
| X050M6053Z | 1 | 1 | T Piece | ||||||||||
| MG 14 | A036M6421Z | 1 | Pump - Washer | ||||||||||
| A036B6173Z | 1 | 1 | 1 | 1 | Tube - Bag to Pump | ||||||||
| A054M6057Z | 1 | 1 | 1 | 1 | Tube - Pump to Jet |
