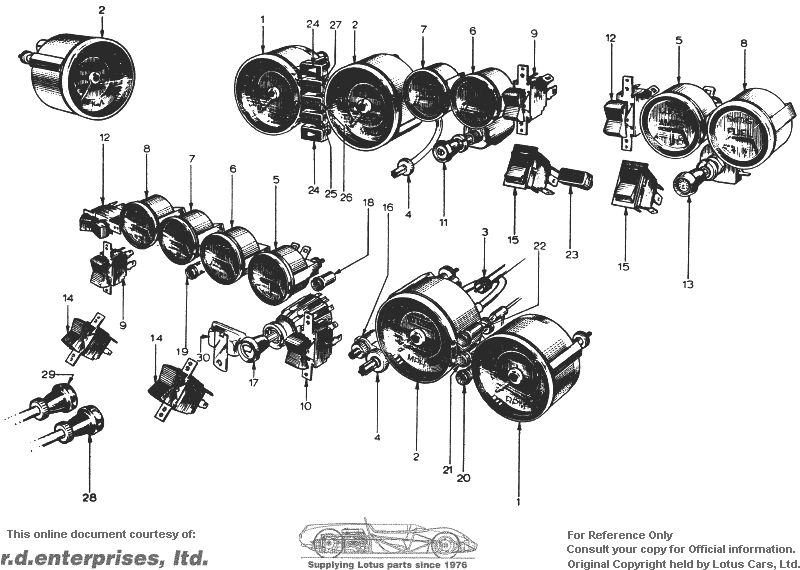

 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| MD 1 | X054N6001Z | Tachometer | |||||||||||
| A074N6004Z | 1 | 1 | * | * | Tachometer | ||||||||
| MD 2 | X054N6002Z | 1 | 1 | Speedometer - m.p.h (Vehicles with Type 336 Gearboxes) | |||||||||
| X054N6003Z | 1 | * | Speedometer - k.p.h (Vehicles with Type 336 Gearboxes) | ||||||||||
| A074N6002Z | 1 | 1 | 1 | 1 | Speedometer - m.p.h (Vehicles with Type 352/365 Gearboxes) | ||||||||
| A074N6003Z | 1 | 1 | * | Speedometer - k.p.h (Vehicles with Type 352/365 Gearboxes) | |||||||||
| MD 3 | X046N6007Z | 1 | 1 | * | * | Speedometer Cable (Vehicles with Type 336 Gearboxes) | |||||||
| A074N6001Z | 1 | 1 | 1 | 1 | Speedometer Cable (Vehicles with Type 352/365 Gearboxes) | ||||||||
| MD 4 | X054N6009Z | 1 | 1 | 1 | 1 | Speedometer Trip Cable | |||||||
| A054B1463Z | 1 | Bracket - Cable Securing | |||||||||||
| MD 5 | A054M6062Z | 1 | 1 | 1 | 1 | Ammeter, Amp Gauge | |||||||
| MD 6 | A074N6000Z | 1 | 1 | 1 | 1 | Oil Pressure Gauge | |||||||
| A065N0024Z | 1 | 1 | 1 | 1 | Oil Pressure Pipe | ||||||||
| A050N0027Z | 1 | 1 | 1 | 1 | Adaptor - Oil Pipe to Block | ||||||||
| MD 7 | X054N6005Z | 1 | 1 | 1 | 1 | Gauge - Water temperature | |||||||
| MD 8 | X054N6007Z | 1 | 1 | 1 | 1 | Gauge - Fuel | |||||||
| MD 9 | X054M6002Z | 1 | 1 | 1 | 1 | Switch - Heater Fan | |||||||
| MD 10 | X054M6002Z | 1 | 1 | 1 | * | * | Switch - Side.Head Lamps | ||||||
| MD 11 | A050M0227Z | 1 | Switch - Side.Head Lamps | ||||||||||
| MD 12 | X036M6094Z | 1 | 1 | * | Switch - Panel Lamps | ||||||||
| X050M6091Z | 1 | 1 | * | Switch - Hazard | |||||||||
| A036M6336Z | 1 | 1 | Switch - Hazard | ||||||||||
| MD 13 | A074M6021Z | 1 | Switch. Dimmer - Panel Lamps | ||||||||||
| A074M0227Z | 1 | Knob - Dimmer Switch | |||||||||||
| MD 14 | X036M8290Z | 2 | * | * | Switch - Window Operating | ||||||||
| A054B1465M | 2 | * | * | Bezel - Switch (for X036M6290Z) | |||||||||
| A054B1462Z | 1 | * | * | Bracket - Switch Mounting (for X036M6290Z) | |||||||||
| MD 15 | A074M6012Z | 2 | 2 | 2 | 2 | Switch - Window Operating (smap-in type) | |||||||
| MD 16 | X036M6089Z | 1 | Switch - Brake Fail Lamp Test | ||||||||||
| A054B1539Z | 1 | Bracket - Switch Mounting | |||||||||||
| MD 17 | X050N6000Z | 1 | 1 | 1 | * | * | Switch - Wiper/Washer Pump | ||||||
| MD 18 | X036M6277Z | 1 | 1 | * | Lamp - Hazard Warning | ||||||||
| B050M0151Z | 1 | Lamp - Hazard Warning | |||||||||||
| MD 19 | X036M6277Z | 1 | Lamp - Brake Fail Warning | ||||||||||
| MD 20 | X036M6277Z | 1 | 1 | 1 | * | * | Lamp - Ignition Warning | ||||||
| MD 21 | X036M6279Z | 1 | 1 | 1 | * | * | Lamp - Main Beam | ||||||
| MD 22 | X036M6278Z | 1 | 1 | 1 | * | * | Lamp - Directional Indicator | ||||||
| MD 23 | A074M6013Z | 1 | 1 | Lamp - Seat Belt Warning | |||||||||
| MD 24 | A075H0114Z | 2 | Lamp - Directional Indicator | ||||||||||
| MD 25 | A075M6054Z | 1 | Lamp - Main Beam | ||||||||||
| MD 26 | A075M6055Z | 1 | Lamp - Ignition Warning | ||||||||||
| MD 27 | A075M6056Z | 1 | Lamp - Brake Warning | ||||||||||
| MD 28 | A074E0294Z | 1 | 1 | * | * | Cable - Choke | |||||||
| A074E0475Z | 1 | 1 | Cable - Choke | ||||||||||
| MD 29 | C074P0075Z | 1 | 1 | 1 | 1 | Heater Cable | |||||||
| MD 30 | X050M6096Z | 1 | 1 | 1 | 1 | Instrument Stabilizer | |||||||
| A074M6016Z | AR | AR | AR | AR | Washer - Warning Lamp Locking (where fitted) | ||||||||
| X036M6291Z | AR | AR | AR | AR | Bulb (987) - Instrument | ||||||||
| X036M6130Z | AR | AR | AR | AR | Bulb (281) - Warning Lamp |
