 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||

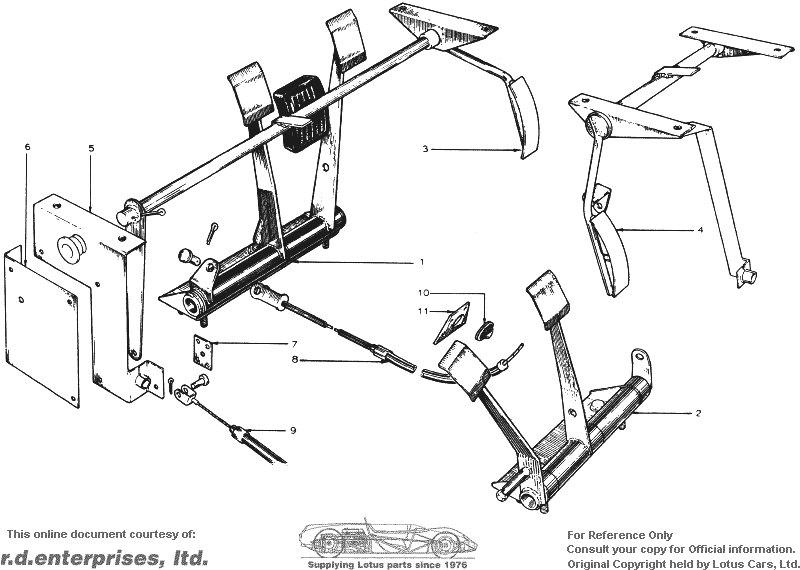

| JE 1 | D074J0746Z | 1 | 1 | * | Assembly - Brake and Clutch Pedal | ||||||||
| JE 2 | A074J0203W | 1 | 1 | 1 | 1 | * | Assembly - Brake and Clutch Pedal | ||||||
| JE 3 | B074J0185Z | 1 | 1 | * | Assembly - Throttle Pedal | ||||||||
| JE 4 | A074J0205Z | 1 | 1 | 1 | 1 | * | Assembly - Throttle Pedal | ||||||
| JE 5 | A074J0196Z | 1 | 1 | * | Abutment - Throttle Cable | ||||||||
| JE 6 | A074J0198Z | 1 | 1 | * | Plate - Cable Abutment Cover | ||||||||
| JE 7 | A074J0200Z | 1 | 1 | * | Plate - Backing | ||||||||
| JE 8 | D074Q0037W | 1 | 1 | * | Cable - Clutch | ||||||||
| D074Q0040W | 1 | 1 | 1 | 1 | * | Cable - Clutch | |||||||
| W0084 | 1 | 1 | Pin - Clevis - Cable - Clutch | ||||||||||
| W0086 | 1 | 1 | Pin - Split - Cable - Clutch | ||||||||||
| JE 9 | B074E0147Z | 1 | 1 | * | Cable - Throttle (Dellorto Carbs) | ||||||||
| D074E0149Z | 1 | 1 | * | Cable - Throttle (Dellorto Carbs) | |||||||||
| C074E0148Z | 1 | 1 | Cable - Throttle (Stromberg Carbs) | ||||||||||
| W0084 | 1 | 1 | 1 | 1 | Pin - Clevis - Cable - Throttle | ||||||||
| W0086 | 1 | 1 | 1 | 1 | Pin - Split - Cable - Throttle | ||||||||
| A074E0464Z | 1 | 1 | * | * | Spring - Throttle Return | ||||||||
| A026S0028Z | 1 | 1 | Spring - Throttle Return | ||||||||||
| JE 10 | X050B6158Z | 2 | 2 | * | Gromet - Throttle/Clutch Cable - Bulkhead | ||||||||
| X050B6158Z | 1 | 1 | 1 | 1 | * | Gromet - Throttle/Clutch Cable - Bulkhead | |||||||
| JE 11 | A074Q0042Z | 2 | 2 | * | Plate - Gromet | ||||||||
| A074Q0042Z | 1 | 1 | 1 | 1 | * | Plate - Gromet |
