 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||

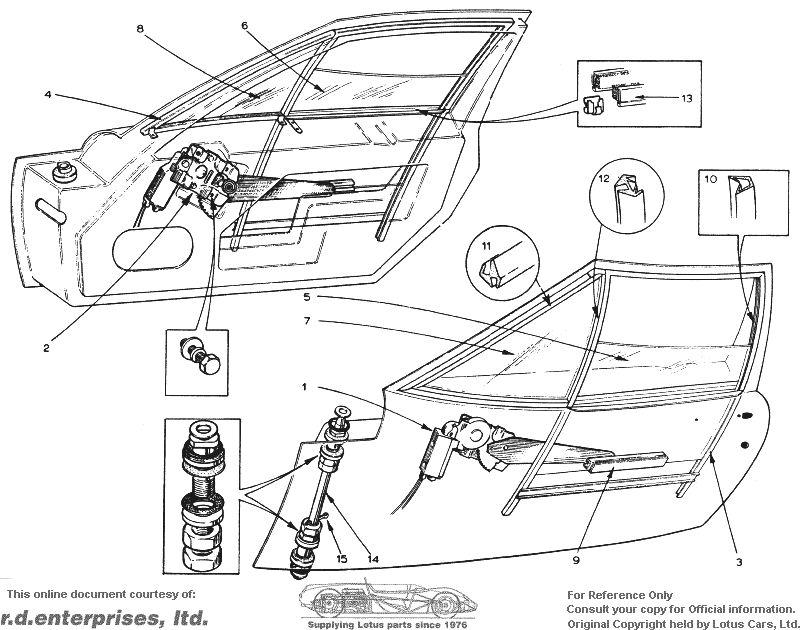

| BC 1 | X054B1495S | 1 | 1 | 1 | 1 | Window Lift Motor - LH | |||||||
| BC 2 | X054B1496S | 1 | 1 | 1 | 1 | Window Lift Motor - RH | |||||||
| XUFB0418 | 8 | 8 | 8 | 8 | Bolt - Motor to Door | ||||||||
| 113 | 8 | 8 | 8 | 8 | Washer - Motor to Door | ||||||||
| 108 | 8 | 8 | 8 | 8 | Washer - Shakeproof - Motor to Door | ||||||||
| BC 3 | X054B0791W | 1 | 1 | 1 | 1 | Frame - Wiindow L/H | |||||||
| X054B0792W | 1 | 1 | 1 | 1 | Frame - Window R/H | ||||||||
| BC 4 | X054B0790W | 1 | 1 | 1 | 1 | Frame - Quarter Light R/H | |||||||
| X054B0789W | 1 | 1 | 1 | 1 | Frame - Quarter Light L/H | ||||||||
| 434 | 14 | 14 | 14 | 14 | Rivet - Frame Securing | ||||||||
| 305B | 4 | 4 | 4 | 4 | Screw - Frame Securing | ||||||||
| 100 | 4 | 4 | 4 | 4 | Washer - Frame Securing | ||||||||
| 207 | 4 | 4 | 4 | 4 | Nut - Frame Securing | ||||||||
| BC 5 | X054B0667Z | 1 | 1 | 1 | 1 | Glass - L/H Side Window | |||||||
| X054B0667A | 1 | 1 | 1 | 1 | Glass - L/H Side Window - Shaded (Optional) | ||||||||
| A036B6213V | 1 | 1 | 1 | 1 | Seal - Window | ||||||||
| BC 6 | X054B668Z | 1 | 1 | 1 | 1 | Glass - LRH Side Window | |||||||
| X054B668A | 1 | 1 | 1 | 1 | Glass - R/H Side Window - Shaded (Optional) | ||||||||
| X036B6213V | 1 | 1 | 1 | 1 | Seal - Window | ||||||||
| BC 7 | X054B669A | 1 | 1 | 1 | 1 | Glass - L/H Quarter Light | |||||||
| B054B0669Z | 1 | 1 | 1 | 1 | Glass - L/H Quarter Light - Shaded (Optional) | ||||||||
| BC 8 | X054B0670A | 1 | 1 | 1 | 1 | Glass - R/H Quarter Light | |||||||
| B054B0670Z | 1 | 1 | 1 | 1 | Glass - R/H Quarter Light - Shaded (Optional) | ||||||||
| BC 9 | X054B0091Z | 2 | 2 | 2 | 2 | Channel - Window Operating | |||||||
| X054B6108Z | 2 | 2 | 2 | 2 | Strip - Channel Seal | ||||||||
| BC 10 | X054B6023Z | 2 | 2 | 2 | 2 | Channel - Side Window | |||||||
| BC 11 | A054B1929Z | 2 | 2 | 2 | 2 | Seal - Quarter Light - Front and Base | |||||||
| BC 12 | A054B1928Z | 2 | 2 | 2 | 2 | Seal - Quarter Light - Dividing Channel | |||||||
| BC 13 | X036B6061Z | 4 | 4 | 4 | 4 | Seal - Side Window | |||||||
| 417 | 16 | 16 | 16 | 16 | Clip - Seal - Side Window | ||||||||
| BC 14 | X046B0073Z | 2 | 2 | 2 | 2 | Pintle - Door Hinge | |||||||
| A054B2000Z | 4 | 4 | 4 | 4 | Bush - Door Hinge | ||||||||
| X046B6024Z | 4 | 4 | 4 | 4 | O Ring - Door Hinge | ||||||||
| 220A | 8 | 8 | 8 | 8 | Nut - Door Hinge | ||||||||
| 128D | 8 | 8 | 8 | 8 | Washer - Door Hinge | ||||||||
| 128CA | Washer - Door Hinge (As Required) | ||||||||||||
| W015 | 12 | 12 | 12 | 12 | Washer - Abraisive - Door Hinge | ||||||||
| BC 15 | 412C | 2 | 2 | 2 | 2 | Pin - Split - Door Hinge |
