LOTUS EUROPA TC/TCS PARTS MANUAL

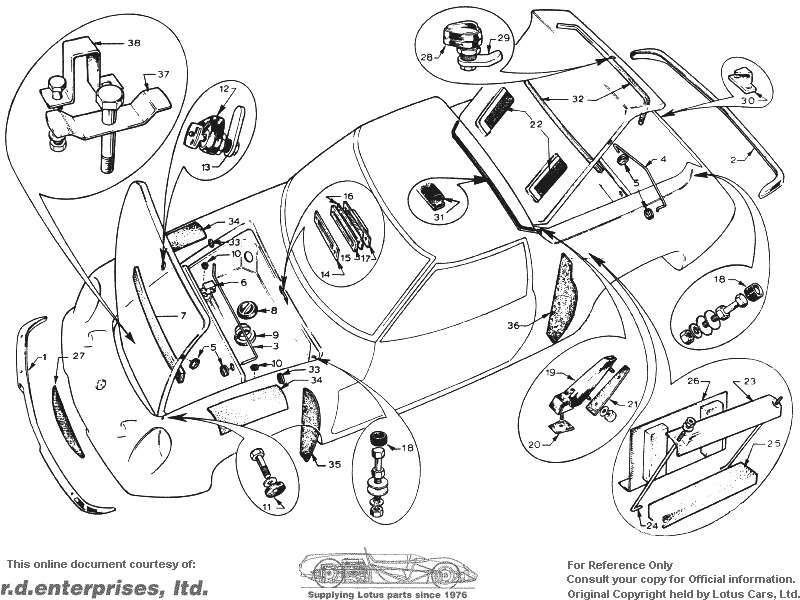

Section BB -- Body -- Attachments

Item	Lotus #											Description	Change Point Notes Bulletin Reference
BB 1	X046B6011Z					1	1	1	1			Front Bumper
BB 2	X046B6012Z					1	1	1	1			Rear Bumper
	436B					2	2	2	2			Rivet - Blanking - Bumper
	453A					8	8	8	8			Bumper Bolt - Bumper Mounting
	116AA					8	8	8	8			Fibre Washer - Bumper Mounting
	118					8	8	8	8			Washer - Plain - Bumper Mounting
	AA4					8	8	8	8			Washer - Spring - Bumper Mounting
	214A					8	8	8	8			Nut - Bumper Mounting
BB 3	X054B1535Z					1	1	1	1			Stay - Bonnet Lid
BB 4	X046B1131Z					1	1	1	1			Stay - Engine Compartment Lid
BB 5	X036B6010Z					4	4	4	4			Gromet - Stay Pivot
BB 6	X0541673Z					2	2	2	2			Clip - Stay Pivot
BB 7	X054B1652Z					1	1	1	1			Strip - Foam - Bonnet Lid
BB 8	X026B0371Z					1	1	1	1			Gromet - Handbrake Fixing Access
BB 9	X036K0068Z					1	1	1	1			Seal - Handbrake Access Aperature
BB 10	A054J6005Z					2	2	2	2			Gromet - Body Attaching Bolt Access
BB 11	148					2	2	2	2			Bolt - Bonnet Securing
	X054B6107Z					2	2	2	2			Rubber Washer - Bonnet Fixing	1" OD x 11/32" ID x 1/8" Thick
	118					2	2	2	2			Washer - Bonnet Securing
BB 12	X046B6112Z					1	1	1	1			Lock - Bonnet
BB 13	X046B1362Z					1	1	1	1			Tab - Bonnet Lock
BB 14	A046B1368Z					1	1	1	1			Plate - Strike - Bonnet Lock
BB 15	A074U0057Z					1	1	1	1			Packing - Bonnet Lock
BB 16	A074B2109Z					1	1	1	1			Seal - Bonnet Lock
BB 17	D074B1368Z					1	1	1	1			Plate - Locking - Bonnet Lock
	337					2	2	2	2			Screw - Securing - Plate - Locking - Bonnet Lock
BB 18	X046B6113Z					4	4	4	4			Buffer - Bonnet and Engine Compartment Lid
	13C					2	2	2	2			Bolt - Bonnet Buffer
	14A					2	2	2	2			Bolt - Engine Compartment Lid Buffer
	119					8	8	8	8			Washer - Plain - Engine Compartment Lid Buffer
	116					4	4	4	4			Washer - Shakeproof - Engine Compartment Lid Buffer
	209A					4	4	4	4			Nut - Engine Compartment Lid Buffer
BB 19	X036B6006Z					2	2	2	2			Hinge - Engine Compartment
BB 20	A036B1111Z					2	2	2	2			Engine Compartment Lid Hinge Front Gasket
BB 21	A036B1112Z					2	2	2	2			Engine Compartment Lid Hinge Rear Gasket
	113					4	4	4	4			Washer - Hinge to Lid
21	206					4	4	4	4			Nut - Hinge to Lid
	119					2	2	2	2			Washer - Hinge to Body
	210A					2	2	2	2			Nut - Hinge to Body
BB 22	A074U0011Z					2	2	2	2			Grille - Engine Compartment Lid
	316B					8	8	8	8			Screw - Grille Securing
	422					8	8	8	8			Nut - Grille Securing
BB 23	A074U0014Z					1	1	1	1			Clamp - Battery
BB 24	C074U0015Z					2	2	2	2			Rod - Battery Clamp
BB 25	A054B6111V											Strip - Rubber (As Required)
BB 26	A074B0026Z					1	1	1	1			Shield - Battery Heat
BB 27	X046B0272Z					1	1	1	1			Grille - Front
	RSTS0808					8	8	8	8			Screw - Grille Securing
	421					8	8	8	8			Nut - Grille Securing
	102					8	8	8	8			Washer - Grille Securing
BB 28	X046B6112Z					1	1	1	1			Lock - Engine Compartment Lid
BB 29	X046B1367Z					1	1	1	1			Tab - Lock
BB 30	X046B1366Z					1	1	1	1			Plate - Latch
	318B ?					2	2	2	2			Screw - Plate Securing
	102					2	2	2	2			Washer - Plate Securing
	423					2	2	2	2			Nut - Plate Securing
BB 31	A074V6006V					1	1	1	1			Seal - Engine Compartment
BB 32	X046B1289Z					2	2	2	2			Strip - Foam - Engine Compartment Lid
BB 33	X026B0731Z					2	2	2	2			Gromet - Upper Wishbone Access
BB 34	A036V0083V					2	2	2	2			Guard - Stone
BB 35	X054B1271Z					2	2	2	2			Plate - Closing - Front Wheel Arch
BB 36	X054B1272Z					2	2	2	2			Plate - Closing - Rear Wheel Arch
	434					24	24	24	24			Rivet - Plate Securing
	100					48	48	48	48			Washer - Plate Securing
BB 37	X036B0599Z					1	1	1	1			Clamp - Spare Wheel (Steel Wheel Only)
BB 38	A074U0028Z					1	1	1	1			Bracket - Wheel Support (Steel Wheel Only)
	4__					2	2	2	2			Bolt - Bracket Securing
	110					2	2	2	2			Washer - Bracket Securing
	208					2	2	2	2			Nut - Bracket Securing
	125					1	1	1	1			Washer - Spare Wheel Securing (Alloy Wheel Only)
	30A					1	1	1	1			Bolt - Spare Wheel Securing (All)
