 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||

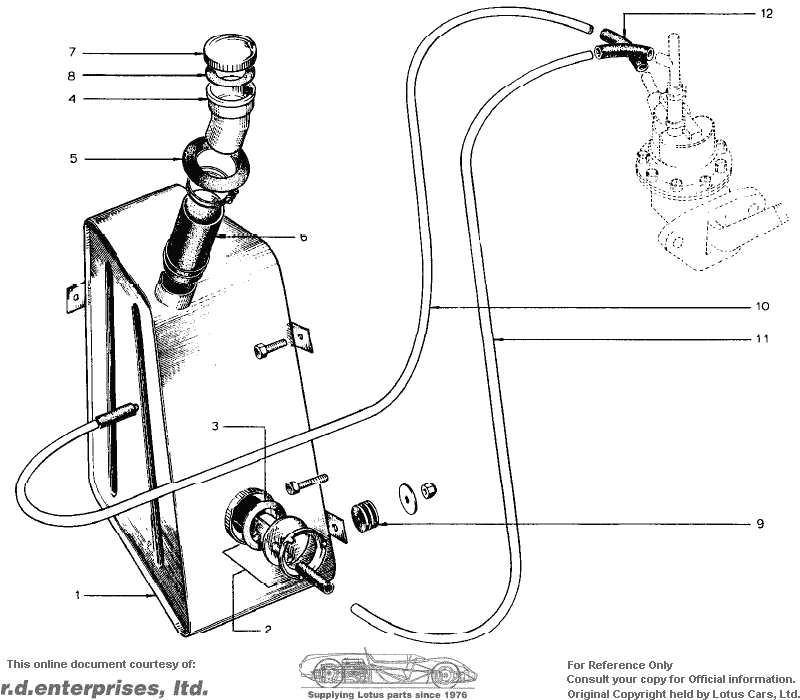

| 046L0014 | 1 | 1 | Fuel Tank | ||||||||||
| 1 | 054L0015 | 1 | 1 | Fuel Tank | |||||||||
| 046L6000 | 1 | 1 | Fuel Level Transmitter | ||||||||||
| 2 | 046L6008 | 1 | 1 | Fuel Level Transmitter | |||||||||
| 3 | 046L6004 | 1 | 1 | 1 | 1 | Fuel Level Transmitter Gasket | |||||||
| 046L0705 | 1 | 1 | Filler Neck | ||||||||||
| 4 | 054L0705 | 1 | 1 | Filler Neck | |||||||||
| 5 | 046L6001 | 1 | 1 | 1 | 1 | Gromet - Filler Neck | |||||||
| 6 | 046L0003 | 1 | 1 | 1 | 1 | Hose - Filler Neck to Tank | |||||||
| 046L6003 | 2 | 2 | 2 | 2 | Clip - Filler Neck Hose | ||||||||
| 7 | 046L6002 | 1 | 1 | 1 | 1 | Fuel Filler Cap | |||||||
| 8 | 046L6005 | 1 | 1 | 1 | 1 | Seal Ring - Fuel Filler Cap | |||||||
| 054B6109 | Replaced by A036L6019 | ||||||||||||
| 9 | A03L6019 | 6 | 6 | Rubber Washer - Fuel Tank Mounting | |||||||||
| YUFN050F | 2 | 2 | Nut - Fuel Tank Mounting | ||||||||||
| A05W1606 | 2 | 2 | Washer - Fuel Tank Mounting | 3/32" thick, 7/8" OD, 13/32" ID | |||||||||
| XUFS0310 | 1 | 1 | Screw - Fuel Tank Mounting - Rear Lug | ||||||||||
| A03W1606 | 1 | 1 | Washer - Fuel Tank Mounting - Rear Lug | ||||||||||
| YUFN030F | 1 | 1 | Nut - Fuel Tank Mounting - Rear Lug | ||||||||||
| XUFS0316 | 2 | 2 | Screw - Fuel Tank Mounting - top | ||||||||||
| A03W1606 | 1 | 1 | Washer - Fuel Tank Mounting - top | ||||||||||
| YUFN030F | 1 | 1 | Nut - Fuel Tank Mounting - top | ||||||||||
| XUFS0310 | 1 | 1 | Screw - Fuel Tank Mounting Center Side Lug | ||||||||||
| A03W1606 | 1 | 1 | Washer - Fuel Tank Mounting Center Side Lug | ||||||||||
| YUFN030F | 1 | 1 | Nut - Fuel Tank Mounting Center Side Lug | ||||||||||
| 046L2000 | 1 | 1 | Fuel Line - Feed | ||||||||||
| 10 | 054L2000 | 1 | 1 | Fuel Line - Feed | |||||||||
| 046L2001 | 1 | 1 | Fuel Line - Return | ||||||||||
| 11 | 054L2001 | 1 | 1 | Fuel Line - Return | |||||||||
| 12 | 046L6343 | 4 | 4 | 4 | 4 | Sleeve - Fuel Line Connections |
