LOTUS EUROPA S1/S2 COMBINED PARTS MANUAL

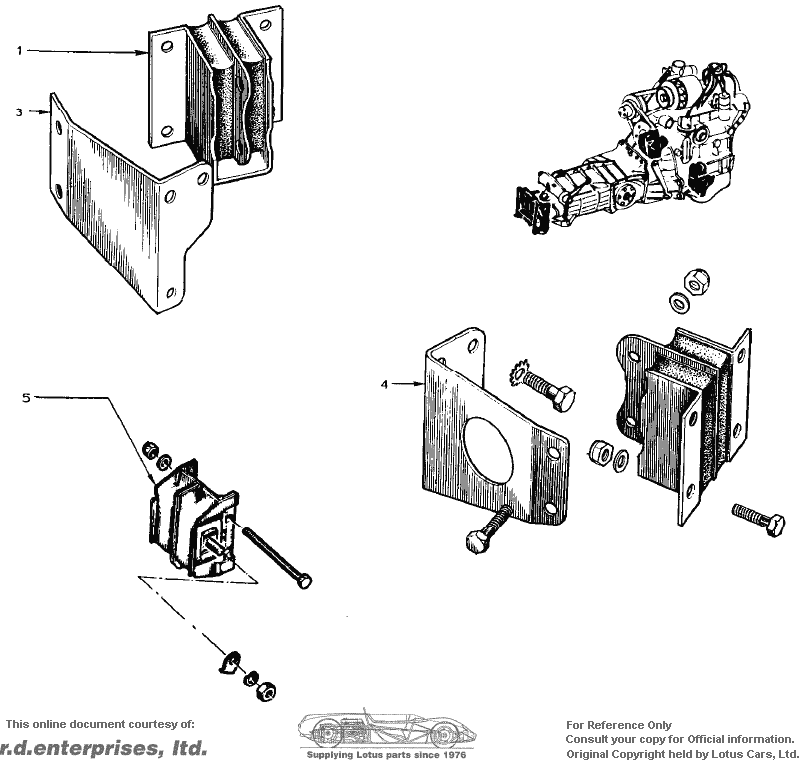

Section ET -- Engine -- Engine Mounting


Item
Lotus #
Description
Change Point
Notes
Bulletin Reference
1 026E03742 2 2 2             Engine Mounting - replaced by 054E6000 SB - Service III 1969/27
 054E60002 2 2 2             Engine mounting
 XUFS06124 4 4 4             Bolt - Engine mounting to bracket
 YUFN060F4 4 4 4             Nut - Engine mounting to bracket
 A06W12074 4 4 4             Washer - Engine mounting to bracket
 XUFS05128 8 8 8             Bolt - Engine mounting to chassis 3/4" long, all thread, 5/16" x 24 TPI, 1/2" head
 YUFN050F8 8 8 8             Nut - Engine mounting to chassis
 A05W10078 8 8 8             Washer - Engine mounting to chassis 1/16" thick, 5/8" OD and 9/32" ID
3 046E03771 1 1 1             Mounting Bracket LH
4 046E03781 1 1 1             Mounting Bracket RH
 046E64604 4 4 4             Bolt - Upper 8 x 25 mm. - Mounting bracket to engine
 046E64612 2 2 2             Bolt - Lower 10 x 30 mm. - Mounting bracket to engine
 A046W61144 4 4 4             Washer - 8 mm. - Mounting bracket to engine
 046E64562 2 2 2             Washer - 10 mm. - Mounting bracket to engine
5 046F61461 1 1               Gear Box Mounting (697-04) From Eng. No. ?
 046F61951 1 1               Gear Box Mounting (697-04) From Eng. No. ?
 046F6195      1             Gear Box Mounting (821-30) From Eng. No. 001
 046E64622 2 2 2             Bolt - 8 x 100 mm. - gear box mounting to gear box
 A046W61052 2 2 2             Nut - 8 x 100 mm. - gear box mounting to gear box
 A046W60022 2 2 2             Washer - 8 x 100 mm. - gear box mounting to gear box
