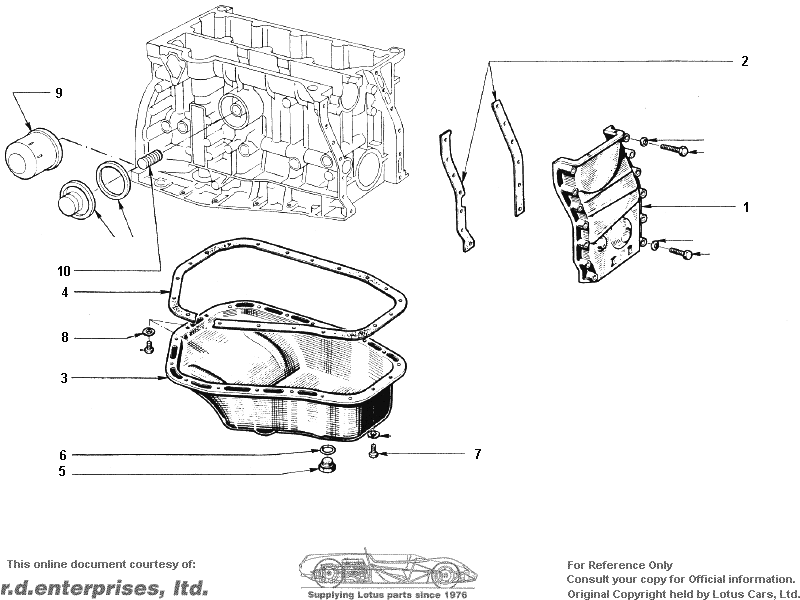

 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 1 | 046E6056 | 1 | 1 | 1 | Timing Cover (R9210) | ||||||||
| A054E6052 | 1 | Timing Cover (R9211) | |||||||||||
| A054E6053 | 10 | 10 | 10 | Timing Cover to Cylinder Block Bolt | |||||||||
| A054E6054 | 13 | Timing Cover to Cylinder Block Bolt | |||||||||||
| A054E6055 | 3 | 3 | 3 | Timing Cover to Cylinder Block Bolt | |||||||||
| A046W6047 | 13 | 13 | 13 | 13 | Timing Cover to Cylinder Block Washer | ||||||||
| 2 | 046E6055 | 1 | 1 | 1 | 1 | Timing Cover Gasket (pair) | |||||||
| A046E6055 | 1 | 1 | 1 | 1 | Timing Cover Gasket (pair) | ||||||||
| 3 | 046E6049 | 1 | 1 | 1 | 1 | Oil Sump | |||||||
| 4 | 046E6047 | 1 | 1 | 1 | 1 | Oil Sump Gasket | |||||||
| 5 | A046E6051 | 1 | 1 | 1 | 1 | Oil Sump Drain Plug | |||||||
| 6 | 046E6050 | 1 | 1 | 1 | 1 | Oil Sump Drain Plug Sealing Ring | |||||||
| 7 | A046W6000 | 20 | 20 | 20 | 20 | Oil Sump to Cylinder Block Bolt | |||||||
| 8 | 046E6048 | 20 | 20 | 20 | 20 | Oil Sump to Cylinder Block Lock Washer | |||||||
| 9 | 046E6052 | 1 | 1 | 1 | 1 | Oil Filter Element, Optional | |||||||
| 046E6053 | 1 | 1 | 1 | 1 | Oil Filter Element, Optional | ||||||||
| 046E6054 | 1 | 1 | 1 | 1 | Oil Filter Element, Optional | ||||||||
| 10 | A046E6046 | 1 | 1 | 1 | 1 | Adaptor |
