 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||

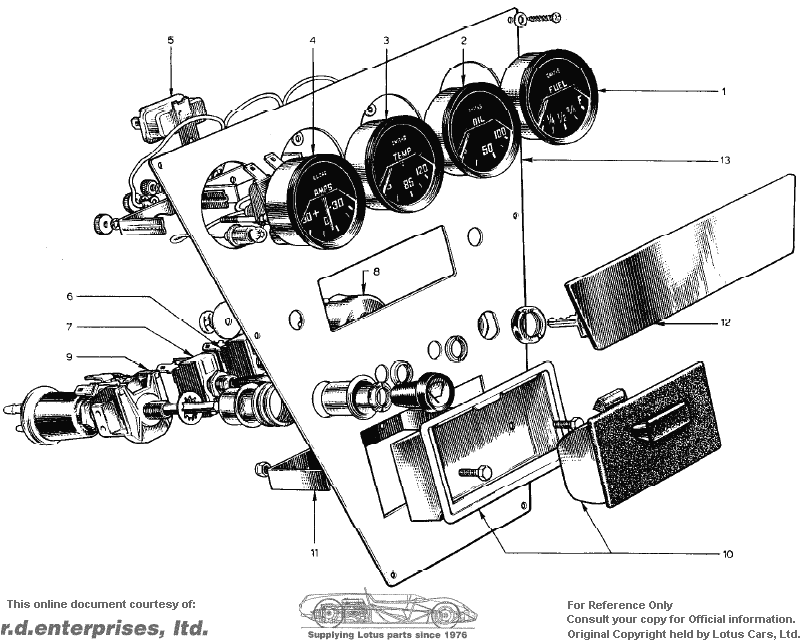

| 1 | 046N6000 | 1 | 1 | Fuel Gauge | |||||||||
| 2 | 046N6001 | 1 | 1 | Oil Pressure Gauge | |||||||||
| 3 | 046N6002 | 1 | 1 | Gauge - Water Temperature | |||||||||
| 4 | 046N6008 | 1 | 1 | Gauge - Ammeter | |||||||||
| 036M6291 (987) | 4 | 4 | Bulb (987) - Instrument 12v 2.2w | ||||||||||
| 5 | 046N6003 | 1 | 1 | Instrument Stabilizer | |||||||||
| 6 | 046M6147 | 1 | 1 | Switch - Heater Fan | |||||||||
| 7 | 046M6146 | 1 | 1 | Switch - Main Lamps | |||||||||
| 8 | 046M6158 | 1 | 1 | Ignition Switch | |||||||||
| 9 | 046M6170 | 1 | 1 | Switch - Wiper/Wash | |||||||||
| 046M6171 | 1 | 1 | Nut - Wiper/Wash Switch to Facia | ||||||||||
| 046M6172 | 1 | 1 | Sleeve - Wiper/Wash Switch to Facia | ||||||||||
| A054M6067 | 1 | 1 | 1 | 1 | Knob - Wiper/Wash Switch to Facia | ||||||||
| 10 | 046B6036 | 1 | 1 | Ashtray | |||||||||
| 046B6014 | 1 | 1 | Ashtray | ||||||||||
| 11 | 046B0560 | 1 | 1 | Mounting Bracket - Ashtray | |||||||||
| PSTS0608 | 2 | 2 | Screw - Ashtray Mounting | ||||||||||
| PSTS0606 | 2 | 2 | Screw - Ashtray Mounting | ||||||||||
| 036B6001 | 2 | 2 | Nut - Ashtray Mounting | ||||||||||
| 054B6115 | 2 | 2 | Nut - Ashtray Mounting | ||||||||||
| 12 | 046B6017 | 1 | 1 | Blanking Panel - Radio | |||||||||
| 13 | 046B1071 | 1 | 1 | Instrument Console | |||||||||
| KSTS0612 | 6 | 6 | Screw - Instrument Console Mounting | ||||||||||
| W0092 | 6 | 6 | Cup Washer - Instrument Console Mounting |
