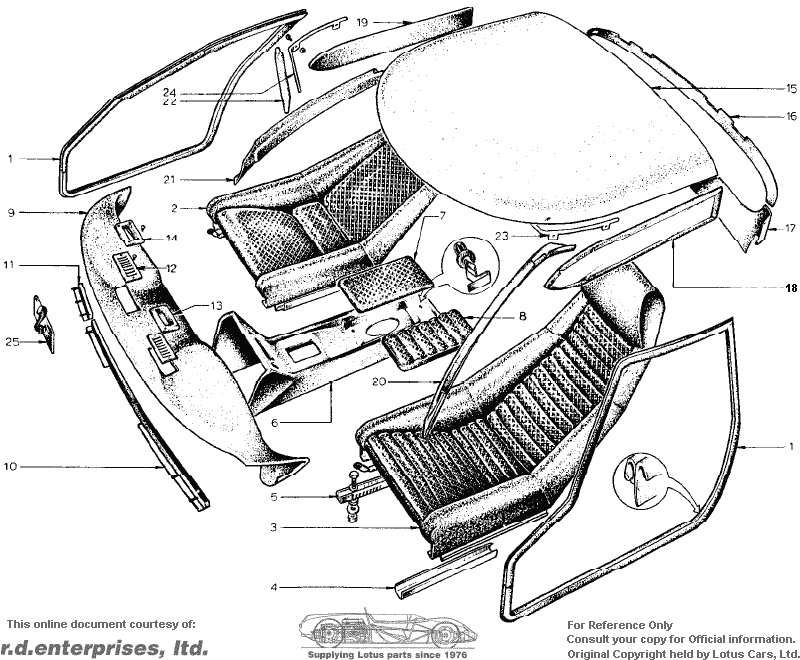

 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 046B6022 | Replaced by 054B1683 | ||||||||||||
| 1 | 054B1683 | 2 | 2 | 2 | 2 | Door Seal | |||||||
| 2 | 046B0135 | 2 | 2 | Seat Cushion and Squab | |||||||||
| 054B1174 | 2 | 2 | Seat Assembly (Cirrus) | ||||||||||
| 3 | A065B1174 | 2 | 2 | Seat Assembly (Ambla) | |||||||||
| 4 | 054B6018 | 2 | 2 | Seat Runner | |||||||||
| 5 | 054B6019 | 2 | 2 | Seat Runner - with catch | |||||||||
| XUFB0510 | 8 | 8 | Bolt - Seat Fixing | ||||||||||
| A05W1007 | 16 | 16 | Washer - Seat Fixing | 1/16" thick, 5/8" OD and 9/32" ID | |||||||||
| YUFN050F | 12 | 12 | Nut - Seat Fixing | ||||||||||
| A05W1606 | 16 | 16 | Washer - Seat Fixing | 3/32" thick, 7/8" OD, 13/32" ID | |||||||||
| XUFB0516 | 8 | 8 | Bolt - Seat Fixing | ||||||||||
| A05W2006 | 8 | 8 | Washer - Seat Fixing | ||||||||||
| 046B0243 | 1 | 1 | Tunnel Cover and Armrest | ||||||||||
| 6 | 054B0243 | 1 | Tunnel Cover | Up to Chassis No. 1329 | |||||||||
| A054B0243 | 1 | 1 | Tunnel Cover | Fron Chassis No. 1390 | |||||||||
| 7 | 054B0811 | 1 | 1 | Armrest (Cirrus) | |||||||||
| 8 | A065B0811 | 1 | 1 | Armrest (Ambla) | |||||||||
| W0010 | 2 | 2 | Clip - Trim Panel Mounting | ||||||||||
| 036B6007 | 2 | 2 | Snap Sac - Trim Panel Mounting | ||||||||||
| 9 | 050B0230 | 1 | 1 | Crash Pad | |||||||||
| 10 | 054B1161 | 1 | 1 | + | Facia Rail - Main | ||||||||
| 054B1162 | 1 | + | Facia Rail - Main | ||||||||||
| 11 | 054B1163 | 1 | 1 | Facia Rail - End | |||||||||
| 054B1164 | 1 | + | Facia Rail - End | ||||||||||
| 12 | 050B6049 ? | 2 | Demist Grille | ||||||||||
| 050B6049 ? | 2 | Demist Grille | Up to Chassis 1463 | ||||||||||
| KSTS0616 | 4 | Screw - Demisting Grille Mounting | |||||||||||
| KSTS0616 | 4 | Screw - Demisting Grille Mounting | |||||||||||
| 036B6001 | 4 | Nut - Demisting Grille Mounting | |||||||||||
| 036B6001 | 4 | Nut - Demisting Grille Mounting | |||||||||||
| 13 | 054P0069 | 1 | Demist Nozzle Bezel LH | ||||||||||
| 14 | 054P0070 | 1 | Demist Nozzle Bezel RH | ||||||||||
| KSTS0416 | 8 | Screw - Bezel to Mounting Bracket | |||||||||||
| W0205 | Headliner replaced by 054B0360 | ||||||||||||
| 15 | 054B0360 | 1 | 1 | 1 | 1 | Headliner | |||||||
| 16 | 054B1443 | 1 | 1 | Rear Window Surround - Upper | |||||||||
| 17 | 054B1484 | 1 | 1 | Rear Window Surround - Lower | |||||||||
| 18 | 054B0717 | 1 | 1 | Cantrail LH | |||||||||
| 19 | 054B0718 | 1 | 1 | Cantrail RH | |||||||||
| 046B0361 | 1 | 1 | Windscreen Pillar Trim LH | ||||||||||
| 20 | 054B0361 | 1 | 1 | Windscreen Pillar Trim LH | |||||||||
| 046B0362 | 1 | 1 | Windscreen Pillar Trim RH | ||||||||||
| 21 | 054B0362 | 1 | 1 | Windscreen Pillar Trim RH | |||||||||
| 054B6049 | Replaced by 054B1720 | ||||||||||||
| 22 | 054B1720 | 2 | 2 | Sun Visor | |||||||||
| 046B1219 | 1 | 1 | Mounting Bracket - Sun Visor | ||||||||||
| 23 | 046B1291 | 1 | 1 | Mounting Bracket - Sun Visor LH | |||||||||
| 046B1220 | 1 | 1 | Mounting Bracket - Sun Visor RH | ||||||||||
| 24 | 046B1292 | 1 | 1 | Mounting Bracket - Sun Visor RH | |||||||||
| PUFS1008 | 2 | 2 | 2 | 2 | Screw - Sun Visor Mounting to Body | ||||||||
| YUFN100F | 2 | 2 | 2 | 2 | Nut - Sun Visor Mounting to Body | ||||||||
| A03W0806 | 4 | 4 | Washer - Sun Visor Mounting to Body | ||||||||||
| A046B6039 | Replaced by 036B6031 | ||||||||||||
| 25 | 036B6031 | 1 | 1 | 1 | 1 | Interior Mirror |
