Elite/Eclat Parts Manual -- Section HA

ELITE/ECLAT PARTS MANUAL

Section HA -- Brakes -- Pedal BOx, Throttle & Clutch Cables

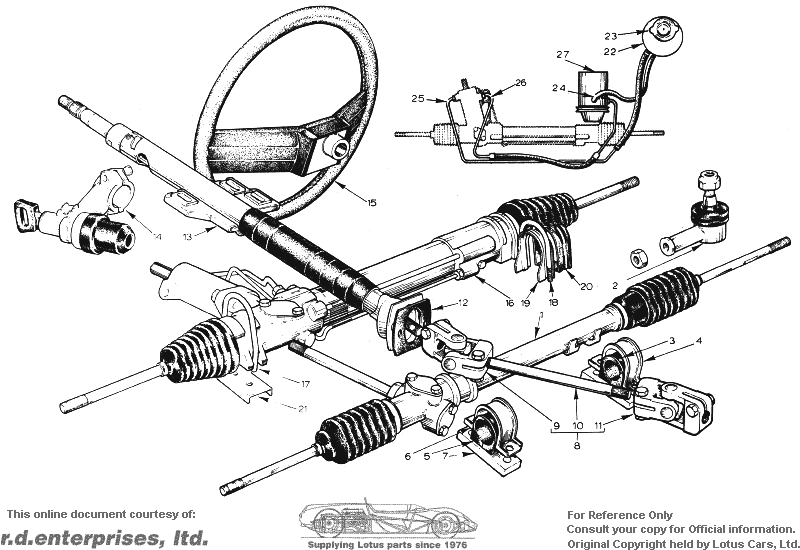

PLATE Ref. No.	DESCRIPTION	PART NO.											REMARKS
HA 1	Steering Rack, Manual, LHD	A075H0121WL	*	*	*	*	*	*			1	1
	Steering Rack, Manual, RHD	A075H0122WE	*	*	*	*	*	*		1
HA 2	Ball Jolnb Rack/Steering Arm, Manual	A075H6001ZH	*	*	*	*	*	*	2
	Ball Joint, Rack/Steerlng Arm, PAS	A075H6012ZH	*	*	*	*	*	*	2
	Locknut	A075W3017ZA	*	*	*	*	*	*	2
HA 3	Rubber Bush, Non Pinion End	A007H4103ZD	*	*	*	*	*	*	1
HA 4	Clamp, Rack Mounting, Non Pinion End	A007H4104ZJ	*	*	*	*	*	*	1
HA 5	Rubber Bushr Pinion End	A007H4106ZH	*	*	*	*	*	*	1
HA 6	Clamp, Rack Mounting, Pinion End	A007H4105ZC	*	*	*	*	*	*	1
HA 7	Spacer	A075H0129ZH	*	*	*	*	*	*	2
	Shim, Spacer to Chassis	A075H0116ZJ	*	*	*	*	*	*	AR
	Screw, M8 x 35	A075H1041ZF	*	*	*	*	*	*	4
	Washer, Spring, 8 mm	A075W4036ZE	*	*	*	*	*	*	4
HA 8	Intermediate Column Assembly, Manual Steering	C075H0117WK	*	*	*	*	*	*	1
	Intermediate Column Assembly, PAS	D075H0118W	*	*	*	*	*	*	1
	Pop Rivet, sealed	A076W6099F	*	*	*	*	*	*	7
	Plug, Pop Rivet	A076W6101F	*	*	*	*	*	*	7
	Grommet, Water Shield	X026B0371Z	*	*	*	*	*	*	1
HA 9	Universal Joint, Upper	B075H6010F	*	*	*	*	*	*	1/2				Also PAS Lower UJ 9/16"
HA 10	Shaft, Manual Steering	A075H0130ZB	*	*	*	*	*	*	1
	Shaft, PAS	B075H0141F	*	*	*	*	*	*	1
	Water Shield, Column UJ's LHD	A075H0151K	*	*	*	*	*	*			1	1
	Water Shield, Column UJ's RHD	A075H0152K	*	*	*	*	*	*		1
HA 11	Universal Joint, Lower, Manual Steering	C075H6009F	*	*	*	*	*	*	1				9/16" x 9/16"
	Bolt, Column UJ, M8 x 35	A079H4019F	*	*	*	*	*	*	3/2				Manual Steering 3, PAS 2
	Bolt, Column UJ, M8 x 40	A075W2039F	*	*	*	*	*	*	1/2				Manual Steering 1, PAS 2
	Nyloc Nut, M8	A075W3010ZK	*	*	*	*	*	*	4
	Washer	A075W4020ZB	*	*	*	*	*	*	4
	Bellows, c/w Clips, Pinion End	A075H6021ZJ	*	*	*	*	*	*	1				Manual Rack
	Bellows, c/w Clips, Non Pinion End	A075H6022ZC	*	*	*	*	*	*	1				Manual Rack
	Bellows	A075H6024F	*	*	*	*	*	*	2				PAS Rack
HA 12	Gasket, Upper, Column/Body	A075H0125ZK	*	*	*	*	*	*	1
HA 13	Upper Column Assembly	A075H6007WD	*	*	*	*	*	*	1
	Indicator Cancel Clip	A075M6038ZG	*	*	*	*	*	*	1
	Screw, 8 mmx 20, Col/Bulkhead	A075W1038ZB	*	*	*	*	*	*	2
	Nut	A075W3010ZK	*	*	*	*	*	*	2
	Washer, 8 mm I/D, 25 mm O/D	A075W4021ZG	*	*			*	*	2
	Rubber Washer	A036L6019ZD	*	*			*	*	2
	Washer 5/16"	A075W4003Z			*	*			2
	Screw, Column/Facia	A075W1017ZG	*	*	*	*	*	*	3
	Washer	A075W4005ZD	*	*	*	*	*	*	3
	Washer	A075W4052Z	*	*	*	*	*	*	3
	Nut 7/16"	A075W3004Z			*	*	*	*	1
	Nut, Special	A075J0322Z			*	*	*	*	2
HA 14	Lock, Steering Column, c/w Ignition Switch	B075H6008ZG	*	*	*	*	*	*			1	1
	Lock, Steering Column, c,w Ignition Switch	B075H6011ZG	*	*	*	*	*	*		1
HA15	Steering Wheel, Black Rim	A075H0145F	*	*			*	*	1
	Steering Wheel, Dark Brown Rim	A075H0146F	*	*			*	*	1
	Crash Pad, Black Grain	A075H0154F	*	*			*	*	1
	Bush, Crash-Pad Fixing	A079H6002F	*	*			*	*	8
	Steering Wheel, Black	A083H0155F			*	*	*	*	1
	Steering Wheel, Brown	A083H0156F			*	*	*	*	1
	Crash Pad	A083V2451F			*	*	*	*	1
	Fixing Strip	A083V2452K			*	*	*	*	1
	Spire Nut	A075W6106F			*	*	*	*	2
	Screw	A075W5065F			*	*	*	*	2
	Washer	B075H0147F	*	*	*	*	*	*	1
	Nut, Wheel to Column	A075H6003ZG	*	*	*	*	*	*	1
	Tab Washer	A075H6019FG	*	*	*	*	*	*	1
HA 16	Rack Assembly, PAS, RHD	A075H0126WC	*	*	*	*	*	*		1			Power Steering only
	Rack Assembly, PAS, LHD	A075H0127WH	*	*	*	*	*	*			1	1	Power Steering only
	Seal Kit, Rack Assembly, PAS	A075H6023F	*	*	*	*	*	*	AR				Power Steering only
HA 17	"U" Bolt, Pinion End	A075H6015ZA	*	*	*	*	*	*	1				Power Steering only
HA 18	"U" Bolt, Non-Pinion End	A075H6016ZF	*	*	*	*	*	*	1				Power Steering only
	Nut, "U" Bolts/Chassis	A075W3011ZD	*	*	*	*	*	*	4				Power Steering only
	Washer	A075W4024ZL	*	*	*	*	*	*	4				Power Steering only
HA 19	Clamp, "U" Bolt/Insulator	A075H0136ZK	*	*	*	*	*	*	1				Power Steering only
HA 20	Insulator	A075H6017ZL	*	*	*	*	*	*	1				Power Steering only
HA 21	Stiffening Bracket, Chassis	A075H0135ZE	*	*	*	*	*	*	2				Power Steering only
HA 22	Reservoir	A075H6014WF	*	*	*	*	*	*	1				Power Steering only
	Bracket, Reservoir to Body	B075H0138ZJ	*	*	*	*	*	*	1				Power Steering only
	Bolt, 6 mm x 45 mm	A075W2037ZE	*	*	*	*	*	*	1				Power Steering only
	Nut, 6 mm	A075W3009ZE	*	*	*	*	*	*	1				Power Steering only
	Screw, Bracket/Body	A075W1028ZG	*	*	*	*	*	*	2				Power Steering only
	Jacknut	A075W3031ZE	*	*	*	*	*	*	2				Power Steering only
HA 23	Cap, Reservoir	A075H6020Z	*	*	*	*	*	*	1				Power Steering only
HA 24	Hose, Low Pressure Feed	B075H0137ZH	*	*	*	*	*	*	1				Power Steering only
HA 25	Hose, Low Pressure Return, RHD	A075H0134ZL	*	*	*	*	*	*		1			Power Steering only
	Hose, Low Pressure Return, LHD	A075H0133ZF	*	*	*	*	*	*			1	1	Power Steering only
	"P" Clip, Hose to Body	A075H6018ZE	*	*	*	*	*	*	1				Power Steering only
	"P" CIip, Hose to Body	A075W6001ZL	*	*	*	*	*	*	1				Power Steering only
	Screw, Self Tapping	A075W5028ZF	*	*	*	*	*	*	1				Power Steering only
HA 26	High Pressure Feed Pipe, RHD	A075H0132ZA	*	*	*	*	*	*		1			Power Steering only
	High Pressure Feed Pipe, LHD	A075H0131ZG	*	*	*	*	*	*			1	1	Power Steering only
	Pump Assembly, Power Steering (less Pulley Assembly)	A075H0736WG	*	*	*	*	*	*	1				Power Steering only
	Bracket, Pump to Engine	B907E0668F	*	*			*	*	1				Up to Engine No. 1212 ? 12191 to 12193 and 121 ? to 12461 inc.
	Bracket, Pump to Engine	C907E0668F	*	*			*	*	1				From Engine No. 12171 ? 12190, 12194 to 12197 ? 12462 onwards
	Special Nut	A907E1039FG	*	*			*	*	2				Power Steering only
	Stud, Pump to Bracket	A907E1012ZG	*	*			*	*	2				Power Steering only
	Nut	A075W3010ZK	*	*			*	*	2				Power Steering only
	"V" Pulley, Pump	A907E0887J	*	*			*	*	1				Power Steering only
	Key, "V" Pulley to Pump	A907E1013ZA	*	*			*	*	1				Power Steering only
	Stud, Pulley to Pump Shaft	A907E1027F	*	*			*	*	1				Power Steering only
	Washer, Special, Pulley retaining	A075W4022Z	*	*			*	*	1				Power Steering only
	Nut, Locking, Pulley retaining	A075W3035Z	*	*			*	*	1				Power Steering only
	Special Stud (Spacer)	A907E1014ZF	*	*			*	*	1				Power Steering only
	Nut	A075W3009ZE	*	*			*	*	1				Power Steering only
	Power Steering Fluid	A075H6013VH	*	*			*	*	AR				Texamatic Type "F"
													For S2 Power Steering Pump & Fixings Section ET of 912 Engine Section.
