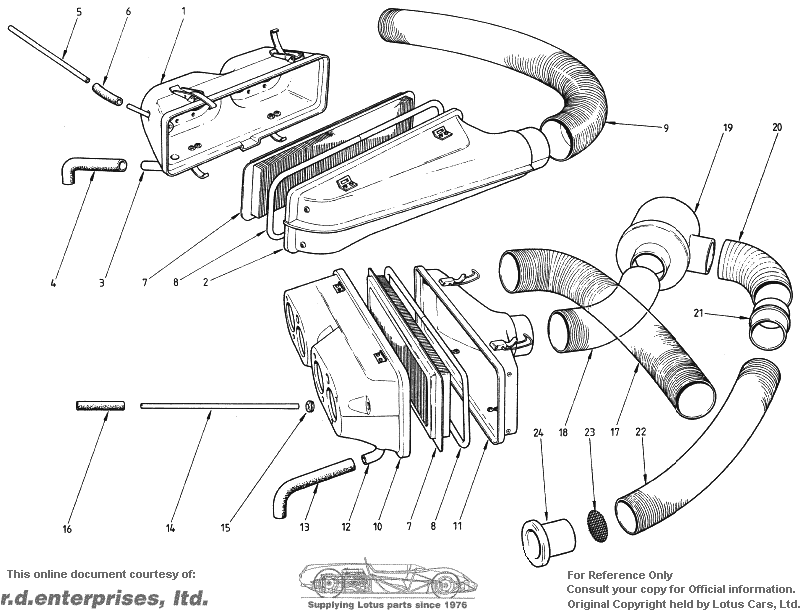

| PLATE
Ref. No. | DESCRIPTION | PART NO. |  |  | REMARKS |
| EO 1 | Airbox Backplate Assembly including Latches | A907E0917J | 1 | | |
| EO 2 | Airbox Cover Assembly | A907E0916J | 1 | | |
| Latch Assembly | A907E6345F | 4 | | |
| Striker Plate | A907E6346F | 4 | | |
| Screw M3 x 10 | A075WS080Z | 16 | | Latch/Striker to Airbox |
| Nut, Nyloc, M3 | A079W3060Z | 16 | | Latch/Strlker to Airbox |
| Washer, M3 | A075W4001Z | 16 | | Latch/Striker to Airbox |
| EO 3 | Flame Trap/Breather Tube | C907E0517F | 1 | | |
| EO 4 | Hose, Crankcase Breather | 907E0636Z | 1 | | |
| Clip, Hose to Block | A907E6085Z | 1 | | |
| Clip, Snapper, Hose to Airbox | A075W6211F | 1 | | |
| EO 5 | Pipe, Cam Housing Breather | A907E0682F | 1 | | |
| EO 6 | Hose, Cam Housing Breather | A907E6218F | 2 | | |
| Clip, 'Snapper' Breather Hose | A075W6205Z | 4 | | |
| EO 7 | Air Filter Element | A907E6182F | 1 | | |
| EO 8 | Seal, Filter Element | C907E0588F | 1 | | |
| EO 9 | Induction Hose, Airbox | B907E0836W | 1 | | |
| Clip, Induction Hose to Airbox | X036S6006Z | 1 | | |
| Clip, Hose to Duct | B075U0448Z | 1 | | |
| Bolt, M6, Cllp to Duct | A075W1029Z | 2 | | |
| Washer, M6, Large | A075W4017Z | 2 | | |
| Washer, M6, Spring | A075W4035Z | 2 | | |
| EO 10 | Airbox Backplate Assembly | A907E0921J | | 1 | |
| EO 11 | Airbox Cover Assembly, inc. Latches | A907E0920J | | 1 | |
| Latch Assembly | A907E6302F | | 4 | |
| Striker Plate | A907E6303F | | 4 | |
| Screw, M3 x 10 | A075W5080Z | | 16 | |
| Nut, Nyloc, M3 | A079W3060Z | | 16 | |
| Washer, M3 | A075W4001F | | 16 | |
| EO 12 | Flame Trap/Breather Tube | C907E0517F | | 1 | |
| EO 13 | Hose, Crankcase Breather | B907E0636Z | | 1 | |
| Clip, Hose to Block | A907E6085Z | | 1 | |
| Clip, Snapper, Hose to Airbox | A075W6211F | | 1 | |
| EO 14 | Pipe, Cam Housing Breather | A907E1264F | | 1 | |
| EO 15 | Grommet, Breather Pipe/Airbox | X036L6004Z | | 1 | |
| EO 16 | Hose, Cam Housing Breather | A907E6218F | | 1 | |
| Clip, 'Snapper' Breather Hose | A075W6205Z | | 2 | |
| EO 7 | Air Filter Element | A907E6182F | | 1 | |
| EO 8 | Seal, Filter Element | C907E0588F | | 1 | |
| EO 17 | Induction Hose, Airbox to Luggage Compartment Vent | B079E4046F | | 1 | Series 2.2.Models |
| Clip, Induction Hose | A036S6006Z | | 2 | Series 2.2 Models |
| EO 18 | Induction Hose, Air box to Silencer Box | A085E4097K | | 1 | Series 3 Models |
| Clip, Induction Hose | A036S6006Z | | 2 | Series 3 Models |
| Seal, Induction Hose/Engine Bay | A085B4372K | | 1 | Series 3 Models |
| EO 19 | Silencer Box, Induction System | A085E4098J | | 1 | Series 3 Models |
| EO 20 | Ductlng, Silencer Box/Connector Sleeve | A085E4096K | | 1 | Series 3 Models |
| Clip, Ducting | A036S6006Z | | 2 | Series 3 Models |
| EO 21 | Sleeve, Connecting | A085E4099K0 | | 1 | Series 3 Models |
| EO 22 | Trunklng, Intake | A079E4046F | | 1 | Series 3 Models |
| EO 23 | Mesh, Intake Trunking | A085E4106K | | 1 | Series 3 Models |
| EO 24 | Venturl, Intake Trunking | A907E0655K | | 1 | Series 3 Models |
| Tie, Trunklng to Batt. Cable | A079W6224F | | 1 | Series 3 Models |
