ELITE/ECLAT PARTS MANUAL

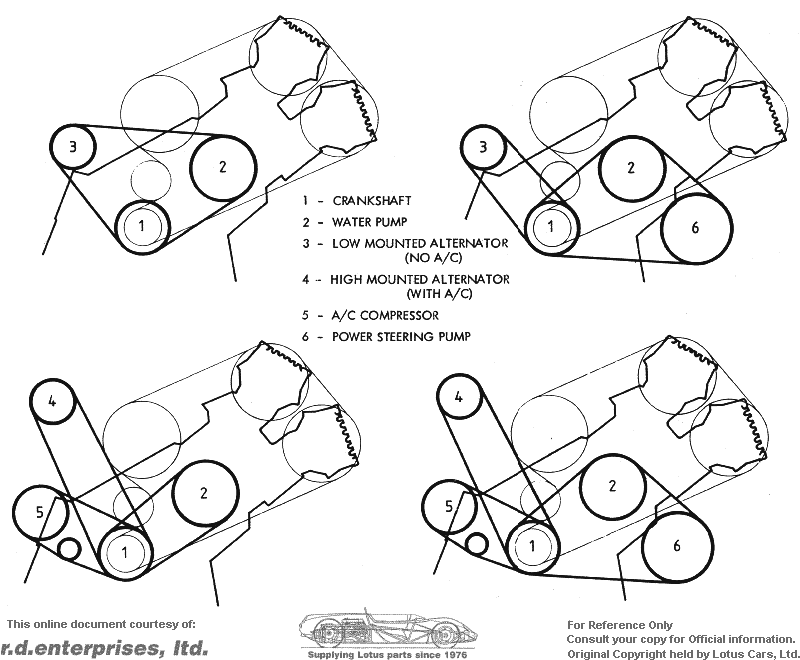

Section EL -- Engine (912) - 'V' Belts & Pulleys

PLATE
Ref. No.
DESCRIPTION
PART NO.
REMARKS
'V' Pulley, Crankshaft, SingleA907El191F11Except PAS or Air Conditioning
'V' Pu,ley, Crankshaft, DoubleA907E1192F1 With PAS only
'V' Pulley, Crankshaft, TripleA907E1193F11With Air Conditioning
Woodruff Key, Pulley to CrankA907E6016Z11
Washer, Special, Pulley to CrankB907E1106F11
Washer, Spring, Pulley to CrankA075W4038Z11
Setscrew ½" UNF x 1½"A075W1020Z11
'V' Belt 1 - 2 (centre 'V')A907E6296F11
'V' Belt 1 - 2 - 3A907E6201Z11
'V' Belt 1 - 2 - 6 (front 'V')A907E6201Z1 Power Steering only
'V' Belt 1 - 2 - 6 (centre 'V')A907E6201Z1 Power Steering and Air Conditioning
'V' Belt 1 - 3 (rear 'V')A907E6315F1
'V' Belt 1 - 4 (front 'V')A907E6268F1
'V' Belt 1 - 4 (front 'V')A907E6332F 1
'V' Belt 1 - 5 (rear 'V')B907E0590F1
'V' Belt 1 - 5 (rear 'V')A907E6333F 1
