ELITE/ECLAT PARTS MANUAL

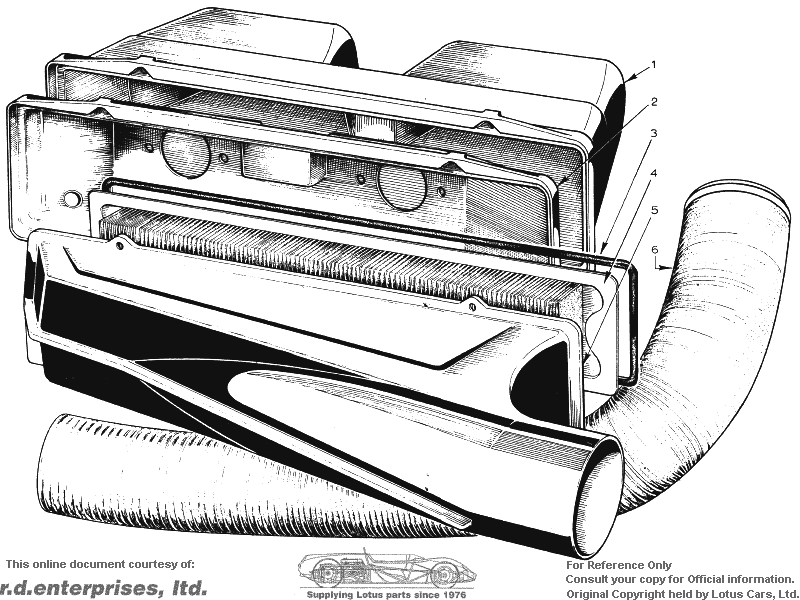

Section EL -- Engine (907) - Airbox & Filter


PLATE Ref. No.	DESCRIPTION	PART NO.									REMARKS
EL 1	Backplate Assembly	A907E0654ZJ	*	*	*	*		1	1
Not Illus.	Flametrap / Breather Tube	C907E0517ZA	*	*	*	*		1	1
EL 2	Backplate Assembly	A907E0655Z	*	*	*	*				1
	Backplate Assembly	C907E0655Z	*	*	*	*				1	1975 Spec. with A.R.O. valve
Not Illus.	Flametrap / Breather Tube	B907E0517ZH	*	*	*	*				1
EL 3	Seal	B907E0588ZL	*	*	*	*	1
EL 4	Element, Air Filter	A907E6182ZH	*	*	*	*	1
EL 5	Cover, Air Box	A907E0656ZH	*	*	*	*	1
EL 6	Hose, Induction	A907E0836W	*	*	*	*	1
Not Illus.	Clip	X036S6006ZF	*	*	*	*	1				Hose to Cover
Not Illus.	'p' Clip	A075U0448Z	*	*	*	*	2
	Bolt	A075W1058Z	*	*	*	*	2				'P' Cllp to Baffle
	Washer, Large	A075W4021ZG	*	*	*	*	2				'P' Cllp to Baffle
	Washer, Plain	A075W4020ZB	*	*	*	*	2				'P' Cllp to Baffle
	Nut	A075W3010ZK	*	*	*	*	2				'P' Cllp to Baffle
