ELITE/ECLAT PARTS MANUAL

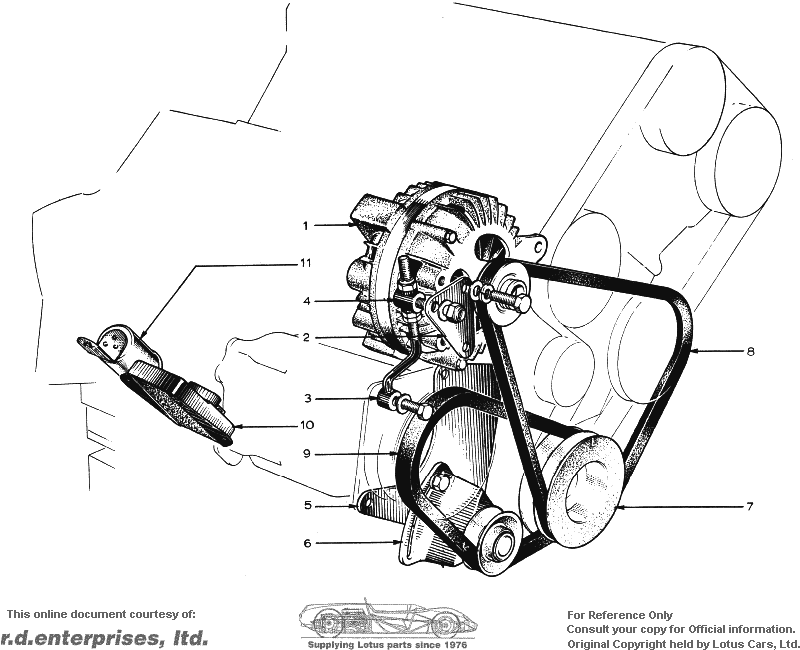

Section EK -- Engine (907) - Chrysler, Motorola Alternator & Comp. Drive


PLATE Ref. No.	DESCRIPTION	PART NO.						REMARKS
								AIR CONDITIONED CARS ONLY
EK 1	Alternator and Pulley Assembly Chrysler 60A	A907E6177ZE	*		*	*	1	Up to Eng. No. 12170, 12191 t*? and 12198 to 12461
	Pulley	A907E0685ZK	*		*	*	1	Up to Eng. No. 12170, 12191 t*? and 12198 to 12461
	Phase Lead	A075M0639Z	*		*	*	1	Up to Eng. No. 12170, 12191 t*? and 12198 to 12461
Not Illus.	Alternator & Pulley Assy. Motorola 55A	A907E6267F	*	*	*	*	1	Eng. No. 12171 to 12191, 1219 *? 12197 and 12462 on.
Not Illus.	Pivot Bush	A907E0615Z	*		*	*	1	Use with Chrysler Alt.
	Bolt	A075W2009ZH	*		*	*	1	Use with Chrysler Alt.
	Washer Plain	A075W4024ZL	*		*	*	3	Use with Chrysler Alt.
	Nut	A075W3003ZH	*		*	*	1	Use with Chrysler Alt.
	Pivot Bolt	A075W2050ZD	*	*	*	*	1	Use with Motorola Alt.
	Washer Plain	A075W4020ZB	*	*	*	*	4	Use with Motorola Alt.
	Nut	A075W3003ZH	*	*	*	*	1	Use with Motorola Alt.
EK 2	Adaptor Plate	A907E0613ZB	*		*	*	1	Use with Chrysler Alt.
	Adaptor Plate	B907E0613Z	*		*	*	1	Use with Chrysler Alt., & Auxili ? housing ? A907El0 ? A907E08 ?
	Screw	A075W1013ZJ	*		*	*	2	Use with Chrysler Alt., & Auxili ? housing ? A907El0 ? A907E08 ?
	Washer Plain	A075W4020ZB	*		*	*	2	Use with Chrysler Alt., & Auxili ? housing ? A907El0 ? A907E08 ?
	Washer Spring	A075W4036ZE	*		*	*	2	Use with Chrysler Alt., & Auxili ? housing ? A907El0 ? A907E08 ?
EK 3	Alternator Adjuster	A907E0612ZH	*		*	*	1	Use with Chrysler Alt.
	Screw	A075W1014ZC	*		*	*	1	Use with Chrysler Alt.
	Washer Plain	A075W4020ZB	*		*	*	1	Use with Chrysler Alt.
	Washer Spring	A075W4036ZE	*		*	*	1	Use with Chrysler Alt.
EK 4	Adjuster Stop	A907E0614ZG	*		*	*	1	Use with Chrysler Alt.
	Washer Plain	A075W4020ZB	*		*	*	1	Use with Chrysler Alt.
	Nut	A075W3010ZK	*		*	*	1	Use with Chrysler Alt.
	Locknut, Thln	A075W3024ZC	*		*	*	1	Use with Chrysler Alt.
	Washer Plain	A075W4024ZL	*		*	*	1	Use with Chrysler Alt.
	Nut	A075W3011ZD	*		*	*	1	Use with Chrysler Alt.
Not Illus.	Anchor Bracket, Tensioner	A907E1123F	*	*	*	*	1	Use with Motorola Alt.
Not Illus.	Adjustng Strap	A907E0030ZA	*	*	*	*	1	Use with Motorola Alt.
Not Illus.	Spacer	B907E0259ZK	*	*	*	*	1	Use with Motorola Alt.
	Nut	A075W3011ZD	*	*	*	*	1	Use with Motorola Alt.
	Screw	A075W1011ZK	*	*	*	*	1	Use with Motorola Alt.
	Washer Plain	A075W4020ZB	*	*	*	*	1	Use with Motorola Alt., Alt Adj
	Washer Spring	A075W4036ZE	*	*	*	*	1	Use with Motorola Alt.
	Bracket, Air Mounting. Chrysler Alt.	A907E1093F	*		*	*	1	Use with Auxiliary Housing ? Adaptable Type A907E0859F ?
	Spacer, Alt Bracket, Chrysler Alt	A907E1094F	*		*	*	1	Use with Auxiliary Housing ? Adaptable Type A907E0859F ?
	Screwed Sleeve, Chrysler Alt	A907E1095F	*		*	*	1	Use with Auxiliary Housing ? Adaptable Type A907E0859F ?
	Bracket, Air. Mounting Motorola Alt.	A907E1120G	*	*	*	*	1	Use with Auxiliary Housing ? Adaptable Type A907E0859F ?
EK 5	Bracket, Compressor	A907E0572ZD	*	*	*	*	1
	Bolt, M10 x 45	A075W2053ZH	*	*	*	*	2
	Washer Spring	A075W4037ZK	*	*	*	*	2
	Bolt M8 x 40	A075W2039ZD	*	*	*	*	1
	Washer Spring	A075W4036ZE	*	*	*	*	1
EK 6	Adjuster Pulley Assy	B907E0821WD	*	*	*	*	1
	Screw	A075W1039ZG	*	*	*	*	1	Adjuster to Bracket
	Washer Spring	A075W4036ZE	*	*	*	*	1	Adjuster to Bracket
EK 7 to 9	"V" Pulleys & Belts - See ED
Not Illus.	Spacer, Pulley	A907E0573ZJ	*	*	*	*		Water Pump, Air Con. Cars
Not Illus.	Spacer, Pulley	A907E0670ZA	*	*	*	*		Water Pump, Air Con.& Pas Cars
EK 10	Regulator	A075M6059ZB	*	*	*	*	1	Only with Chrysler 60 a .alt
EK 11	Control Unit	A075M6088ZD	*	*	*	*	1	Ignition warning light only with Chrysler 60 a .alt.
*? - Indicates that text was missing from the document used to create this page. -- Contact the Webmaster with corrections.
