ELITE/ECLAT PARTS MANUAL

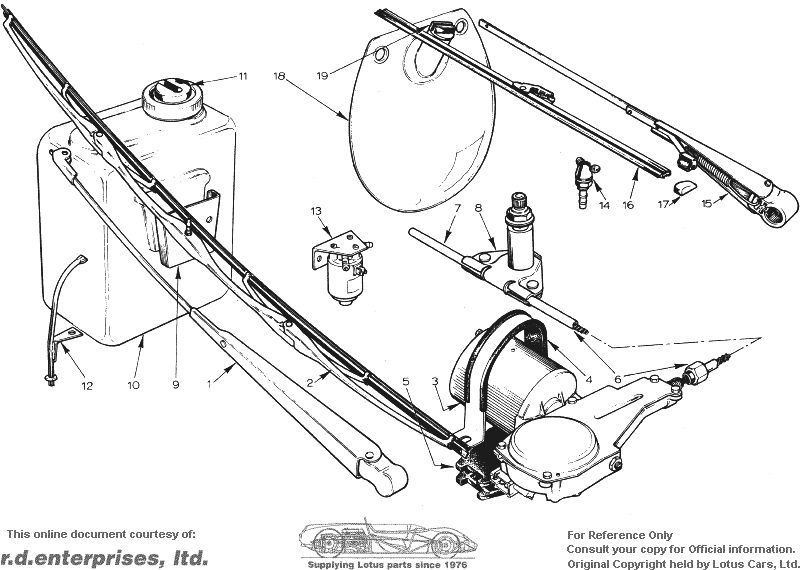

Section MC -- Electrical - Front/Rear Wipers & Washers


PLATE Ref. No.	DESCRIPTION	PART NO.								REMARKS
	Wiper Arm, front	A075M6019ZL	*				*	*	1	R/B arm A075M6146 + Bla *? A079M6015
	Wiper Blade, front	A075M6020ZE	*				*	*	1
MC 1	Wiper Arm, front	A075M6146FG	*	*			*	*	1
MC 2	Wiper Blade, front, polished	A075M6147F	*	*			*	*	1	R/B A079M6015F, black
	Wiper Arm, front	A083M6226F			*	*	*	*	1
	Wiper Blade, front, black	A079M6015F			*	*	*	*	1
MC 3	Wiper Motor, frontr c/w Clamp & Pads	A075M6021W	*				*	*	1	R/B B075M6148F
	Wiper Motor, front, c/w Clamp & Pads	B075M6148F	*	*			*	*	1	Improved angle of wipe
	Wiper Motor, front, c/w Clamp & Pads	B083M6224F			*	*	*	*	1
MC 4	Clamp, Wiper Motor	X046M6151Z	*	*			*	*	1
MC 5	Pad, Motor to Body	X046M6136Z	*	*			*	*	2
	Setscrew, M6 x 16, Motor fixing	A075W1028Z	*	*	*	*	*	*	2
	Jacknut, M6, Motor fixing	A075W3031Z	*	*	*	*	*	*	2
MC 6	Bundy Pipe, Motor to Wheelbox	A075M0240Z	*	*	*	*	*	*	1
MC 7	Bundy Pipe, Wheelbox run-out	X026M0012Z	*	*	*	*	*	*	1
MC 8	Wheelbox, Wiper, front	A075M6022W	*	*			*	*	1	2ľ" Spindle length
	Wheelbox, Wiper, front	B076M0309F	*	*			*	*	1	2" Spindle length
	Wheelbox, Wiper, front	B083M6227F			*	*	*	*	1
	Bracket, Wheelbox Mounting	A076M0310F	*	*	*	*	*	*	2
MC 15	Wiper Arm, rear	A075M0257Z	*				*	*	1
MC 16	Wiper Blade, rear	A075M0258Z	*				*	*	1
	Ramp, Rear Arm Parking	B075M0250Z	*				*	*	1
	Wiper Motor, rear c/w Clamp & Pads	B075M6011W	*				*	*	1
	Clamp, Wiper Motor	X046M6151Z	*				*	*	1
	Pad, Motor to Body	X046M6136Z	*				*	*	2
	Setscrew, M6 x 16, Motor fixing	A075W1028Z	*				*	*	2
	Jacknut, M6, Motor fixing	A075W3031Z	*				*	*	2
	Bundy Pipe, Rear Motor to Wheelbox	B075M0246Z	*				*	*	1
	Bundy Pipe, Rear Wheelbox run out	A075M0274Z	*				*	*	1
	Wheelbox, Rear Wiper	A075M6061Z	*				*	*	1
	Sealing Ring, Wheelbox Spindle	A075M0333F	*				*	*	1
	Bezel, rear Wheelbox	A075M0286Z	*				*	*	1
	Bracket, Wheelbox anti-rotation	A075M0334F	*				*	*	1
	Wiper Arm, rear	A083M6243F	*				*	*	1
	Wiper Blade, rear	A083M6244F			*		*	*	1
	Wiper Motor, rear	A083M0422K			*		*	*	1
	Bracket, Rear Wiper Motor Mounting	A083M0366K			*		*	*	1
	Spire Nut, Motor Bracket/Body	A079W6165F			*		*	*	1
	'J' Clip Retainer, Ľ" UNF	A079W6167F			*		*	*	2
	Spire Bolt, Motor Bracket/Body	A079W6166F			*		*	*	2
	Screw, Allen, Ľ" UNF, Bracket/Body	A075VVT000F			*		*	*	2
	Washer, flat, Motor Bracket/Body	A075W4065F			*		*	*	2
	Bush, Shouldered, Motor to Bracket	A083M6279F			*		*	*	1
	Grommet, Rubber, Motor to Bracket	A083M6280F			*		*	*	1
	Washer, flat, Motor to Bracket	A083M6282F			*		*	*	3
	Washer, lock, Motor to Bracket	A083M6283F			*		*	*	3
	Bolt, M6, Motor to Bracket	A083M6281F			*		*	*	3
	Rotary Link, Rear Wiper Motor	A083M0367F			*		*	*	1
	Intermediate Link	A083M0362K			*		*	*	1	Motor Link to Swivel Li *?
	Bush, Nylon, Intermediate Link	A083M6266F			*		*	*	2
	Washer, Flat, M8, Link Connecting	A075W4020F			*		*	*	2
	'R' Pin, Link Connecting	A075W6175F			*		*	*	2
	Swivel Link	A083M0365F			*		*	*	1
	Wavy Washer, Swivel Link Pivot	A083M6254F			*		*	*	1
	Coil Spring, Swivel Link Pivot	A083M6264F			*		*	*	1
	Washer Flat, Swivel Link Pivot	A083M6252F			*		*	*	1
	Circlip, Swivel Link Pivot	A083M6255F			*		*	*	1
	Cover, ABS, Rear Wiper Motor	A083U1246K			*		*	*	1
	Screw s/t No. 4 Cover to Body	A075W5008F			*		*	*	1
	Spindle/Housing Assembly, Rear Wiper	A083M0361F			*		*	*	1
	Washer, Steel, Spindle Housing (inner)	A083M6276P			*		*	*	1
	Washer, Rubber, Spindle Housing (inner)	A083M6277P			*		*	*	1
	Spacer, Spindle Housing Through Glass	A083U6105F			*		*	*	1
	Stop Plate, Rear Wiper Spindle	A083M0368F			*		*	*	1
	Cover, ABS, Interior, Wiper Spindle	A083U6103F			*		*	*	1
	Nut, Spindle Housing, Interior	A083M6275F			*		*	*	1
	Rubber Seal, Housing/Glass, Interior	A083U6103F			*		*	*	1
	Rubber Seal, Housing/Glass, Exterior	A083U6102F			*		*	*	1
	Escutcheon, Spindle Housing, Exterior	A083U6101F			*		*	*	1
	Spacer, Nut to Escutcheon	A083U6106F			*		*	*	1
	Nut, Spindle Housing, Exterior	A083M6275F			*		*	*	1
	Locknut, M8, Wiper Arm, Retaining	A075W3026F			*		*	*	1
MC 10	Washer Bottle, Windscreen	A075M6023Z	*	*			*	*	1	Elite Stage II Body Qty 2
MC 11	Filler Cap, Washer Bottle	A075M6070Z	*	*			*	*	1	Elite Stage II Body Qty 2
	Pick Up Tube and Non Return Valve	A075M6071W	*	*			*	*	1	Elite Stage II Body Qty 2
MC 13	Washer Pump	A075M6149Z	*	*			*	*	2/1	Elite Qty 2 Eclat Qty 1
	Screw, Pump Fixing	A075W5034Z	*	*			*	*	4/2	Elite Qty 4 Eclat Qty 2
	Washer Pump & Reservoir	A083M6221F			*	*	*	*	2/1	Elite Qty 2 Eclat Qty 1
MC 9	Mounting Bracket, Washer Bottle	A075M6069Z	*	*	*	*	*	*	1	Elite S2 and Elite S1 wi ? Stage II Body - double ?
	Screw s/t, Bracket Fix	A075W5034Z	*	*	*	*	*	*	1	Elite S2 and Elite S1 wi ? Stage II Body - double ?
	Bush, Bracket Fix	A075W6039Z	*	*	*	*	*	*	1	Elite S2 and Elite S1 wi ? Stage II Body - double ?
	Insert, Washer Bottle Top	A083M6289F			*	*	*	*	2/1	Elite Qty 2 Eclat Qty 1
	Valve, Anti-Syphon	A083M6290F			*	*	*	*	2/1	Elite Qty 2 Eclat Qty 1
	Hose, 4mm diameter	A050M6164V			*	*	*	*	AR
	'T' Piece	A075M6118			*	*	*	*	1
MC 14	Washer, Jet, Front	A075M0247Z	*		*	*	*	*	2
	Washer, Jet, Front	A076M6012F		*			*	*	2
MC 18	Bag, Washer Reservolr, Rear	X036B6160Z	*				*	*	1	Stage 1 Body only
MC 19	Cap, Pipe & Non Return Valve	X036B6161Z	*				*	*	1	Stage 1 Body only
	Bag Holder & Battery Clamp	B075U0326Z	*				*	*	1	Stage 1 Body only
MC 12	Washer Jet, Rear	A050M6198Z	*		*		*	*	1
*? - Indicates that text was missing from the document used to create this page. -- Contact the Webmaster with corrections.
