Elite/Eclat Parts Manual -- Section MB

ELITE/ECLAT PARTS MANUAL

Section MB -- Electrical - Lamps

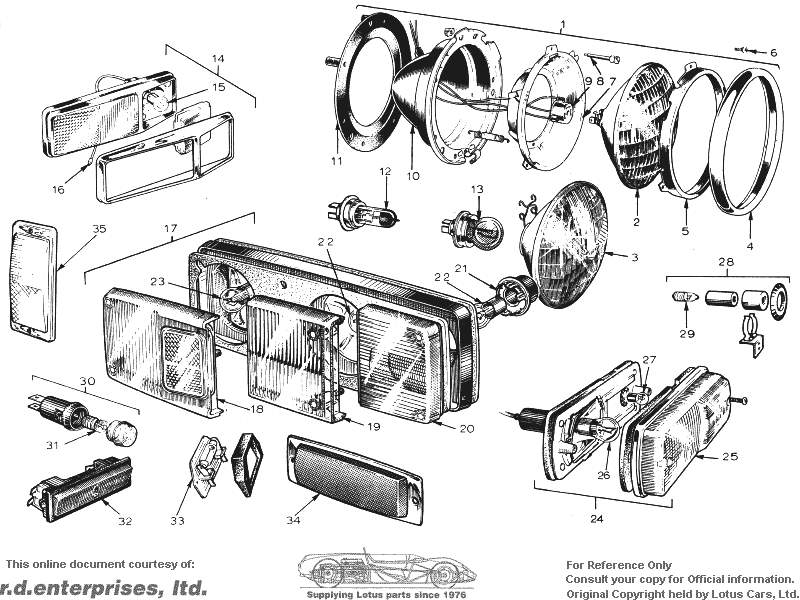

PLATE Ref. No.	DESCRIPTION	PART NO.											REMARKS
	The document used to create this page does not index the above image.
	Headlamp Assembly, Sealed Beam 75w/50W	B036M6419W	*	*			*	*		2			Also Japan
	Light Unit, Sealed Beam	A036M6434Z	*	*			*	*		2			Also Japan
	Headlamp Assembly, Halogen BPF	B075M6001W	*	*			*	*		2			R/B C075M6001W
	Headlamp Assembly, H4 Halogen	C075M6001W	*	*			*	*		2
	Light Unit	A075M6127Z	*	*			*	*		2
	Bulb, H4 Halogen	A075M6126F	*	*			*	*		2
	Headlamp Assembly. UEC Bulb Type	A036M6078W	*	*			*	*			2
	Headlamp Assembly. UEC Bulb Type	A036M6079W	*	*			*	*			2		France only
	Light Unit	A036M6185W	*	*			*	*			2
	Bulb, Clear, UEC	A036M6360Z	*	*			*	*			2
	Bulb, Yellow, UEC	A036M6361Z	*	*			*	*			2		France only
	Headlamp Assembly, H4 Halogen	A075M6009W	*	*			*	*			2
	Light Unit	A075M6125Z	*	*			*	*			2
	Bulb, H4 Halogen	A075M6126F	*	*			*	*			2
	Bulb, H4 Halogen, Yellow	A079M6113F	*	*			*	*			2		France only
	Headlamp Assembly, Sealed Beam	B036M6302W	*	*			*	*				2
	Light Unit, Sealed Beam	A036M6083W	*	*			*	*				2
	Bezel, Headlamp	X036M6036Z	*	*			*	*	2
	Rim, Unit Retaining	X036M6037Z	*	*			*	*	2
	Ring, Focussing	X036M6040	*	*			*	*	2
	Screw, Trimmer	X036M6039Z	*	*			*	*	4
	Body, Headlamp Bowl	X036M6041Z	*	*			*	*	2
	Gasket, Body	X036M6044Z	*	*			*	*	2
	Screw, s/t	A075W5043Z	*	*			*	*	8
	Spire Nut	A075W6016Z	*	*			*	*	8
	Headlamp Assembly, Lucas, Halogen H4	A083M6246F			*	*	*	*		2
	Light Unit, Lucas	A083M6319F			*	*	*	*		2
	Bulb, Halogen, H4	A075M6126F			*	*	*	*		2
	Headlamp Assembly, Lucas, Halogen H4	A083M6247F			*	*	*	*			2
	Light Unit, Lucas	A083M6320F			*	*	*	*			2
	Bulb, Halogen H4	A075M6126F			*	*	*	*			2
	Tailamp Assembly, left hand	A075M6027W	*	*			*	*		1	1
	Tailamp Assembly, right hand	A075M6026W	*	*			*	*		1	1
	Tailamp Assembly, left hand	A075M6039W	*	*	*	*	*	*				1	Also Australia
	Tailamp Assembly, right hand	A075M6040W	*	*	*	*	*	*				1	Also Australia
	Washer, Tailamp Fix	A075W4013Z	*	*	*	*	*	*	14
	Nut, Special, Tailamp Fix	A075M0273Z	*	*	*	*	*	*	14
	Lens, Stop/Tall	A075M6121Z	*	*			*	*	2
	Lens, Flasher	A075M6135Z	*	*			*	*		2	2
	Lens, Flasher	A075M6122Z	*	*			*	*				2
	Lens, Reverse	A075M6123Z	*	*			*	*	2
	Bulb Holder, Reverse & Flasher	A075M6129Z	*	*			*	*	4
	Bulb Holder, Stop/Tail	A075M6128Z	*	*			*	*	2
	Taillamp Assembly, left hand	A075M6215F			*	*	*	*		1	1		Not Germany
	Tailamp Assembly, right hand	A075M6214F			*	*	*	*		1	1		Not Germany
	Bulb, Reverse, Fog, Flasher	AO36M6329Z	*	*	*	*	*	*	4/6				S1 Qty 4 S2 Qty 6
	Bulb, Stop/Tail	A036M6331Z	*	*	*	*	*	*	2
	Earth Lead, Tailight	A079M4061F			*	*	*	*	2
	Side/Flasher Light Assembly, left hand (marked 'RH')	A075M6028Z	*	*	*	*	*	*	1				Federal with White/Amber *?
	Side/Flasher Light Assembly, right hand (marked 'LH')	A075M6029Z	*	*	*	*	*	*	1				Federal with Whlte/Amber *?
	Lens, Side/Flasher	A075M6119Z	*	*	*	*	*	*	2				Federal w,th Whlte/Amber *?
	Side/Flasher Light Assembly, left hand	A075M6045Z	*	*			*	*				1	Up to '76 with all Amber L *?
	Side/Flasher Light Assembly, right hand	A075M6046Z	*	*			*	*				1	Up to '76 with all Amber L *?
	Lens, Side/Flasher	A075M6120Z	*	*			*	*				2	Up to '76 with all Amber L *?
	Nut, 2BA, Lamp Fixing	A075W3001Z	*	*	*	*	*	*	8
	Washer, Lamp Fixing	A075W4013Z	*	*	*	*	*	*	8
	Side/Flasher Light Assembly	A079M6032Z	*	*	*	*	*	*				2	'77 on
	Lens, Side/Flasher	A079M6071F	*	*	*	*	*	*				2	'77 on
	Screw, Lamp Fixing	A075W5028Z	*	*	*	*	*	*				4	'77 on
	Bulb, Flasher	A036M6329Z	*	*	*	*	*	*	2
	Bulb, Side	A036M6330Z	*	*	*	*	*	*	2
	Side Marker Lamp, Red	XO36M6281W	*	*	*	*	*	*	2
	Side Marler Lamp, Amber	X036M6282W	*	*	*	*	*	*	2
	Bulb, Side Marker	A036M6330W	*	*	*	*	*	*	4
	Screw, Front Marker	A075W5028Z	*	*	*	*	*	*	6
	Nut, 6 UNC, Rear Marker	A075W3052Z	*	*	*	*	*	*	6
	Washer, Rear Marker	A075W4001Z	*	*	*	*	*	*	6
	Earth Lead, Side Marker	B075M0242Z	*	*	*	*	*	*	4
	Interior Light	B075M6043W	*				*	*	2
	Bulb	A075M6144Z	*				*	*	2
	Rear Side, Pocket Light	A036M6148W		*			*	*	2				Up to Unit No. 279D, 1871 *? & 117F
	Bulb	A050M6168W		*			*	*	2				Up to Unit No. 279D, 1871 *? & 117F
	Rear Side Pocket Light	A076M6011F		*			*	*	2				From Unit No6. 280D, 188 *? 118F inc.
	Interior Light	A083M6291F			*	*	*	*	2/1				Elite Qty 2 Eclat Qty 1
	Bulb, 12V 6W Festoon	A083M6292F			*	*	*	*	2/1				Elite Qty 2 Eclat Qty 1
	Boot Light	A075M6043W	*				*	*	1
	Bulb	A075M6144Z	*				*	*	1
	Boot Light	A036M6148W		*			*	*	1				Up to Unit Nos. 279D, 18 *? 117F
	Bulb	A050M6168W		*			*	*	1				Up to Unlt Nos. 279D, 18 ?* 117F
	Boot Light c/w Switch	A075M6136Z		*			*	*	1				From Unit Nos. 280D, 188 *? & 118F
	Boot Light	A083M6291F			*		*	*	1
	Bulb, 12V 6W Festoon	A083M6292F			*		*	*	1
	Boot Light	A076M6015F				*	*	*	1
	Screw s/t No 6, Light Fixing	A075W5027Z				*	*	*	2
	Nut, Spire, Light Fixing	A075W6013Z				*	*	*	2
	Number Plate Light Assembly	A075M6025Z	*	*	*	*	*	*	2
	Gasket, Number Plate Light	A075M0256Z	*	*	*	*	*	*	2
	Screw, Light Fix	A075W5016Z	*	*	*	*	*	*	2
	Door Ajar Light	A082M6155F			*	*	*	*	2
	Shield, Door Ajar Light	A082M4105F			*	*	*	*	2
	Screw, Light Fixing	A075W5027Z			*	*	*	*	4
	Nut, Spire	A079W6024F			*	*	*	*	4
	Reflector, Door	X036M6092Z	*	*			*	*	2
	Screw, Reflector Fix	A075W5033Z	*	*			*	*	4
	Switch Illumination Lamp	A075M6066Z	*	*			*	*	1
	Resistor, Switch Illumination Lamp	A075M6155Z	*	*			*	*	1
	Bulb, Switch Illumination Lamp	A075M6111Z	*	*			*	*	1
	Glove Box Light	A075M6035W	*	*	*	*	*	*	1
	Under Bonnet Light	A075M6085Z	*	*			*	*	1
	Under Bonnet Light c/w Switch	A075M6136Z	*	*	*	*	*	*	1
	Screw, s/t, Light Fixing	A075W5033Z	*	*	*	*	*	*	2
	Rear Fog Lamp	A075M6235F	*	*			*	*	2				Where Fitted
	Bracket, Rear Fog Lamp, left hand	A075M6237F	*	*			*	*	1				Where Fitted
	Bracket, Rear Fog Lamp, right hand	A075M6238F	*	*			*	*	1				Where Fitted
	Harness, Rear Fog Lamp	A075M0357F	*	*			*	*	1				Where Fitted
*? - Indicates that text was missing from the document used to create this page. -- Contact the Webmaster with corrections.
