ELITE/ECLAT PARTS MANUAL

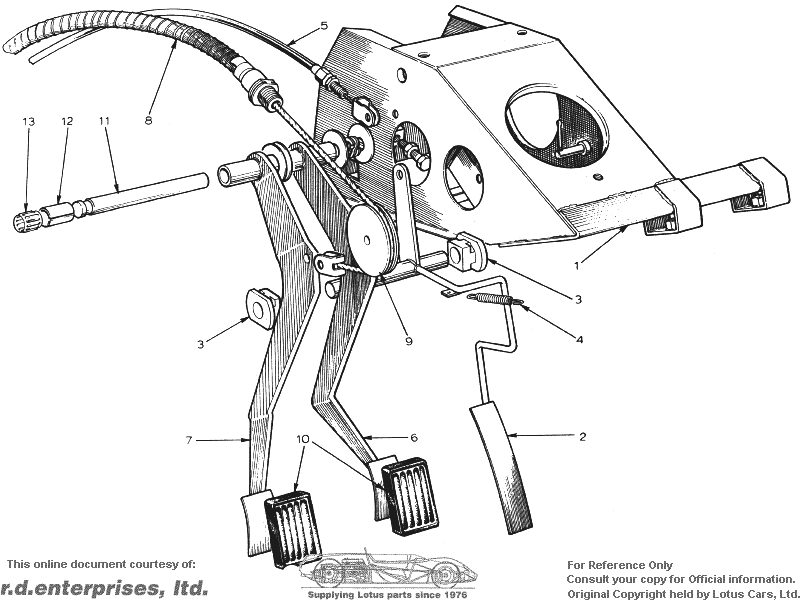

Section JA -- Brakes -- Pedal Box, Throttle & Clutch Cables


PLATE Ref. No.	DESCRIPTION	PART NO.											REMARKS
													*This section is incomplete. ?** The document used to create this page contained only one unnumbered page and one page numbered JA4.
	Pedal Box, RHD	F075J0228W	*	*	*	*	*	*		1
	Pedal Box, LHD	H075J0229W	*	*	*	*	*	*			1	1
	Pedal Box, RHD (with release mechanism preload spring)	A083J1352F			*	*	*	*		1			VIN 83D1739 ? VIN 84D0214 onw ?
	Pedal Box, LHD	A083J1351F			*	*	*	*			1	1
	Backing Plate, Pedal Box to Body	A075J0294Z	*	*	*	*	*	*	1
	Bolt, M8 x 25, Pedal Box to Body	A075W1039Z	*	*	*	*	*	*	2
	Nut, M8, Pedal Box to Body	A075W3010Z	*	*	*	*	*	*	2
	Throttle Pedal, RHD	D075J0248W	*	*	*	*	*	*		1
	Throttle Pedal, LHD	C075J0249W	*	*	*	*	*	*			1	1
	Setscrew, Upstop and Downstop	A075W2027Z	*	*	*	*	*	*	1
	Nut, Stop Locking	A075W3020Z	*	*	*	*	*	*	1
	Bearing, Pedal Spindle	A075J6005Z	*	*	*	*	*	*	2
	Washer	A075W4005	*	*	*	*	*	*	6
	Return Spring, Throttle Pedal	A075J6028Z	*	*	*	*	*	*		1
	Return Spring, Throttle Pedal	A075J6029Z	*	*	*	*	*	*			1	1
	Clevis Pin, Throttle Pedal to Cable	A075W6030Z	*	*	*	*	*	*	1
	Split Pin	A075W6005Z	*	*	*	*	*	*	1
JA 11	Spindle, Brake/Clutch Pedals	A075J0247Z	*	*	*	*	*	*	1
JA 12	Bush, Pedals	A075J6003Z	*	*	*	*	*	*	4				2 on Automatic
JA 13	Tolerance Ring	A075J6004Z	*	*	*	*	*	*	1
	Washer	A075W4028Z	*	*	*	*	*	*	4				2 on Automatic
	Thackery Washer	A075W4041Z	*	*	*	*	*	*	1
	Choke Cable, LHD	B075S0195Z	*	*			*	*				1	Zenith "CD" Carbs
	Choke Cable, RHD	C075S0196F	*	*			*	*				1	Zenith "CD" Carbs
	Choke Cable, LHD	B075S0197F	*	*			*	*			1		Dellorto Carbs
	Choke Cable, RHD	B075S0198Z	*	*			*	*		1			Dellorto Carbs
	Choke Cable, RHD	A083S0276F			*	*	*	*		1			Dellorto Carbs
	Choke Cable, LHD	A083S0275F			*	*	*	*			1		Dellorto Carbs
	Bracket, Return Spring	A075J0292Z	*	*			*	*	1
	Clevis Pin	A075W6030Z	*	*			*	*	1
	Split Pin	A075W6005Z	*	*			*	*	1
