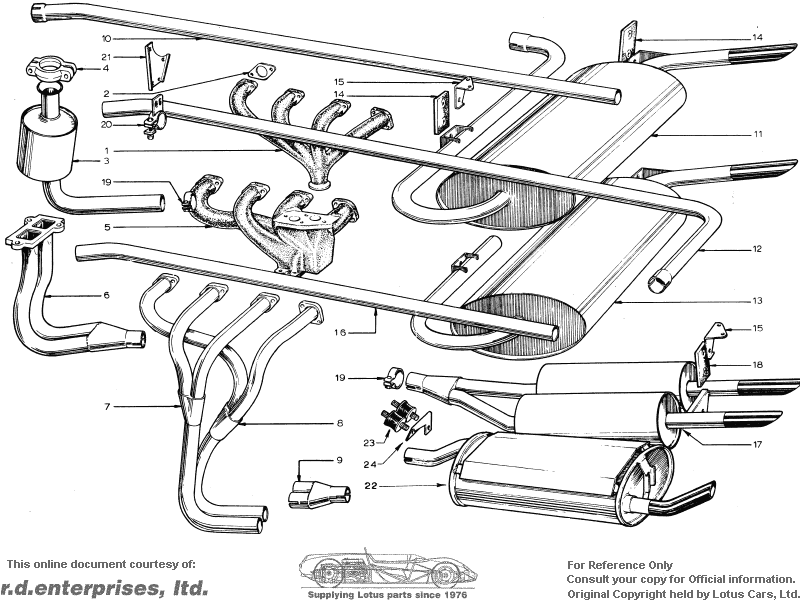

 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 1 | 026S0001 | 1 | 1 | 1 | 1 | 1 | Manifold, Std. (replaced by items 7, 8, 9) | ||||||
| A026S0001A | 1 | 1 | 1 | 1 | Manifold, S/E (replaced by items 7, 8, 9) | ||||||||
| 2 | 026S0004 | 4 | 4 | 4 | 4 | 4 | Gasket | ||||||
| 3 | 026S0002A | 1 | 1 | 1 | Downpipe, Std. (male) | To 6639 | |||||||
| 3 | A026S0002A | 1 | 1 | 1 | Downpipe, Std. (female) | From 6640 | |||||||
| 4 | A026S6192 | 1 | 1 | 1 | 1 | 1 | Clamp, Downpipe to Manifold | ||||||
| A026S6193 | 2 | 2 | 2 | 2 | 2 | Bolt, Downpipe to Manifold | |||||||
| A05W1007 | 2 | 2 | 2 | 2 | 2 | Washer, Downpipe to Manifold | |||||||
| A026S6194 | 2 | 2 | 2 | 2 | 2 | Nut, Downpipe to Manifold | |||||||
| 026S0001A | Manifold, S/E (cast) - No longer available | ||||||||||||
| 5 | 026S0001B | 1 | Manifold, Emission (replaced by A026S0001) | ||||||||||
| A026S0001 | 1 | Manifold, Emission | |||||||||||
| 2 | 026S0004 | 4 | Gasket | ||||||||||
| 6 | B026S0002 | 1 | 1 | 1 | 1 | Downpipe, S/E (female) | From 6640 | ||||||
| W0104 | 3 | 3 | 3 | 3 | Allen Screw, Downpipe to Manifold | To 8849 | |||||||
| L05W0000 | 3 | 3 | 3 | 3 | Washer, Downpipe to Manifold | To 8849 | |||||||
| UFCT0526 | 3 | 3 | 3 | 3 | Stud, Downpipe to Manifold | From 8850 | |||||||
| 026S0042 | 3 | 3 | 3 | 3 | Nut, Brass, Downpipe to Manifold | From 8850 | |||||||
| 7 | 050S0151 | 1 | 1 | Manifold, cylinders 2 & 3 | From 8850 | ||||||||
| 8 | 050S0150 | 1 | 1 | Manifold, cylinders 1 & 4 | From 8850 | ||||||||
| 9 | 050S0152 | 1 | 1 | 'Y' box | From 8850 | ||||||||
| 50S6004 | 2 | 2 | Clip, Manifolds to 'Y' box | From 8850 | |||||||||
| 2 | 026S0004 | 2 | 2 | Gasket | From 8850 | ||||||||
| 10 | A026S0003 | 1 | 1 | Intermediate Pipe | To 6639 | ||||||||
| 11 | A026S0707 | 1 | 1 | Silencer | To 6639 | ||||||||
| 12 | B026S0003 | 1 | 1 | Intermediate Pipe | From 6640 to 7894 | ||||||||
| 13 | B036S0707 | 1 | 1 | Silencer | From 6640 to 7894 | ||||||||
| 14 | 036S6001 | 2 | 2 | 2 | 2 | Insulator, Transverse Silencer to Body | Upto 7894 | ||||||
| 15 | 036S6002 | 2 | 2 | 2 | 2 | Bracket, Transverse Silencer to Body | Upto 7894 | ||||||
| XUFS0516 | 4 | 4 | 4 | 4 | Screw, Transverse Silencer to Body | ||||||||
| LUFN050F | 8 | 8 | 8 | 8 | Nut, Transverse Silencer to Body | ||||||||
| A05W1007 | 4 | 4 | 4 | 4 | Washer, Transverse Silencer to Body | ||||||||
| XUFS0512 | 4 | 4 | 4 | 4 | Screw, Transverse Silencer to Body | ||||||||
| A05W1607 | 4 | 4 | 4 | 4 | Washer, Transverse Silencer to Body | ||||||||
| 16 | 036S0003 | 1 | 1 | Intermediate Pipe | From 7895 | ||||||||
| 17 | 036S0707 | 1 | 1 | Silencer | |||||||||
| 18 | 036S0094 | 1 | 1 | Insulator, Silencer to Body | From 7895 | ||||||||
| 15 | 036S6002 | 1 | 1 | Bracket, Silencer to Body | From 7895 | ||||||||
| XUFS0516 | 2 | 2 | Screw, Silencer to Body | From 7895 | |||||||||
| LUFN050F | 4 | 4 | Nut, Silencer to Body | From 7895 | |||||||||
| A05W1007 | 2 | 2 | Washer, Silencer to Body | From 7895 | |||||||||
| XUFS0512 | 2 | 2 | Screw, Silencer to Body | From 7895 | |||||||||
| A05W1607 | 2 | 2 | Washer, Silencer to Body | From 7895 | |||||||||
| 19 | 050S6006 | 2 | Clip - Intermediate Pipe to Silencer & Downpipe | ||||||||||
| 20 | 026S0088 | 1 | Support Clip | ||||||||||
| 21 | 026F0010 | 1 | Mounting Bracket | ||||||||||
| XUFS1010 | 2 | Screw, Support Clip to Mounting Bracket | |||||||||||
| L03W060F | 2 | Washer, Support Clip to Mounting Bracket | |||||||||||
| YUFN100F | 2 | Nut, Support Clip to Mounting Bracket | |||||||||||
| A036S0179 | 1 | Intermediate Pipe | Can replace earlier systems | ||||||||||
| 22 | A036S0180 | 1 | Silencer | Can replace earlier systems | |||||||||
| 23 | 050S0156 | 2 | Insulator | Can replace earlier systems | |||||||||
| 24 | A36S0178 | 1 | Bracket | Can replace earlier systems | |||||||||
| XUFS0512 | 1 | Screw, Bracket | Can replace earlier systems | ||||||||||
| A05W1606 | 2 | Washer, Insulator | Can replace earlier systems | ||||||||||
| 050S0157 | 2 | Washer, Insulator | Can replace earlier systems | ||||||||||
| YUFN050F | 4 | Nut, Insulator | Can replace earlier systems | ||||||||||
| 15 | 036S6002 | 1 | Bracket, Silencer to Body | Can replace earlier systems | |||||||||
| 18 | 036S0094 | 1 | Insulator, Silencer to Body | Can replace earlier systems | |||||||||
| XUFS0516 | 2 | Screw, Silencer to Body | Can replace earlier systems | ||||||||||
| LUFN050F | 4 | Nut, Silencer to Body | Can replace earlier systems | ||||||||||
| A05W1007 | 2 | Washer, Silencer to Body | Can replace earlier systems | ||||||||||
| XUFS0512 | 2 | Screw, Silencer to Body | Can replace earlier systems | ||||||||||
| A05W1607 | 2 | Washer, Silencer to Body | Can replace earlier systems |
