 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||

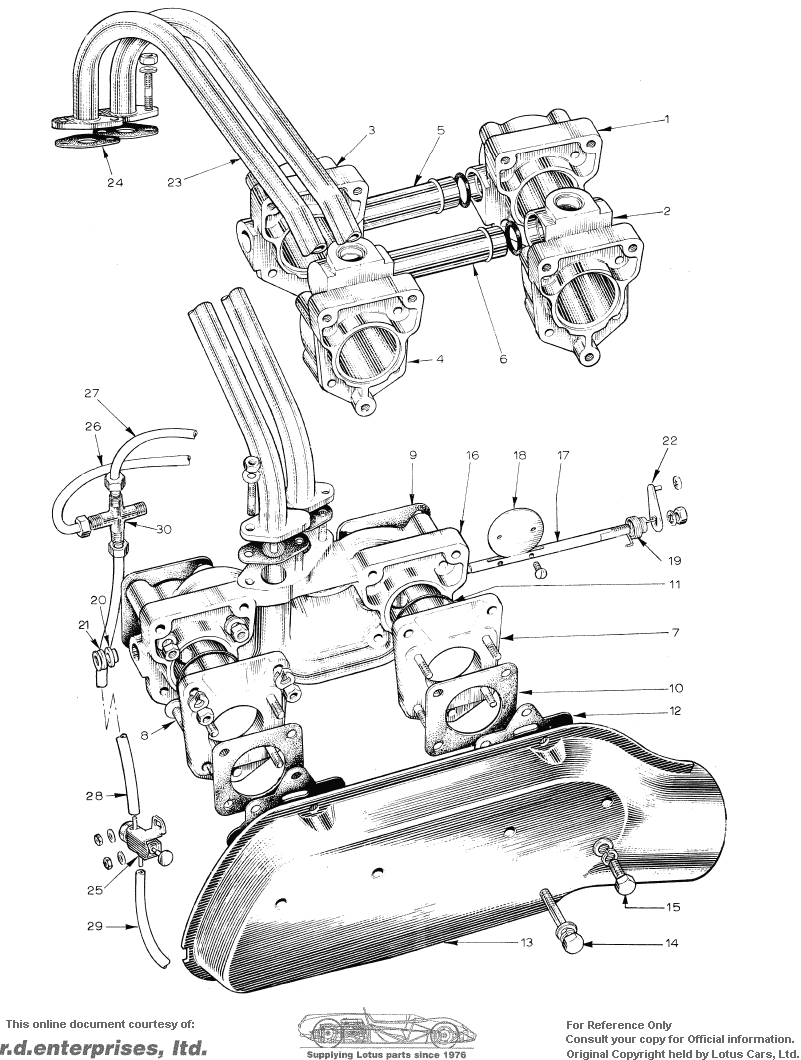

| 1 | 026S0099 | 1 | Adaptor Block - Front | Upto Engine No. ? | |||||||||
| 2 | B026S0099 | 1 | Adaptor Block - Front | From Engine No. ? | |||||||||
| 3 | 026S0100 | 1 | Adaptor Block - Rear | Upto Engine No. ? | |||||||||
| 4 | B026S0100 | 1 | Adaptor Block - Rear | From Engine No. ? | |||||||||
| W0203 | 6 | Stud | |||||||||||
| 5 | 026S0128 | 1 | Balance Pipe | Upto Engine No. ? | |||||||||
| 6 | B026S0128 | 1 | Balance Pipe | From Engine No. ? | |||||||||
| 036S6161 | 1 | 'O' Ring - Balance Pipe | |||||||||||
| 7 | A026S0009A | 2 | 2 | Adaptor Flange | |||||||||
| 8 | W0122 | 8 | 8 | Stud - Adaptor Flange | |||||||||
| YUFN050F | 8 | 8 | Nut, Carburetter/Adaptor Block Mounting | ||||||||||
| A05W1007 | 8 | 8 | Washer, Carburetter/Adaptor Block Mounting | ||||||||||
| W0111 | 8 | 8 | Spring Washer, Carburetter/Adaptor Block Mounting | ||||||||||
| 9 | 026S0108 | 2 | 2 | Gasket - Adaptor Block to Engine | |||||||||
| 10 | 026S0107 | 2 | 2 | Gasket - Carburetter to Adaptor Flange | |||||||||
| 11 | A026S0086A | 2 | 2 | 'O' Ring - Adaptor Flange to Adaptor Block | |||||||||
| 12 | 026S0106 | 2 | 2 | Gasket - Airbox to Carburetter | |||||||||
| 13 | 036S0112 | 1 | Airbox - Stromberg | ||||||||||
| 036S0112 | 1 | Airbox - Stromberg | |||||||||||
| A036S0112 | 1 | Airbox - Stromberg | 1971 Evap. Loss | ||||||||||
| 026S0154 | 1 | Adaptor - Airbox | 1971 Evap. Loss | ||||||||||
| 14 | XUCB0548 | 4 | 4 | Bolt, Airbox to Carburetters | |||||||||
| 15 | XUCB0510 | 2 | 2 | Bolt, Airbox to Carburetters | |||||||||
| A05W1007 | 2 | 2 | Washer, Airbox to Carburetters | ||||||||||
| L05W0000 | 2 | 2 | Washer, Airbox to Carburetters | ||||||||||
| 026S0109 | 2 | 2 | Secondary Throttle Assembly | ||||||||||
| 16 | 026S0110 | 1 | Secondary Throttle Body | ||||||||||
| 17 | 026S0117 | 2 | Spindle | ||||||||||
| 18 | 026S0118 | 2 | Throttle Plate | ||||||||||
| 036S6008 | 2 | Screw | |||||||||||
| 19 | 026S0119 | 1 | Return Spring - Front | ||||||||||
| 026S0120 | 1 | Return Spring - Rear | |||||||||||
| 20 | 026S0121 | 2 | Bush | ||||||||||
| 21 | 026S0123 | 2 | Seal | ||||||||||
| 026S0122 | 2 | Retainer - Seal | |||||||||||
| 22 | 026S0124 | 1 | Lever - Front Throttle | ||||||||||
| 026S0125 | 1 | Lever - Rear Throttle | |||||||||||
| 036S6009 | 8 | Nut, Throttle Spindle | |||||||||||
| 036S6010 | 8 | Washer, Throttle Spindle | |||||||||||
| UFCT0420 | 8 | Stud - Crossover Pipe Mounting | |||||||||||
| 23 | 026S0111 | 2 | Crossover Pipe | ||||||||||
| 24 | 026S0114 | 6 | Gasket, Crossover Pipe to Secondary Throttle Body & Manifold | ||||||||||
| UFCT0420 | 8 | Stud, Crossover Pipe to Secondary Throttle Body & Manifold | |||||||||||
| W0124 | 8 | Nut, Crossover Pipe to Secondary Throttle Body & Manifold | |||||||||||
| A04W0906 | 8 | Washer, Crossover Pipe to Secondary Throttle Body & Manifold | |||||||||||
| 25 | 026S0134 | 1 | Idle Retard Valve | Upto Engine No. G21797 | |||||||||
| 036S6018 | 2 | Nut, Valve Mounting | Upto Engine No. G21797 | ||||||||||
| 036S6019 | 2 | Washer, Valve Mounting | Upto Engine No. G21797 | ||||||||||
| 26 | 026S0137 | 1 | Tube - Valve to Rear Carburetter | Upto Engine No. G21797 | |||||||||
| 27 | 026S0138 | 1 | Tube - Union to Front Carburetter | Upto Engine No. G21797 | |||||||||
| 28 | 026S0139 | 1 | Tube - Union to Valve | Upto Engine No. G21797 | |||||||||
| 29 | 026S0140 | 1 | Tube - Valve to Distributor | Upto Engine No. G21797 | |||||||||
| 30 | 026S0135 | 1 | Union - 4-way | Upto Engine No. G21797 | |||||||||
| 026S0166 | 1 | Tube - Rear Carburetter to Distributor | Upto Engine No. G21797 | ||||||||||
| 026S0165 | 1 | Union - 3-way | Upto Engine No. G21797 | ||||||||||
| 046S6343 | 1 | Sleeve | Upto Engine No. G21797 |
