 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||

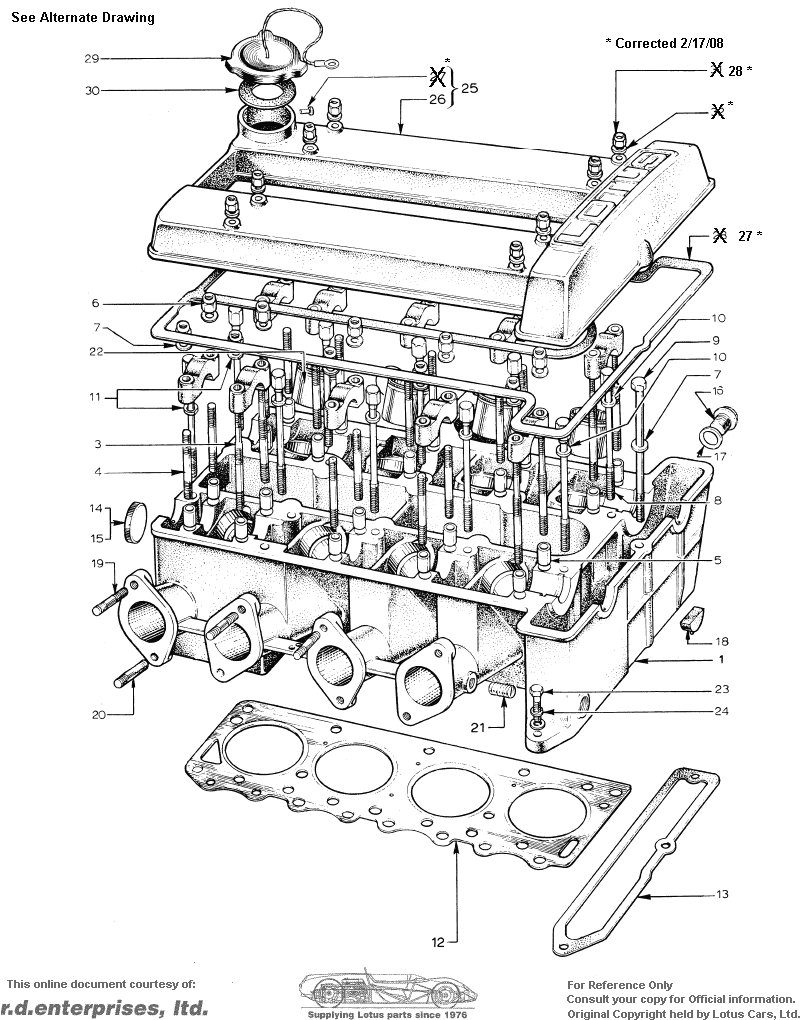

| 026E0703 | 1 | Replaced by A026E0705 | |||||||||||
| 1 | A026E0705 | 1 | Cylinder Head - Bare (Weber - Std. & S/E) | ||||||||||
| B026E0703 | 1 | Cylinder Head - Bare (Stromberg - S/E & Emission) | |||||||||||
| D026E0703 | 1 | Cylinder Head - Bare (Stromberg - Super S/E) | |||||||||||
| E026E0703 | 1 | Cylinder Head - Bare (Weber - Super S/E) | |||||||||||
| A026E0729 | 1 | Cylinder Head - Without Camshafts, Tappets & Shims (Weber - Std. & S/E) | |||||||||||
| B026E0729 | 1 | Cylinder Head - Without Camshafts, Tappets & Shims (Stromberg - S/E & Emission) | |||||||||||
| D026E0729 | 1 | Cylinder Head - Without Camshafts, Tappets & Shims (Stromberg - Super S/E) | |||||||||||
| E026E0729 | 1 | Cylinder Head - Without Camshafts, Tappets & Shims (Weber - Super S/E) | |||||||||||
| 3 | 026E0318 | 8 | Stud - Cam Cover to Cylinder Head | From October 1970 | |||||||||
| 4 | 026E0319 | 12 | Stud - Bearing Cap to Cylinder Head | From October 1970 | |||||||||
| 5 | 026E0320 | 20 | Dowel Ring - Bearing Cap Locnting | ||||||||||
| 6 | YUNF050F (114547-ES) | 20 | Nut - Bearing Cap | ||||||||||
| 026E0317 | 10 | Cap - Camshaft Bearing | |||||||||||
| 7 | A05W1206 | 20 | Washer - Bearing Cap | ||||||||||
| 026B0027 | 10 | Bolt - Cylinder Head (replaced by 026B0027A) | |||||||||||
| 8 | 026E0027A | 10 | Bolt - Cylinder Head | ||||||||||
| 9 | 026E0029 | 1 | Bolt - Cylinder Head (Front Timimg Cover) | ||||||||||
| 036M6243 | 1 | Washer - Cylinder Head (Front Timimg Cover) | |||||||||||
| 10 | 026E0028 | 8 | Washer - Cylinder Head Bolt | ||||||||||
| 11 | 026E0031 | 1 | Washer - Cylinder Head Bolt (rear) | ||||||||||
| 12 | 026E0026 | 1 | Cylinder Head Gasket | ||||||||||
| 13 | 026E0032 | 1 | Cylinder Case Gasket - Timing Case | ||||||||||
| 14 | 74113-S2 | 5 | Expansion Plug ¾" dia. | Upto Engine No. ? | |||||||||
| 358063-ES | 4 | Expansion Plug ¾" dia. | From Engine No. ? | ||||||||||
| 15 | A026E6122 | 1 | Expansion Plug 1" dia. | ||||||||||
| 16 | 026E0046 | 2 | Plug - Oil Gallery | ||||||||||
| 17 | 026E0048 (AGS11388) | 2 | Crush Washer | ||||||||||
| 18 | 026E0002 | 4 | Plug - Camshaft Bore | ||||||||||
| 19 | A026E6027 (102/10) | 8 | Stud - Carburetter to Cylinder Head (Weber) | Upto Engine No. 7799 | |||||||||
| A026E6027 (102/10) | 6 | Stud - Carburetter to Cylinder Head (Weber) | From Engine No. 7800 | ||||||||||
| 20 | 026S0098 | 2 | Stud - Carburetter to Cylinder Head (Weber) | From Engine No. 7800 | |||||||||
| 026E0367 | 1 | Vacuum Connection | |||||||||||
| 21 | A026E6061 (353052-ES) | 1 | Plug | ||||||||||
| 22 | 026E0324 | 8 | Sleeve - Cam Follower | Not in original manual. Added 2/17/08 from Elan+2 Parts Manual. | |||||||||
| 23 | XUCB0516 | Bolt | |||||||||||
| 24 | L05W0000 | Washer | |||||||||||
| 25 | 026E0702 | 1 | 1 | 1 | 1 | Camshaft Cover Assembly - Blue | |||||||
| 026E0702B | 1 | 1 | 1 | Camshaft Cover Assembly - Green | |||||||||
| 026E0702D | 1 | Camshaft Cover Assembly - Black | |||||||||||
| 026E0702E | 1 | 1 | Camshaft Cover Assembly - Red | ||||||||||
| 26 | C026E0702 | 1 | Camshaft Cover Assembly - Red 'Big Valve' | ||||||||||
| 27 | A026E0001 | 1 | Gasket, Caashaft Cover | ||||||||||
| 28 | YUFN040F | 8 | Nut, Camshaft Cover to Cylinder Head | ||||||||||
| A026E6050 | 7 | Washer, Camshaft Cover to Cylinder Head | |||||||||||
| 036E6018 | 1 | Oil Filler Cap (replaced by A026E0415) | |||||||||||
| 29 | A026E0415 | 1 | Oil Filler Cap | ||||||||||
| 30 | 026E0325 | 1 | Seal - Oil Filler Cap |
