 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||

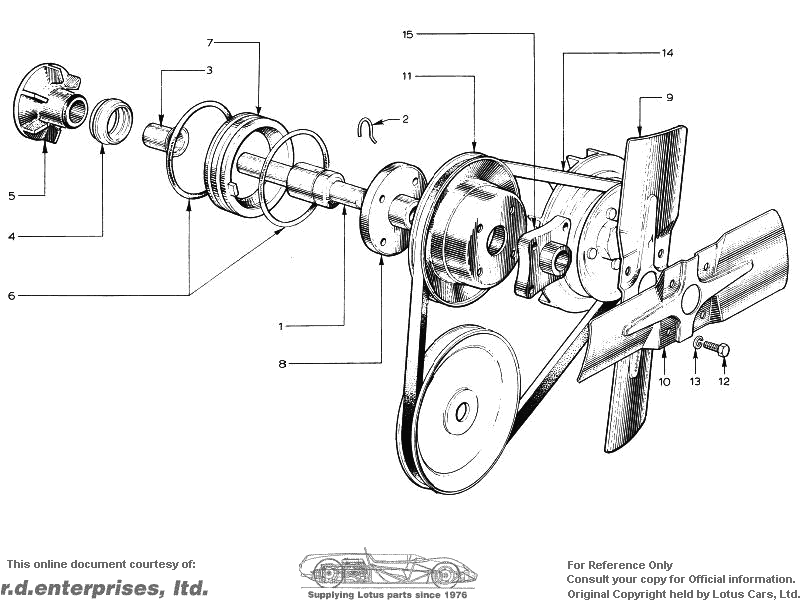

| 026E6000 | 1 | Water Pump Assembly (and repair Kit) | |||||||||||
| 1 | A026E6049 (105E8576B) | 1 | Shaft | ||||||||||
| A026E6038 (105E8576B) | 1 | Retainer (replaced by 691F8K537A) | |||||||||||
| 2 | 691F8K537A | 1 | Retainer | ||||||||||
| 3 | A026E6020 (105E8550) | 1 | Slinger | ||||||||||
| 4 | 105E8564B | 1 | Seal Assembly | ||||||||||
| A026E6048 (105E8512B) | 1 | Impellor (replaced by A026E6126 and A026E6127) | |||||||||||
| A026E6127 | 1 | Disc | |||||||||||
| 5 | A026E6126 | 1 | Impellor | ||||||||||
| 6 | 116648ES | 2 | 'C' Ring | ||||||||||
| 7 | 026E0362 | 1 | Insert | ||||||||||
| A026E6021 (105E8567C) | 1 | Hub (replaced by 691E8553) | |||||||||||
| 8 | 691E8553 | 1 | Hub | ||||||||||
| 9 | 036E6000 | 1 | Fan Blade - Inner (metal) | ||||||||||
| 12 | A026E6006 | 4 | Bolt, Metal Fan | ||||||||||
| 13 | E830034-S71 | 4 | Washer, Metal Fan | ||||||||||
| 10 | 026B6008 | 1 | Fan | ||||||||||
| 026E6009 | 4 | Bolt | |||||||||||
| 026E6010 | 4 | Washer | |||||||||||
| A026E6065 (105E8509B) | 1 | Pulley (replaced by 691E8509AA) | |||||||||||
| 11 | 691E8509AA | 1 | Pulley | ||||||||||
| 14 | 026E0353 | 1 | Belt, Fan | ||||||||||
| E830034S71 | 4 | Washer | |||||||||||
| 15 | 026E6005 | 1 | Fan Spacer | ||||||||||
| 026E6000 | 1 | Repair Kit |
