 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||

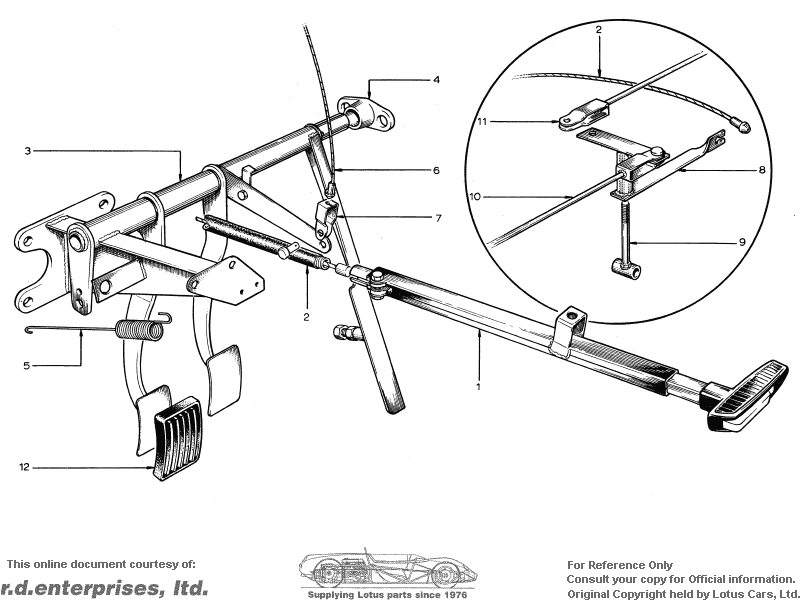

| 1 | A026J0704 | 1 | + | Handbrake Lever Assembly | |||||||||
| A026J0705 | 1 | + | Handbrake Lever Assembly | ||||||||||
| 026J0005 | - | Replaced by A026J0005 together with: 1 off 036J0010 Lever Tube 1 off 036J0011 Lever Spindle 1 off 036J0012 Distance Tube | Upto Chassis No. ? | ||||||||||
| 2 | A026J0005 | 1 | Handbrake Cable Assembly | ||||||||||
| 3 | A026J0707 | 1 | + | Pedal Assembly | |||||||||
| A026J0708 | 1 | + | Pedal Assembly | ||||||||||
| XUCB0524 | 4 | Bolt, Pedal Assembly to Body - Front | |||||||||||
| A05W1007 | 4 | Washer, Pedal Assembly to Body - Front | |||||||||||
| YUFN050F | 4 | Nut, Pedal Assembly to Body - Front | |||||||||||
| XUCB1016 | 2 | Bolt, Pedal Assembly to Body - Rear | |||||||||||
| YUFN100F | 2 | Nut, Pedal Assembly to Body - Rear | |||||||||||
| A03W0906 | 2 | Washer, Pedal Assembly to Body - Rear | |||||||||||
| 026B0104 | 5 | Spacer, Pedal Assembly to Body - Rear | |||||||||||
| 4 | 026J0025 | 1 | Bracket - Pedal Assembly Support | ||||||||||
| 026J6046 | 1 | Bush - Pedal Assembly Support Bracket | |||||||||||
| XUCB0420 | 2 | Bolt, Pedal Support Bracket to Body | |||||||||||
| A04W0904 | 2 | Washer, Pedal Support Bracket to Body | |||||||||||
| 028J0028 | 2 | Spacer, Pedal Support Bracket to Body | |||||||||||
| A04W2006 | 2 | Washer, Pedal Support Bracket to Body | |||||||||||
| YUFN040F | 2 | Nut, Pedal Support Bracket to Body | |||||||||||
| 5 | 026J0017 | 2 | Spring - Pedal Return | ||||||||||
| 6 | 026S0702 | 1 | + | Throttle Cable (Weber) | From Chassis No. ? | ||||||||
| A026S0702 | 1 | + | Throttle Cable (Weber) | ||||||||||
| B026S0702 | - | Replaced by B050S0702 | |||||||||||
| B050S0702 | 1 | + | Throttle Cable (Stromberg) | ||||||||||
| 026S0703 | 1 | + | Throttle Cable (Weber) | Upto Chassis No. ? | |||||||||
| A026S0703 | 1 | + | Throttle Cable (Weber) | From Chassis No. ? | |||||||||
| B026S0703 | 1 | + | Throttle Cable (Stromberg) | ||||||||||
| A036S0703 | 1 | Throttle Cable (Stromberg) | |||||||||||
| 7 | A036S6167 | 1 | Clevis | ||||||||||
| A036S6169 | 1 | Clevis Pin | |||||||||||
| 026J0010 | - | Replaced by 036J0010 | Upto Chassis No. ? | ||||||||||
| A026J0010 | - | Replaced by 036J0010 together with: 1 off 036J0011 Lever Spindle 1 off 036J0012 Distance Tube 1 off A026J0005 Handbrake Cable | From Chassis No. ? to ? | ||||||||||
| 8 | 036J0010 | 1 | Lever Tube | From Chassis No. ? | |||||||||
| 026J0011 | - | Replaced by 036J0011 | Upto Chassis No. ? | ||||||||||
| A026J0011 | - | Replaced by 036J0011 together with: 1 off 036J0010 Lever Spindle 1 off 036J0012 Distance Tube 1 off A026J0005 Handbrake Cable | From Chassis No. ? to ? | ||||||||||
| 9 | 036J0011 | 1 | Lever Spindle | From Chassis No. ? | |||||||||
| XUCB0436 | 1 | Bolt, Lever Spindle to Chassis | |||||||||||
| W0136 | 1 | Distance Tube, Lever Spindle to Chassis | |||||||||||
| YUFN040F | 1 | Nut, Lever Spindle to Chassis | |||||||||||
| 10 | 026J0013 | 1 | Actuating Rod LH | ||||||||||
| 11 | 026J0014 | 1 | Actuating Rod RH | ||||||||||
| 036J0050 | 2 | Clevls Pin | |||||||||||
| 026J6061 | 2 | Split Pin | |||||||||||
| 036J6030 | 2 | Split Pin | |||||||||||
| 026J0015 | 2 | Bush - Caliper Lever - Handbrake | |||||||||||
| XUFS1012 | 2 | Bolt | |||||||||||
| YUFN030F | 2 | Nut | |||||||||||
| 12 | 036J6029 | 2 | Pad - Pedals |
