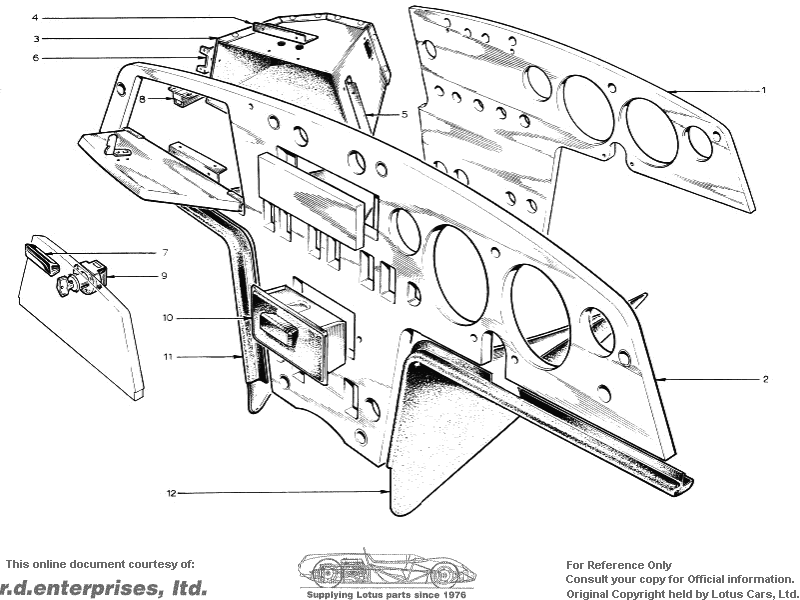

 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| A026B0237 | 1 | 1 | + | Facia Panel | Upto 5810 | ||||||||
| A026B0238 | 1 | 1 | + | Facia Panel | Upto 5810 | ||||||||
| 036B0237 | 1 | + | Facia Panel, Coupe only | From 5811 Upto 7399 | |||||||||
| 1 | 036B0238 | 1 | + | Facia Panel, Coupe only | From 5811 Upto 7399 | ||||||||
| 045B0237 | 1 | + | Facia Panel, Convertible only | From 5811 Upto 7399 | |||||||||
| 045B0238 | 1 | + | Facia Panel, Convertible only | From 5811 Upto 7399 | |||||||||
| A036B0237 | 1 | + | Facia Panel | From 7400 Upto 7894 | |||||||||
| A036B0238 | 1 | + | Facia Panel | From 7400 Upto 7894 | |||||||||
| B036B0237 | 1 | + | Facia Panel, Replaced by C036B0237 | From 7895 | |||||||||
| C036B0237 | 1 | + | Facia Panel | From 7895 | |||||||||
| B036B0238 | 1 | + | Facia Panel, Replaced by C036B0238 | From 7895 | |||||||||
| 2 | C036B0238 | 1 | + | Facia Panel | From 7895 | ||||||||
| D036B0238Z | 1 | + | Facia Panel | ||||||||||
| D036B0237 | 1 | + | Facia Panel | 1969 Federal | |||||||||
| E036B0237 | 1 | + | Facia Panel, Replaced by F036B0237 | 1970 Federal | |||||||||
| F036B0237 | 1 | + | Facia Panel | 1970 Federal | |||||||||
| XUFS0624 | 2 | 2 | Screw | Upto 5810 | |||||||||
| 036B6001 | 2 | 2 | Nut | Upto 5810 | |||||||||
| 026B6012 | 2 | 2 | Cupwasher | Upto 5810 | |||||||||
| XUFS0416 | 4 | 4 | Screw | Upto 5810 | |||||||||
| LUFN040F | 4 | 4 | Nut | Upto 5810 | |||||||||
| L04W0000 | 4 | 4 | Lockwasher | Upto 5810 | |||||||||
| 026B0732 | 1 | 1 | Bracket | Upto 5810 | |||||||||
| 026B0239 | 1 | 1 | Angle | Upto 5810 | |||||||||
| 036B0732 | 1 | 1 | 1 | 1 | Bracket | From 5811 | |||||||
| 036B0239 | 1 | 1 | 1 | 1 | Angle | From 5811 | |||||||
| XUFS0524 | 6 | Screw | |||||||||||
| LUFN050F | 6 | Nut | |||||||||||
| L05W0000 | 6 | Lockwasher | |||||||||||
| 036B0562 | 6 | 6 | Bush, Panel Fixing | From 7895 | |||||||||
| PUCS0524 | 1 | 1 | Screw | From 7895 | |||||||||
| MUCS0516 | 3 | 3 | Screw | From 7895 | |||||||||
| PUCS0516 | 2 | 2 | Screw | From 7895 | |||||||||
| LUCN050F | 2 | 2 | Nut | From 7895 | |||||||||
| L05W0000 | 2 | 2 | Lockwasher | From 7895 | |||||||||
| 036B1659 | 1 | 1 | Adaptor Plate | From 7895 | |||||||||
| 434 | 1 | 1 | 'Pop' Rivet | From 7895 | |||||||||
| 026B0195 | 1 | 1 | + | Glove Box, Replaced by A026B0195 | Upto 5810 | ||||||||
| A026B0195 | 1 | 1 | + | Glove Box | Upto 5810 | ||||||||
| 026B0196 | 1 | 1 | + | Glove Box, Replaced by A026B0196 | Upto 5810 | ||||||||
| A026B0196 | 1 | 1 | + | Glove Box | Upto 5810 | ||||||||
| 036B0195 | 1 | 1 | 1 | 1 | + | Glove Box | From 5811 | ||||||
| 3 | 036B0196 | 1 | 1 | 1 | 1 | + | Glove Box | From 5811 | |||||
| 026B04l8 | 1 | 1 | Bracket, Upper | Upto 5810 | |||||||||
| 026B0419 | 1 | 1 | Bracket, Lower | Upto 5810 | |||||||||
| KWDS0204 | 5 | 5 | Wood screw | Upto 5810 | |||||||||
| KSTS0812 | 4 | 4 | Screw | Upto 5810 | |||||||||
| 026B6012 | 4 | 4 | Cupwasher | Upto 5810 | |||||||||
| 4 | 036B0621 | 2 | 2 | 2 | Bracket, Upper and Lower | From 5811 | |||||||
| 5 | 036B0622 | 1 | 1 | 1 | Bracket, Inner | From 5811 | |||||||
| 6 | 036B0556 | 1 | 1 | 1 | Bracket, Outer | From 5811 | |||||||
| KWDS0204 | 8 | 8 | 8 | Wood screw | From 5811 | ||||||||
| 036B1530 | 1 | Bracket, Lower | 1970 Federal | ||||||||||
| 036B1531 | 1 | Bracket, Upper | 1970 Federal | ||||||||||
| 036B1532 | 1 | Bracket, Inner | 1970 Federal | ||||||||||
| 036B1533 | 1 | Bracket, Outer | 1970 Federal | ||||||||||
| KWDS0204 | 8 | Wood screw | 1970 Federal | ||||||||||
| B026B0200 | 1 | 1 | 1 | 1 | Catch Plate, Glove Box Lock | Upto 7894 | |||||||
| KSTS0206 | 2 | 2 | 2 | 2 | Screw, Catch Plate | Upto 7894 | |||||||
| 026B6052 | 1 | 1 | 1 | 1 | Retainer, Catch Plate | Upto 7894 | |||||||
| KWDS0406 | 2 | 2 | 2 | 2 | Screw, Catch Plate | Upto 7894 | |||||||
| 036B0639 | 2 | 2 | 2 | 2 | Washer, Catch Plate | Upto 7894 | |||||||
| 026B6053 | 1 | 1 | Handle | Upto 5810 | |||||||||
| KUCS0612 | 2 | 2 | Screw | Upto 5810 | |||||||||
| 026B6012 | 2 | 2 | Cupwasher | Upto 5810 | |||||||||
| 026B6054 | 1 | 1 | 1* | 1* | Lock Assembly, *Convertible only on Series 3 | Upto 7894 | |||||||
| 7 | 036B6284 | 1 | Handle | From 5811 Upto 7399 | |||||||||
| 036B6285 | 1 | Catch | From 5811 Upto 7399 | ||||||||||
| KUCS0612 | 2 | Screw | From 5811 Upto 7399 | ||||||||||
| 026B6012 | 2 | Cupwasher | From 5811 Upto 7399 | ||||||||||
| 036B1306 | 1 | 1 | Pull Tag, replaced by 036B6284 | From 7400 | |||||||||
| 7 | 036B6284 | 1 | Handle | From 7895 | |||||||||
| 036B6285 | 1 | 1 | Catch, replaced by 036B6150 | From 7400 | |||||||||
| 8 | 036B6150 | 1 | Tutch Latch | From 7895 | |||||||||
| DUFS1012 | 1 | 1 | Screw | From 7400 | |||||||||
| 036B6034 | 1 | 1 | Cupwasher | From 7400 | |||||||||
| KUCS0612 | 2 | 2 | Screw | From 7400 | |||||||||
| 026B6012 | 2 | 2 | Cupwasher | From 7400 | |||||||||
| PSTS0406 | 2 | Screw, Hook to Lid | From 7895 | ||||||||||
| 026B6051 | 2 | Cupwasher, Hook to Lid | From 7895 | ||||||||||
| PSTS0406 | 2 | Screw, Tutch Latch | From 7895 | ||||||||||
| 036B6059 | 2 | Nut, Tutch Latch | From 7895 | ||||||||||
| 9 | 036B0171 | 1 | Lock Assembly | 1970 Federal | |||||||||
| 7 | 036B6284 | 1 | Handle | 1970 Federal | |||||||||
| KUCS0612 | 2 | Screw | 1970 Federal | ||||||||||
| 026B6012 | 2 | Cupwasher | 1970 Federal | ||||||||||
| 036B6114 | 2 | Hole Blank (not Federal) | From 7895 | ||||||||||
| 10 | 036B6029 | 1 | 1 | Ashtray | From 7895 | ||||||||
| KWDS0604 | 2 | 2 | Screw | From 7895 | |||||||||
| 11 | 036B0475 | 1 | 1 | 1 | 1 | Heater valance, LH | From 5811 | ||||||
| 12 | 036B0476 | 1 | 1 | 1 | 1 | Heater valance, RH | From 5811 | ||||||
| 036B6028 | 8 | 8 | 8 | 8 | Plug | From 5811 | |||||||
| PSTS0606 | 1 | 1 | 1 | 1 | Screw | From 5811 | |||||||
| DWDS0608 | 7 | 7 | 7 | 7 | Screw | From 5811 |
