INTERIOR PARTS

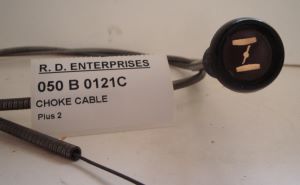

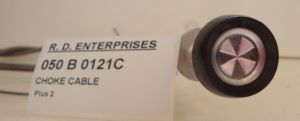

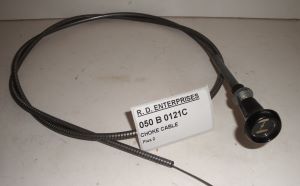

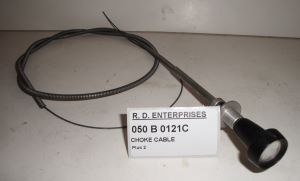

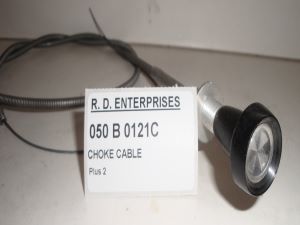

Choke Cable, Elan Plus 2

NOS choke cable. Knob has convex plastic lens over symbol.
Length of outer cable sheath from tip of knob 43"
Length of inner cable from tip of knob 49"

Ref. 50B0121C  $52.00

Specify "B" knob

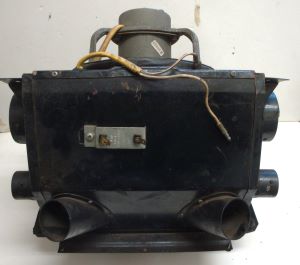

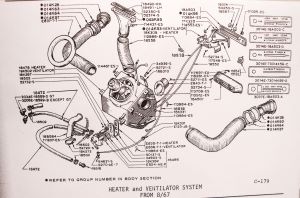

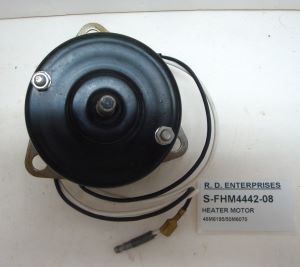

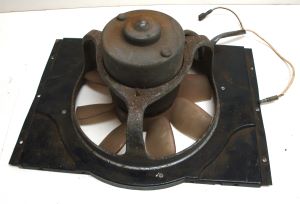

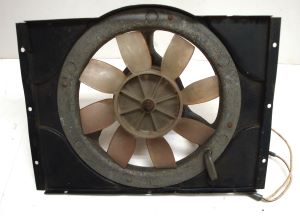

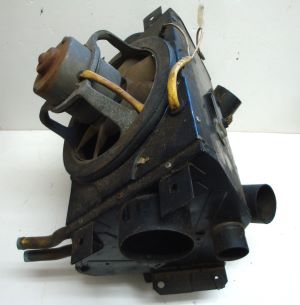

Cortina Mk2 Heater Unit and Fan Motor

Used heater parts. Both motors work.

Ref. FO-3034E-18478 Heater Unit  $25.00

Ref. FO-3034E-18478M  Motor  $10.00

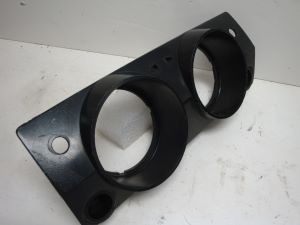

Cortina Mk1  Instrument Panel

Good used Cortina instrument panel. Cortina Mk1 @ 1965-66.

Ref. FO-113E-70044U  $45.00

Cortina Mk1 Pedal Assembly

Used brake & clutch pedal assembly for LHD Mk1 Cortina. Not rusted, pedals move freely.

Ref. FO-120E-2467  $45.00

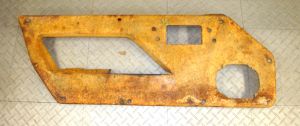

Europa Door Trim Panel

Bare fiberglass used door panel for Europa S2 and TwinCam LH side. Decent condition.

Ref. 54B0721U  $25.00

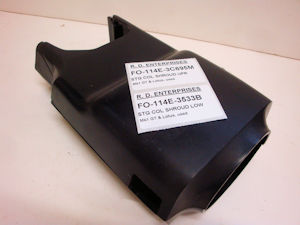

Mk1 Cortina Lotus & GT LHD

Steering column shroud, upper and lower, used, good condition

Ref. FO-114E3533B and 114E3C695M  $30.00/pair

A079U4170F  Esprit S1/S2 Facia Finisher, RH side for RHD cars  Qty 1, $10.00 (See Esprit S1/S2 parts manual, illustration VB, item #5)

BODY PARTS

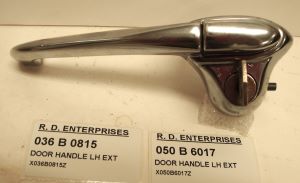

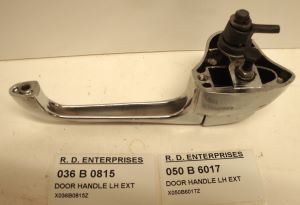

Door Handle, LH Exterior

NOS outside door handle for Elan S3 or early Elan +2. This is the door handle with integral key lock, and this example is complete with lock and key. This is a new-old-stock part and has not been fitted to a car. I don't know if there's a difference between the S3 and +2 handle; they look the same to me but we have this one in stock under 050B6017.

Ref. 50B6017  $120.00

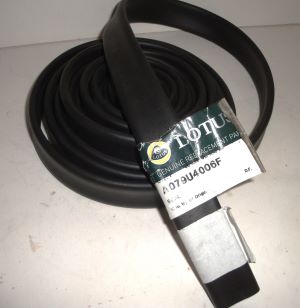

Bonnet or Tailgate Seal
Esprit S1/S2

NOS Lotus original seal for Esprit S1/S2 bonnet or tailgate. Flattened round seal section, very flexible and in new condition.
Last one available!

Ref. 79U4006OE  $95.00

Make offer

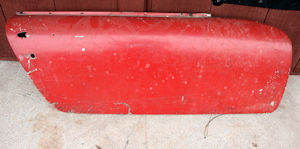

Elan +2 Door Shell

Used door shell

Ref. 50B0756U RH Door   $150.00

Engine Cover

Aftermarket engine cover for carbureted Esprit Turbo (up to 1985)

Black fiberglass part has some white spots (you can see them in the photo) that do not wash off.

Ref. 82B4461NF  Make offer

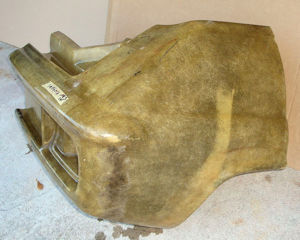

Short Rear RH

New factory Lotus body panel
Short rear RH for Europa TwinCam

Ref. 74B6016  Make offer

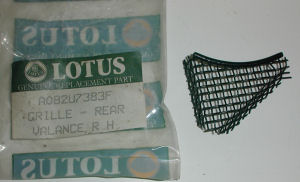

Grille for RH rear valance.

Ref. 82U7383  $3.00
One available.

Only used on the Esprit S2; measures @ 5" long x 1/2" wide.


Ref. 79B4118   $3.00

RH tinted quarter glass, fits Esprit S1, S2 and Turbo through 1987. Used glass in very good condition.

Ref. 79U4026  $88.00

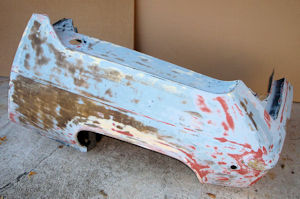

Full Rear LH

Used full rear LH for Europa TwinCam

Ref. 74B6045U  Make offer

SUSPENSION PARTS

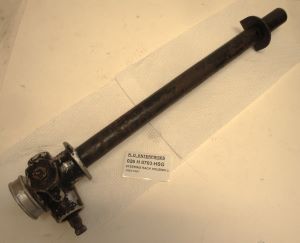

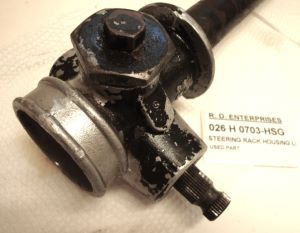

Used Elan rack tube with pinion gear, nut and thrust pad.

Ref. 26H0703-HSG  $75.00

We also have a bare rack tube (no other bits attached at all). $30.00

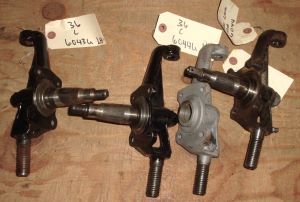

Used vertical links for Elan KO hubs and Elan +2, some with stub axle.

Ref. 36C6043U  LH vertical link $95.00 (one available)

Ref. 36C6044U  RH vertical link  $75.00 (four available)

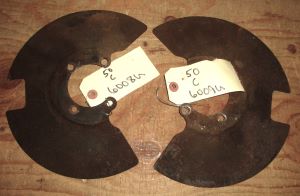

Used front caliper dust shields for Elan +2.

Ref. 50C6008  $5.00
Ref. 50C6009  $5.00

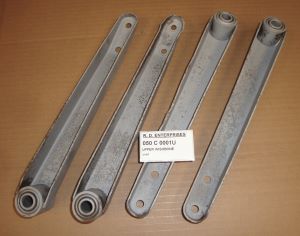

Good used upper wishbones for all Elan +2. Ball joint mounting holes in good condition.

Ref. 50C0001U  $30.00 each

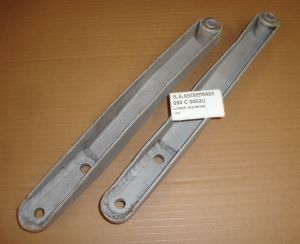

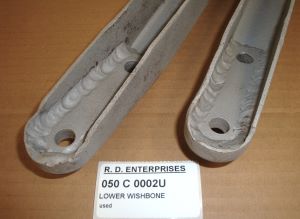

Good used lower wishbones for all Elan +2. Mounting holes for trunnion and shock have been nicely repaired. Only two available.

Ref. 50C0002U  $60.00 each

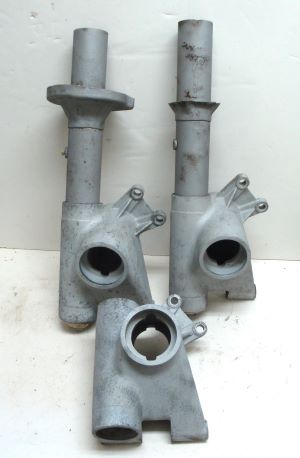

Used LH Elan rear bearing housings. These three are all early housings which use the same inner and outer bearings. All are in usable condition, each has its own issues. Threads for shock insert gland nut are good and caliper mounts do not show any cracks. See below for brief description. Please contact us if you need additional information

Ref. 26D0005U

1 with strut tube and original spring platform, some damage at inner circlip groove and bottom tube plug has been repaired  $275.00

1 with strut tube and platform has been almost removed, everything else good $250.00

1 alum bearing housing only, good condition but totally bare (bottom tube plug was removed too) $125.00

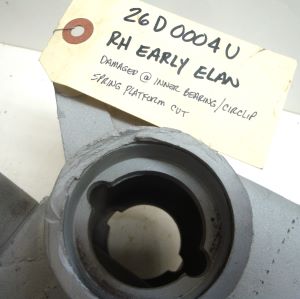

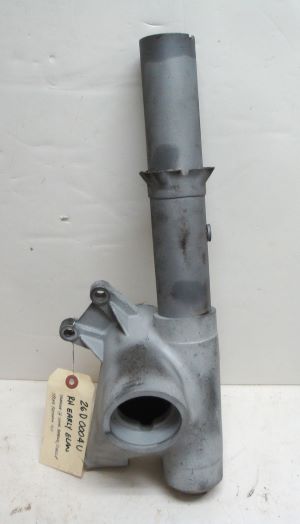

Used RH Elan rear bearing housing, top threads for shock insert gland nut are good, caliper mounts are good, spring platform has been almost completely removed, damage at inner circlip groove.

Ref. 26D0004U  $150.00

We have three good used Elan anti-roll bars. One bar is 5/8" diameter, one bar is 11/16" diameter.

Ref. 26C0003U  $80.00 each

Springs

9" free length x 140-lb rate x 2.5" ID
Ref. SPG-09CS140   $75.00/pair, one pair available

10" free length x 140-lb rate x 2.5" ID
Ref. SPG-10CS140  $75.00/pair, one pair available

8.5" free length x 140-lb rate x 1.9" ID
Ref. SPG-085SM140  $75.00/pair  SOLD

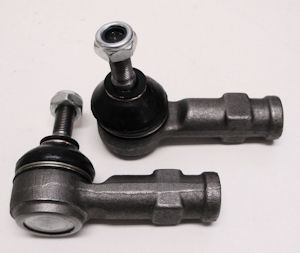

MGB/MGC Tie Rod Ends

New tie rod end pair for all MGB and MGC.
9/16"-18 thread

Ref. MISC-MG168  $20.00/PAIR

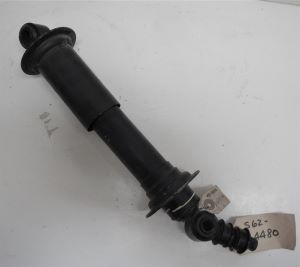

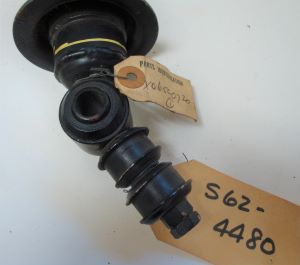

Original Armstrong Front Shock
Europa S2 type 65 and TwinCam

One NOS Armstrong shock #S62-4480 for Federal Europa S2, also fits TwinCam and TC Special. Includes the steel tube shield that is part of the top spring abutment. No spring.

Ref. 65C0730NOS  $80.00

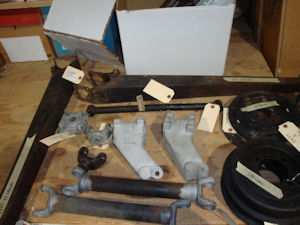

Used rear suspension parts
Europa TC Special

One RH rear bearing housing

Two radius arms (trailing arms)

Two intermediate driveshafts

One inboard driveshaft yoke

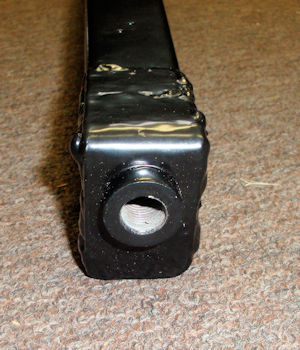

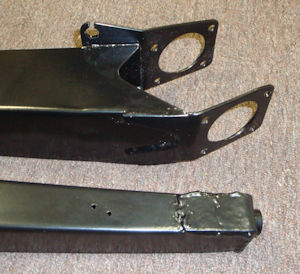

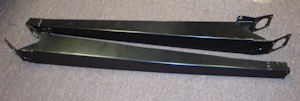

Europa S1/S2 Radius Arm Pair

Two good used radius arms that have been modified to accept a 1/2" rod end at the forward mount. Arms are in very good condition and appear to be powder-coated. Get more suspension adjustment for your autocross or track car, and eliminate any movement from the original flexible radius arm mounts.

Ref. 46D01312M  Pair of adjustable radius arms  $200.00

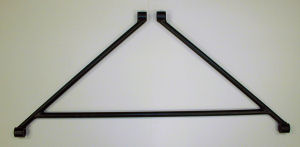

Rear A Frame

Caterham Seven rear A-frame
Fits cars with DeDion rear axle. Sorry for the previous confusion in my description for this part, and thanks to John Donohoe for his assistance.

Ref. 007D0014   Make offer

EM1436 - two available  $10.00 each
Rear suspension bush, upper arm rear

EM1487 - two available  $10.00 each
Front suspension bush. lower

EM1488 - two available  $10.00 each
Rear suspension bush, lower arm rear

EM1490 - two available  $10.00 each
Rear suspension bush, lower arm front  43.4mm diameter

EM1491 - two available  $10.00 each
Rear suspension bush, lower arm front  50.4mm diameter

EM1493 - two available  $10.00 each
Rear suspension bush, upper arm front

ENGINE PARTS including sensors, fuel, cooling & ignition systems

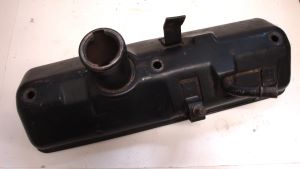

Renault Valve Cover

Used stamped steel valve cover with air cleaner bracket for Renault engine in Europa S1 & S2. Good condition, not rusted or warped.

Ref. 46E6390U  $225.00

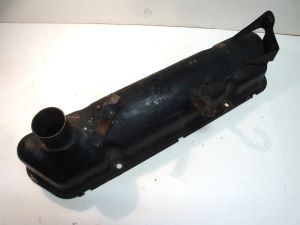

Ford Pushrod Valve Cover

Used stamped steel valve cover with air cleaner bracket for English Ford 1498cc engine

Ref. FO-116E6449  $15.00

Rocker Shaft Assembly

Used rocker shaft assembly, Ford 1500 & 1600

Ref. FO-105E6563  $15.00

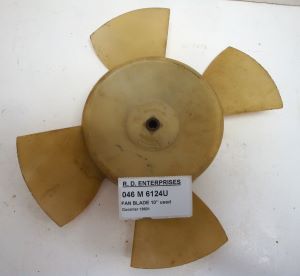

Fan Blade

Used plastic 4-blade fan used on Europa up to @ March 1970. Ducellier 19601 Made in France

Ref. 46M6124U $24.00

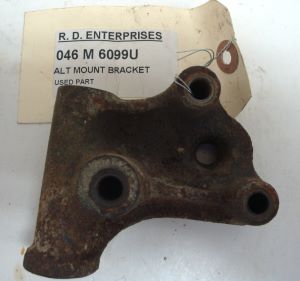

Alternator Mounting Bracket

Used bracket used on Europa S1 and S2.

Ref. 46M6099U $10.00

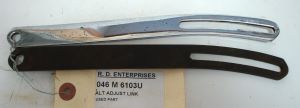

Alternator Adjusting Link

Used adjusters for Europa S1 and S2. Two available: one plated, one plain.

Ref. 46M6103U-Plated  $25.00
Ref. 46M6103U-Plain     $15.00

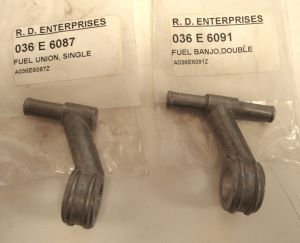

Dellorto Carb Fuel Banjos

Single and double fuel line banjos for Dellorto DHLA

Ref. 36E6087  Single  $5.00
Ref. 36E6091  Double  $5.00

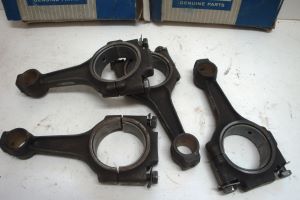

EnFo Connecting Rods

Set of four used connection rods for English Ford 1200cc.
Ford #109E 6200C

Ref. FO-109E6200  $30.00/set of four

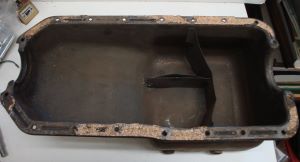

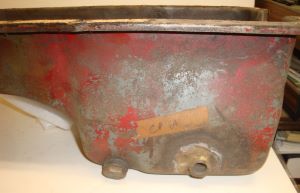

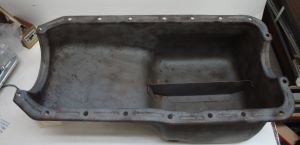

Used TC Sump

This is a used sump for the early rope-seal block (4-bolt crank). Sump has been modified with a bung for an oil temp sensor and has an additional home-made baffle. This sump appears to be in basically good shape. One sump available.

Ref. 26E6675U  $200.00

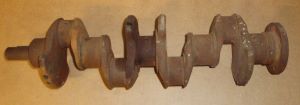

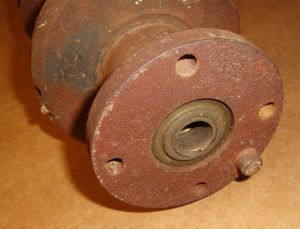

TwinCam 4-bolt Crankshaft

Used rusty crankshaft that must be cut before use. Appears to be standard size now but rusty.

Ref. 26E0330U4  $25.00

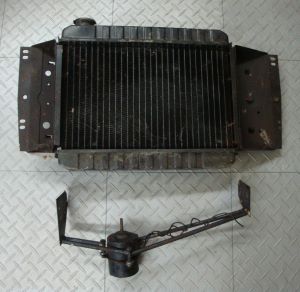

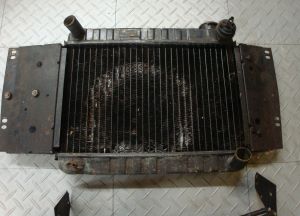

Elan S4 Radiator

Used radiator with mounting brackets, cooling fan motor and mounting frame. No fan blade.
Radiator tanks look ok but the core has been damaged as seen in the lower photo.

Ref. 50K0001U  $50.00

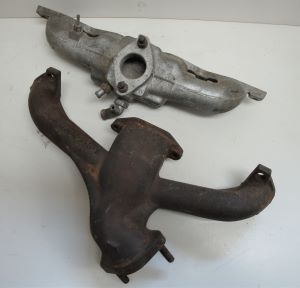

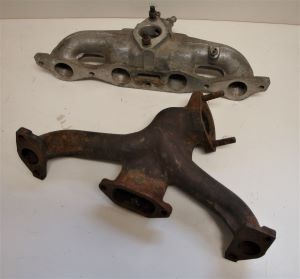

Cortina 1600 Manifolds

Used Cortina 1600 pushrod inlet and exhaust manifolds

Ref. FO-2737E-9425  Inlet Manifold  $15.00

Ref. FO-2737E-9430  Exhaust Manifold  $10.00

Please take these parts before they are scrapped!

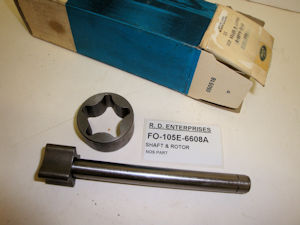

Oil Pump Shaft & Rotor

NOS Ford part fits oil pumps on TC and pushrod

Ref. FO-105E6608  $20.00

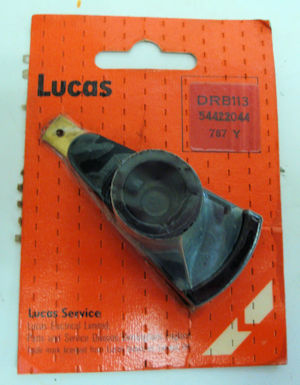

NOS Lucas Rotor

Rotor arm to suit Lucas 35D8 Distributors 41393 and 41633 on Morgan Plus 8 with Rover V8 engine from 1970 to 1975, Rover 3500S, maybe some Rolls Royce, others
DRB113, 54422044

Ref. DRB-113  $15.00

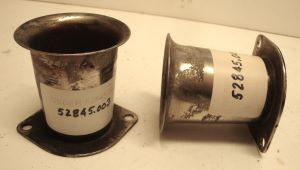

Weber IDF Velocity Stacks

Used velocity stacks (trumpets) for Weber 40-IDF and 44-IDF carbs.

Ref. WE-52845.003  $10.00/pair

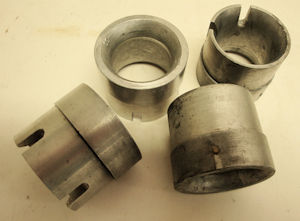

Weber 40DCOE Chokes

NOS and good used chokes for Weber 40DCOE carbs: 30mm, 32mm and 36mm.

Ref. WE-72302.300  $12.00 each
Ref. WE-72302.320  $12.00 each
Ref. WE-72302.360  $15.00 each

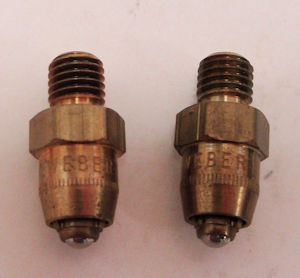

Weber DCOE
Needle Valves

NOS 1.50 and 2.00 float needle valves, original Weber parts.

Ref. WE-79503.150  $5.00 each
Ref. WE-79503.200  $5.00 each

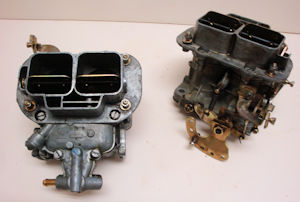

Weber DGV Carb

We have one used Weber DGV carb (made in Spain).

Ref. WE-DGV Carb $100.00

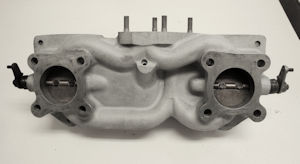

Secondary Throttle Body

Complete used Stromberg secondary throttle body, clean and in good condition. Fits Federal TwinCam engines for Elan, Elan +2 and Europa TC.

Ref. 26S0110U  $100.00

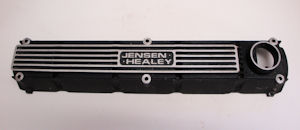

Jensen Healey Cam Cover

NOS cam cover. Only one available.

Ref. JH-94041  $100.00

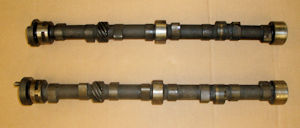

Used Jackshaft

Used jackshaft/camshaft

Ref. 26E0352U $115.00

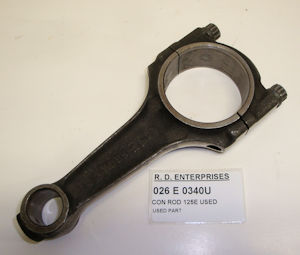

125E Con Rod

Used 125E connecting rod

Ref. 26E0340U  $100.00

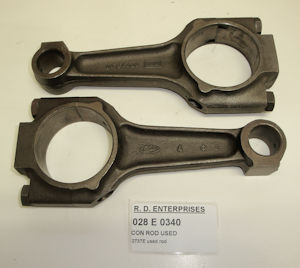

2737E Con Rod

Used connecting rods for 1600 pushrod Kent engine

Ref. 28E0340U  $35.00 each

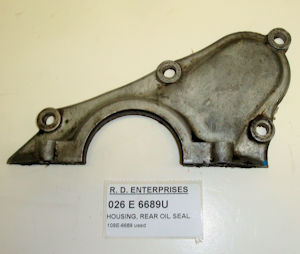

Rear Seal Housing

Used rear seal housing for rope seal

Ref. 26E6689U  $10.00

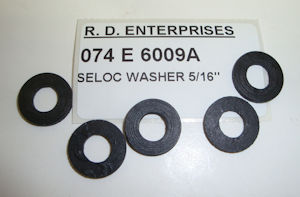

5/16" Seloc Washers

Larger than the 1/4" Seloc washers used on the TC cam cover, these Selocs fit 5/16" fasteners. Use where you want to seal and lock a 5/16" fastener.

Ref. 74E6009A  $1.00 each

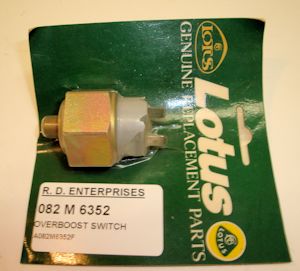

Overboost switch for 1988-92 Esprit Turbo.
NOS part

Ref. 82M6352  $26.00

Only one available

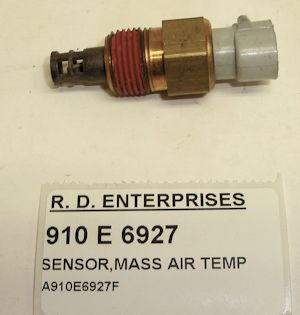

Ref. 910E6927  $29.00

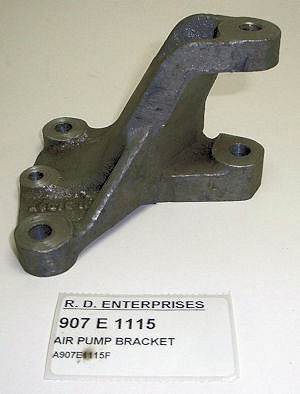

air pump bracket, Elite/Eclat
non-illustrated part in Elite parts manual, plate ED
this bracket is required when the water pump does not have an integral air pump bracket

Ref. 907E1115  $5.00

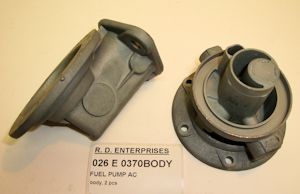

Fuel Pump Body

NOS AC fuel pump body; two pieces. These are original "Made in England" parts for the original glass-bowl TwinCam fuel pump.

Ref. 26E0370BODY  $20.00

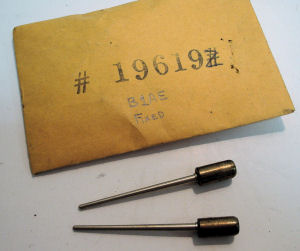

Stromberg Needles

Pair of new Stromberg carb needles, "fixed" (not adjustable) B1AE

Ref. C-B19619  $9.00 each (Two available)

Esprit Turbo Clearance Parts

910 E 1564  Locking Plate, exhaust pipe to turbo  Qty.1, $31.00

910 E 1650   Stud, Turbo Outlet: stainless steel studs attach turbo to exhaust pipes: Turbos through 92    Qty 6, $9.00 each

910 E 1782   Hose adaptor: Adaptor to attach between air pump filter and air pump hose: Turbos to 87   Qty 1, $2.00

910 E 1959   Fuel Union, Dellorto: Union between carburetor and fuel pipe:  Dellorto Carbs to 92    Qty1, $6.00

910 E 2179   Stainless Steel Stud M6  x 35mm: Used to attach wastegate pipes to adaptor: Turbos to 87   Qty 3, $10.00 each

910 E 6681   Accelerator Pump Body 27mm: Does not come with ball, spring or plug: Turbos to 92   Qty 1, $6.00

910 E 6733   Clamp Plate:  Injector clamp plate: Turbos to 92    Qty 1, $.50

GEARBOX, DIFF, WHEELS & DRIVELINE PARTS

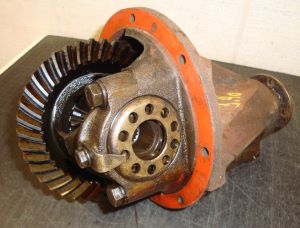

Used Differential Assembly

Good condition, well lubricated 3.9:1 diff for Elan, Plus 2, Lotus Cortina or other Cortina rear.

Ref. 26R0100U39  $500.00

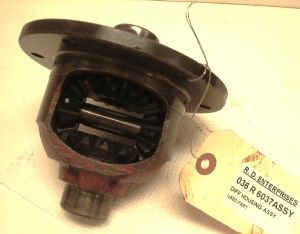

Used Differential

Used Elan/Cortina differential, gears included but no ring or pinion, no bearings. Just as shown in the photo. No signs of rust, everything turns freely.

Ref. 36R6037U  $125.00

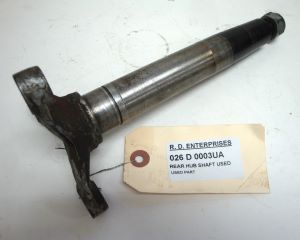

Rear Hub Shaft

Used Elan rear hub shaft. Everything looks good including threads and key slot. This is from an Elan after 26/4108 (@ 1964) so it has the larger pcd for the rear disc and the shaft uses two narrow bearings.

Ref. 26D0003U  $40.00

Intermediate Drive Shafts

Used shafts for Elan +2, one with failsafe tubes.

Ref. 50D0015U $20.00 each

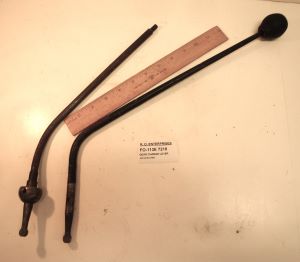

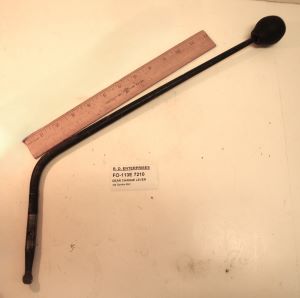

Gearchange Levers

Used Cortina Mk1 gearchange lever.
Contact us if you need additional information.

Ref. FO-113E-7210U  $25.00

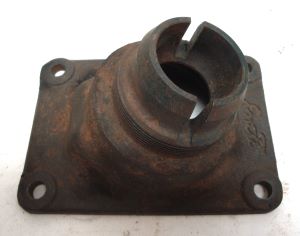

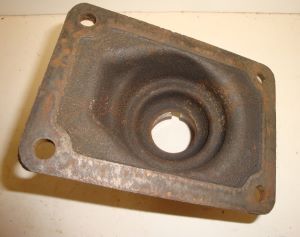

Gearchange Cover

Used gearchange cover for an EnFo gearbox that does not have a reverse lever located in this cover. This cover is not correct for an Elan.
Ford number in casting 105E7205B

Ref. FO-105E-7205U  $20.00

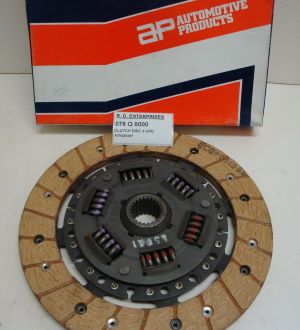

Eclat 4-Speed Clutch Disc

NOS Genuine AP 8.5" clutch disc for Eclat 4-speed (not 5-speed) transmission. 8.5" diameter, 1" x 23t spline

Ref. 76Q6000  $110.00

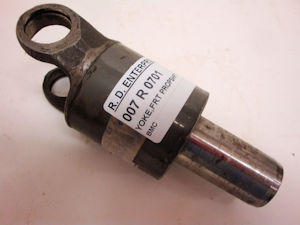

Lotus 7 front propshaft yoke
for BMC gearbox


Ref. 007R0701  $50.00

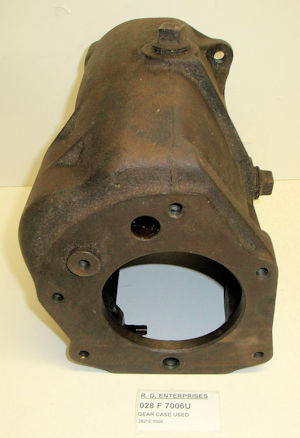

Used gear case, single rail (Cortina, etc.)

Ref. 28F7006U  $150.00

BRAKES & HYDRAULICS

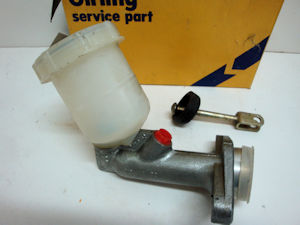

Girling Brake Master Cylinder

NOS brake master cylinder, .7" bore, angled plastic large reservoir, 3/8"-24 outlet port, horizontal mounting flange
Austin Maxi 1500 & 1750, RHD, 1969-78

Ref. HY-64068863  $40.00

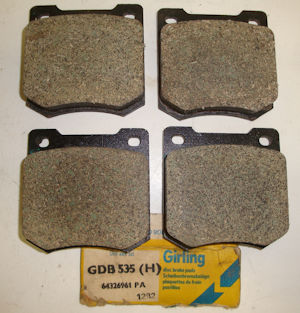

Brake Pad Set

NOS Girling brake pad set for Jensen Healey and some Cortinas, maybe more. Pads fit Girling 14LF calipers. Girling GDB535, JH 97385

Ref. JH-97385  $25.00

Banjo Fitting

NOS Girling brass banjo fitting, 3/8"-24 inlet threads, accepts 3/8" banjo bolt.

Ref. HY-64474288  $12.00

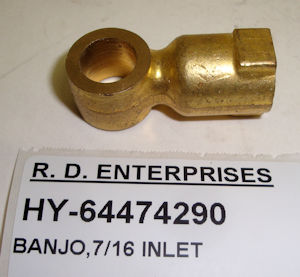

Banjo Fitting

NOS Girling brass banjo fitting, 7/16"-20 inlet threads, accepts 3/8" banjo bolt.

Ref. HY-64474290  $12.00

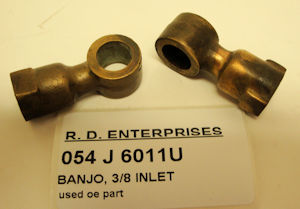

Banjo Fitting

Genuine original Girling brake banjo. Banjo accepts 3/8"-24 inlet and would use a 3/8" banjo bolt (not included). These are good condition original brass fittings, ideal for restoration.

Ref. 54J6011U  $20.00 each

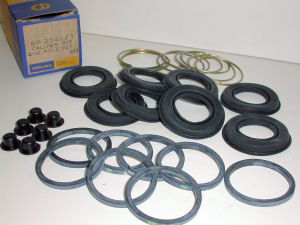

Girling Caliper Kit SP2541

NOS original Girling rear caliper kit containing seals, dust boots and dust boot retaining rings for two calipers.  36mm bore, four piston caliper.
Volvo 142, 144, 145 8/66-74, 164 1968-74
Volvo 242, 244, 245 8/74-7/75
Volvo P1800 ES 9/68-10/73

Ref: SP 2541  $10.00  (Only one kit available)

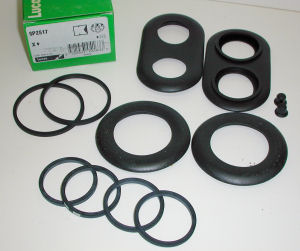

Girling Caliper Kit SP2517

NOS original Girling front caliper kit containing seals, dust boots for two calipers. 38/54mm bore, three piston caliper.
Jaguar XKE 4.2 9/68-71,
Alfa Romeo Guilia 1600 1963-68
Volvo P1800 6/64-8/68.


Ref: SP 2517  $14.00 (Only one kit available)

Girling Type 16P Caliper
#64032714

New Old Stock left-side caliper as used on early Elan Plus 2 (also AH3000, Triumph GT6, TR4A, TR6 and Rover 2000TC).  Caliper bore is 2.125" (54mm)

Ref. 64032714  $200.00

ELECTRICAL PARTS including lamps, lenses, instruments

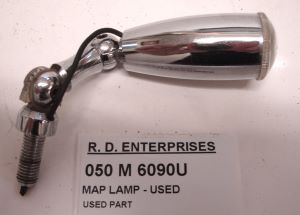

Elan Plus 2 Map Light

Used map light, chrome is in very good condition.

Ref. 50M6090U  $45.00

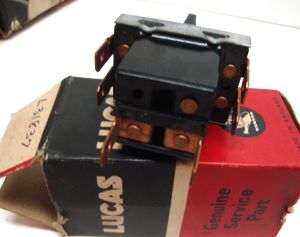

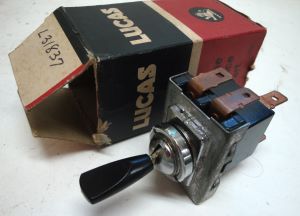

Lucas Toggle Switch

Genuine Lucas Made in England 3-position toggle switch. Six terminals, round retaining nut.  Only one available.
Same as Lotus 036B6018
Lucas 31837, model 57A

Ref. LU-31837  $44.00

Lucas Voltage Regulator Cover

NOS original Lucas voltage regulator cover for RB106 regulator. Very good condition with damaged original box.
Lucas 391600

Ref. 36M6017C  $25.00

We also have a used cover available for $5.00. This cover is scratched and not suitable for a concours car.

Lucas Voltage Regulator

NOS original Lucas voltage regulator model RB106 with screw terminals (not spade terminals). This NOS part has never been fitted to a car but it has not been tested and I cannot guarantee it.

Ref. 36M6017R  $35.00

Side Marker Rims

Used rims for side marker lamps used on Europa S2 & TC, Elan S4, Elan +2, Elite, Eclat, Esprit S1, S2 and early Turbo.
These are good used original metal (not plastic) rims.

Ref. 36M6281RIMU
We have 5 very good condition $36.00 each
We have 4 good condition $30.00 each

Used Elan S2/S3 Tail Lamps

Both lamps are complete with rims, lenses and bases. Rims are pitted but not too bad, lenses are scuffed but not cracked, bases are rusted but serviceable. Both lamps have an amber turn signal lens.

Tail lamp base for LH lamp is missing mounting studs and one bulb socket needs repair (missing wire).

Tail lamp base for RH lamp needs repair of one bulb socket (missing wire).

Ref. 26M6032U-LH Used Lamp $200.00

Ref. 26M6032U-RH Used Lamp $250.00

Buy both lamps for $400.00

Contact us for additional information or photos.

Used Tail Lamp Base

Lucas 807 Federal tail lamp base. Chrome base is in good condition. This lamp base has been modified with an additional bulb holder between the main reflector and the reverse lamp.
RH Elan S4, LH Europa S2 & TC, LH Elan +2

Ref. 36M6054BUA  $70.00

Used Tail Lamp Base

Lucas 807 Federal tail lamp base. Some pitting of the chrome base, pretty decent condition. Bulb holders are intact.
RH Elan S4, LH Europa S2 & TC, LH Elan +2

Ref. 36M6054BU  $70.00

NOS Tail Lamp Pair

New Old Stock tail lamp pair. Genuine Lucas 807 made in England Federal tail lamps and lenses. These lamps have never been fitted to a car. Single bulb for stop/tail/directional and a reverse lamp.
Elan S4, Europa S2 & TC, Elan +2

36M6053 & 36M6054 NOS Lamp Pair
Ref. 36M6053/4  $1000.00

NOS Federal Tail Lamps
Ref. 36M6054

Brand new original Lucas tail lamps for Federal Elan S4, Elan +2, Europa S2, TwinCam and TC Special

We only have one side:
Elan RH
Elan +2 and Europa LH

None of these are perfect. Each lens has some scratch or manufacturing defect but these are the nicest lamps and lenses I've seen in decades. The bases are very good and of course have no rust or pitting.

No, I don't believe that we will find some hidden stash of 36M6053 lamps to make pairs.

Ref. 36M6054  $450.00

Smiths Oil Pressure Transmitter

60 lb transmitter with 1/4" BSP threads
Typically fitted to Jaguars but can be used in other applications

Ref. S-PTR1801-06  $44.00

Rebuilt Lucas Alternator

Lucas 23548A, model 16AC alternator

Originally fitted to 1968 MGB, 1969 Sunbeam Arrow Coupe, Sedan, Alpine GT, maybe others.

This alternator does not have an internal regulator; requires external regulator.

Ref. LU-23548RBLT  $75.00

Lucas Relay

NOS Blue Lucas relay #33301, 8 different terminals, 7 single, one double wire fitting. "day/nite relay"

EPC Dimming Relay, fits Ferrari 365 GT 2+2 1968-1971
Jensen Healey 1972-76, Interceptor 1973-76 both as a dual level lighting relay.

Ref. LU-33301  $50.00

Lucas Ignition/Lighting Switch

NOS Lucas part #31270

Combined PRS3 Ignition and Lighting Switch 31270 as fitted to a variety of British cars, including Austin Healey Sprite and Austin A40 Countryman. Supplied without barrel & key or knob. Use  your existing barrel & key, and knob. BMC # 3H1557

Ref. LU-31270  $60.00

Lucas Alternator

Lucas 16AC alternator

Ref. LU-16AC  $50.00

Part No. 54520, Model L760

Genuine NOS Lucas lamp "Made in England" - not a repro.  Flasher lamp (single filament bulb) was fitted to 1967 Triumph Spitfire Mk3 and maybe others. Lamp diameter @ 2-3/4".

Ref. LU54520 - $48.00  (one available)

Tail Lamp Assembly
Mk1 Cortina

Used LH tail lamp assembly, all red lenses, lens with reflector is cracked, other two lenses look ok. Rim is badly damaged. Lamp base, bulb sockets and boots appear to be in good condition. Gaskets are badly dried out and cracked.

Ref. 28M1340  $140.00

Cortina Mk1 Front Lens

Right-hand front lens for early (pre airflow) Cortina Mk1
Very good condition

Ref. FO-113E 13208A  $36.00

Cortina Mk1 Front Lamp base

Left-hand front lamp base for airflow Cortina Mk1. Rim included. Lamp base is in good condition but has corrosion on outside. Rim is in poor shape.

Ref. FO-113E 13207  $40.00

Cortina ? Lens

Focusing lens; looks new.
One available.
FO-LENS1

Sale Price $2.00

Cortina ? Lens

Focusing lens; looks new but the mounting tab end may be damaged.
One available.
FO-LENS2

Sale Price $2.00

Part Number 54702583, WGB225

WGB225 Elan 1969-73
use with Lucas 14W 75664 (round can) motor
marked 110 degree, 46 teeth

Ref. 54702583 $49.00

Part Number 54720621, WGB269

NOS gear and shaft assembly
Triumph TR7 TR8 Headlamp Motor Shaft & Gear
LUCAS 54720621 WGB269 for 15W motor
38T gear

Ref. ICN-WGB 269  $10.00

Part Number 54702587, WGB229

NOS gear and shaft assembly, listed by Lucas for 1968 Lotus Europa with Lucas 14W 75664 (round can) wiper motor.
Gear is marked 130-degree.
May be for single wiper system...

Ref. 54702587  $45.00
(two available)

Lucas WHB101, 520160

Fits Lucas 14W #75664 (round can) wiper motor as used on Elan S4, Europa TC, late Elan +2

Ref. ICN-WHB 101  $10.00

Part No. 54417459

Genuine NOS Lucas England part.  Distributor shield with low tension lead was originally used on Jaguar 22D and 25D distributors.

Ref. LU54417459 - $22.00  (one available)

MISCELLANEOUS PARTS

Lotus Esprit S1 Scale Model

1/18 scale AutoArt #75301 Esprit Type 79, yellow, RHD

NOS scale model, new in box. Model is still fastened to base and it was only removed from the box for photos. Very well-proportioned model of the early Esprit, opening doors, engine cover and bonnet, detailed light-brown interior.

Ref. MODEL-0079-AAY  $125.00

Only one available.

Lotus Esprit Turbo Scale Model

1/18 scale AutoArt #70066 Esprit Turbo Essex, RHD

NOS scale model, new in box. Model is still fastened to base and it was only removed from the box for photos. Very well-proportioned model of the early Esprit Turbo in the Essex colors, opening doors, engine cover and bonnet, detailed red interior.

Ref. MODEL-0082-AAE  $125.00

Only one available.

Lotus Elise Scale Model

1/18 scale Chrono H1020 1997 Lotus Elise "Norfolk Mustard"

NOS scale model, new in box. Model is still fastened to base and it was only removed from the box for photos. Opening doors and engine cover with good interior and engine detail.

Ref. MODEL-0111-Y  $125.00

Esprit Turbo
SIR Service Manual

NEW Service Notes Manual Section WA/WC  SIR
Side Impact Restraints (airbags)
Contains both driver side only and dual airbag systems

Ref. J082T0327J  $49.00

Elise Mk2 Service Notes

Elise 2001 onwards, not Federal

Ref. A117T0327J  $49.00
