 |  |  |  |  |  |  |  | Notes Bulletin Reference | |||

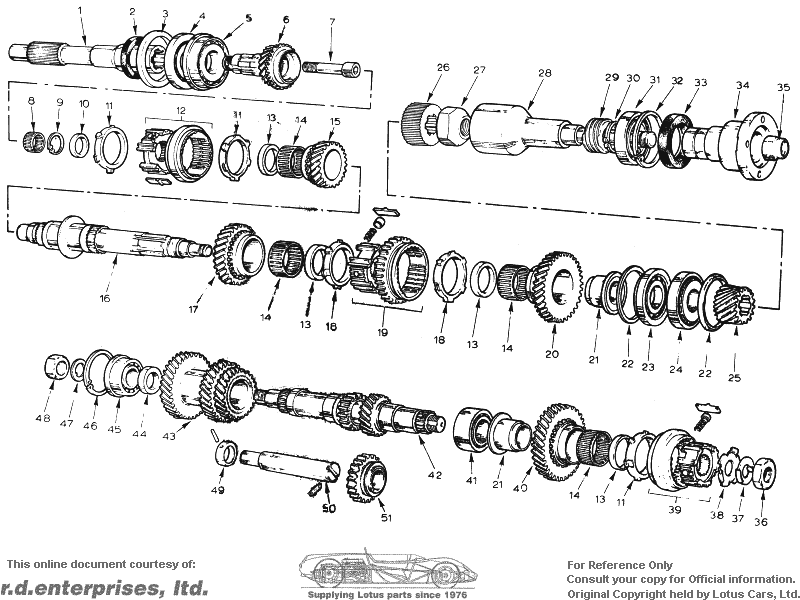

| 5 Speed Gearbox | |||||||||||
| 1 | A050F0247Z | 1 | Shaft. Input, | ||||||||
| 2 | A050F6076Z | 1 | Seal. Oil, - Front Cover | ||||||||
| 3 | A050F0251Z | 1 | Ring. Spacer, | ||||||||
| 4 | A050F6071Z | 1 | Bearing. Ball, | ||||||||
| 5 | A050F6070Z | 1 | Bearing. Roller, | ||||||||
| 6 | A050F0283B | 1 | Shaft. 1st. Motion, | ||||||||
| 7 | 432H | 1 | Screw. Hexagonal Socket Head, | ||||||||
| 8 | A050F6016Z | 1 | Bearing. Needle Roller, | ||||||||
| 9 | A050F6018Z | 1 | Circlip. | ||||||||
| 10 | A050F6034Z | AR | Spacer. Set of, | ||||||||
| 11 | A050F6043Z | 3 | Ring. Baulk, | ||||||||
| 12 | A050F6045Z | 1 | Assembly. 3rd ./4th. Synchroniser, | ||||||||
| 13 | A050F6028Z | 4 | Spacer. | ||||||||
| 14 | A050F6027Z | 4 | Bearing. Needle Roller, | ||||||||
| 15 | A050F6044Z | 1 | Gear. 3rd. Speed, | ||||||||
| 16 | A050F6030Z | 1 | Shaft. 3rd. Motlon, | ||||||||
| 17 | A050F6040Z | 1 | Gear. 2nd. Speed, | ||||||||
| 18 | A050F6041Z | 2 | Ring. Baulk, | ||||||||
| 19 | A050F6061Z | 1 | Assembly. 1st./2nd. Synchroniser, | ||||||||
| 20 | A050F6039Z | 1 | Gear. 1st. Speed, | ||||||||
| 21 | A050F6031Z | 1 | Hub. Bearing - Standard | ||||||||
| A050F6036Z | 1 | Hub. Bearing - Oversize | |||||||||
| A050F6096Z | 1 | Hub. Bearing - Undersize | |||||||||
| 22 | A050F6006Z | 2 | Ring. Snap - 0.0635 to 0.0645 ins. (1.62 to 1.65 mm)Colour Code'orange'. | ||||||||
| A050F6007Z | 2 | Ring. Snap - 0.065 to 0.066 ins. (1.66 to 1.69 ram) Colour code 'blue'. | |||||||||
| A050F6008Z | 2 | Ring. Snap - 0.0665 - 0.0675 ins. (1.70 to 1.72ram) Colour code 'none'. | |||||||||
| A050F6009Z | 2 | Ring. Snap - 0.068 to 0.069 ins. (1.74 to I .76 mm) Colour code 'green'. | |||||||||
| 23 | A050F6072Z | 1 | Bearing. Ball, | ||||||||
| 24 | A050F6073Z | 1 | Bearing. Roller, | ||||||||
| 25 | A050F0269B | 1 | Pinion. Final Drive, | ||||||||
| 26 | A050F0249Z | 1 | Adaptor. Output Shaft, | ||||||||
| 27 | A050F6033Z | 1 | Nut. Retaining, | ||||||||
| 28 | A050F0248Z | 1 | Shaft. Output, | ||||||||
| 29 | A050F6090Z | 1 | Gear. Speedo Drive, | ||||||||
| 30 | A050F6079Z | 1 | Circlip. | ||||||||
| 31 | A050F6081Z | 1 | Bearing. | ||||||||
| 32 | A050F6078Z | 1 | Circlip. | ||||||||
| 33 | A050F6077Z | 1 | Seal. Oil - Tailshaft Housing, | ||||||||
| 34 | A050F0250Z | 1 | Flange. Output, | ||||||||
| 35 | 221 | 1 | Nut. Retaining, | ||||||||
| 36 | A050F6005Z | 1 | Nut. Retaining, | ||||||||
| 37 | A050F6011Z | 1 | Washer. Lock, | ||||||||
| 38 | A050F6010Z | 1 | Retainer. Synchroniser, | ||||||||
| 39 | A050F6046Z | 1 | Assembly. 5th.Synchroniser, | ||||||||
| 40 | A050F6056Z | 1 | Gear. 5th. Speed, | ||||||||
| 41 | A050F6017Z | 1 | Gear. kayshaft Rear, | ||||||||
| 42 | A050F6019Z | 1 | Layshaft. | ||||||||
| 43 | A050F6029Z | 1 | Laygear. | ||||||||
| 44 | A050F6014Z | 1 | Spacer. Laygear, | ||||||||
| 45 | A050F6025Z | 1 | Gear. Layshaft Front, | ||||||||
| 46 | A050F6024Z | 1 | Circllp. | ||||||||
| 47 | A050F6023Z | 1 | Washer. Lock, | ||||||||
| 48 | A050F6022Z | 1 | Nut. Layshaft, | ||||||||
| 49 | A050F6035Z | 1 | Collar. Idler Shaft, | ||||||||
| A050F6067Z | 1 | Pin. Collar securlng, | |||||||||
| 50 | A050F6050Z | 1 | Shaft. Idlet Gear, | ||||||||
| M350 | 1 | Grubscrew. Securing, | |||||||||
| 51 | A050F6060Z | 1 | Gear. Reverse Idler, |
