 |  |  |  |  |  |  |  | Notes Bulletin Reference | |||

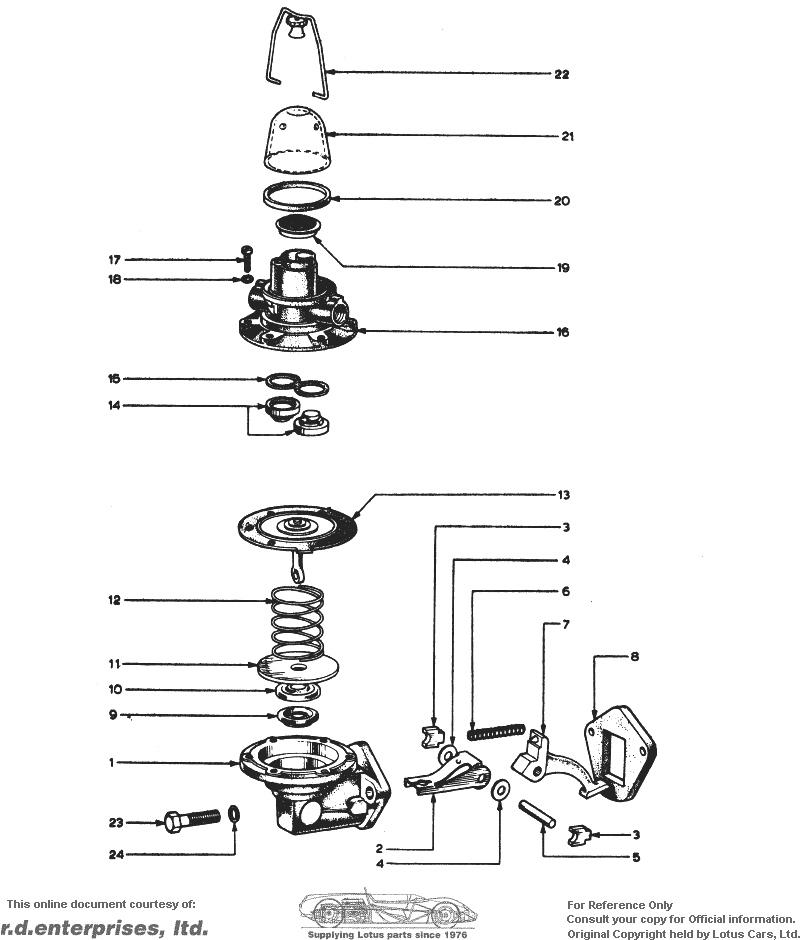

| 026E0370 | 1 | Fuel Pump Assembly | |||||||||
| 1 | 109E9375 | 1 | Body, Lever | ||||||||
| 2 | E93A9381B | 1 | Link Assembly | ||||||||
| 3 | EIADKN9379B | 2 | Retainer, Pin | ||||||||
| 4 | 78E9289 | 2 | Washer | ||||||||
| 5 | EIADKN9378 | 1 | Pin | ||||||||
| 6 | BE9380 | 1 | Spring | ||||||||
| 7 | 109E9376B | 1 | Arm | ||||||||
| 8 | 105E9374 | 1 | Gasket, Pump to Cylinder Block | ||||||||
| 9 | E0TA99399B | 1 | Seal | ||||||||
| 10 | E0TA99401 | 1 | Retainer, Seal | ||||||||
| 11 | E93A9414 | 1 | Washer | ||||||||
| 12 | 856940 | 1 | Spring | ||||||||
| 13 | 109E9398 | 1 | Diaphragm and Pull Rod Assembly | ||||||||
| 14 | 105E9352 | 2 | Valve | ||||||||
| 15 | EIADDN9367 | 2 | Gasket, Valves to Body | ||||||||
| 16 | 105E9351 | 1 | Body, Upper | ||||||||
| 17 | 31628-S2 | 6 | Screw, Upper to Lower Body | ||||||||
| 18 | 34806-S7 | 6 | Lockwasher | ||||||||
| 19 | 109E9365 | 1 | Screen Assembly | ||||||||
| 20 | EIADKN9364A | 1 | Gasket, Filter Bowl | ||||||||
| 21 | EIADKN9355 | 1 | Bowl | ||||||||
| 22 | EIADKN9387B | 1 | Ball Assembly | ||||||||
| 23 | 20406-S2 | 2 | Bolt | ||||||||
| 24 | 34806-S2 | 2 | Lockwasher |
