 |  |  |  |  |  |  |  | Notes Bulletin Reference | |||

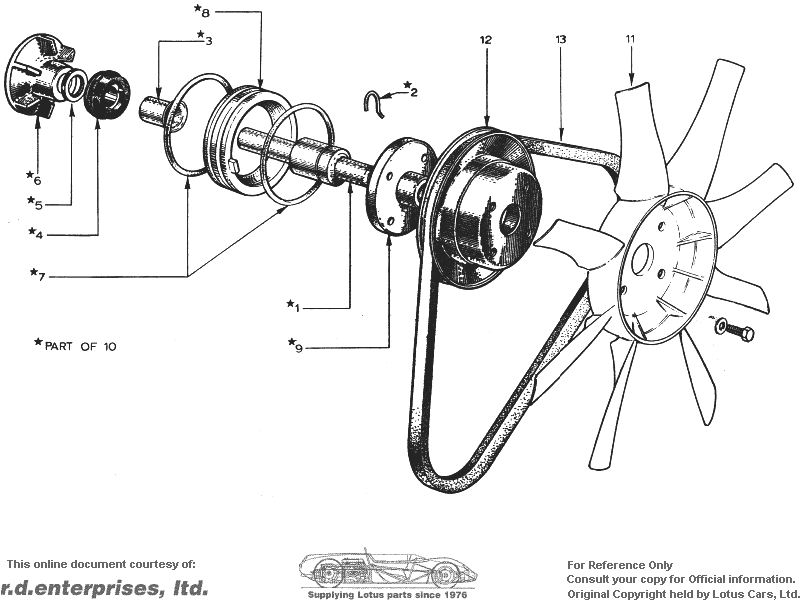

| 026E6000 | 1 | Water Pump Assembly (and repair kit) | |||||||||
| 1 | A026E6049 (105E8530) | 1 | Shaft | ||||||||
| A026E6038 (105E8576B) | 1 | Retainer (replaced by 691F8K537A) | |||||||||
| 2 | 691F8K537A | 1 | Retainer | ||||||||
| 3 | A026E6020 (105E8550) | 1 | Slinger | ||||||||
| 4 | 105E8564 | 1 | Seal | ||||||||
| A026E6048 (105E8512) | 1 | Impellor Assembly (replaced by A026E6126 and A026E6127) | |||||||||
| 5 | A026E6127 | 1 | Disc | ||||||||
| 6 | A026E6126 | 1 | Impellor | ||||||||
| 7 | 116648-ES | 2 | 'O' Ring | ||||||||
| 8 | 026E0362 | 1 | Insert | ||||||||
| A026E6021 (105E8567C) | 1 | Hub (replaced by 691E8553) | |||||||||
| 9 | 691E8553 | 1 | Hub | ||||||||
| 036E6000 | 1 | Blade-Fan, Inner (metal) | |||||||||
| A026E6006 | 4 | Bolt, Metal Fan | |||||||||
| E830034-S71 | 4 | Washer, Metal Fan | |||||||||
| 11 | 026E6008 | 1 | Fan | ||||||||
| 026E6009 | 4 | Bolt | |||||||||
| 026E6010 | 4 | Washer | |||||||||
| A026E6065 (105E8509B) | 1 | Pulley (replaced by 691E8509AA) | |||||||||
| 12 | 691E8509AA | 1 | Pulley | ||||||||
| 13 | 026E0353 | 1 | Belt-Fan |
