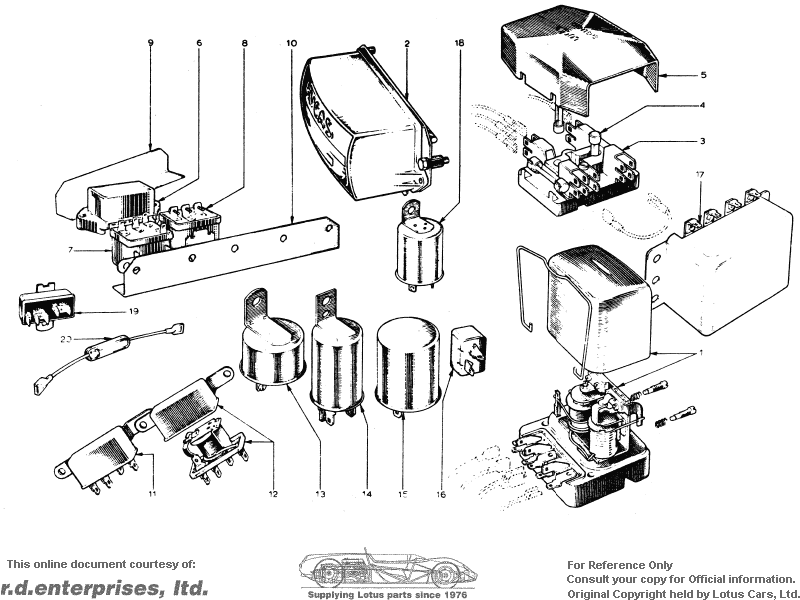

 |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 1 | 036M6017 | 1 | 1 | Control Box | Upto 1588 also installed in 0978, 0982, 0984, 1304, 1310, 1469 and 1470. | ||||||
| 2 | 050M6108 | 1 | 1 | Control Box | From 1589 | ||||||
| 050M6108 | 1 | 1 | Control Box | From 1593 to ? | |||||||
| XUFS1008 | 2 | Screw, Control Box to Body | |||||||||
| A03W0605 | 4 | Washer, Control Box to Body | |||||||||
| YUFN100F | 2 | Nut, Control Box to Body | |||||||||
| 3 | 036M6018 | 1 | Fuse Unit | ||||||||
| RSTS1016 | 1 | Screw, Fuse Unit to Body | |||||||||
| KSTS0412 | 1 | Screw, Fuse Unit to Body | |||||||||
| 4 | 036M6019 | AR | Fuse, 35 amp. | ||||||||
| A050M6167 | AR | Fuse, 5 amp. | |||||||||
| 5 | 036M6247 | 1 | Fuse Cover | ||||||||
| 6 | 050M6092 | 1 | 1 | Fuse Unit | |||||||
| 050M6093 | 1 | 1 | Fuse Unit | ||||||||
| 050M6093 | 1 | 1 | Fuse Unit | ||||||||
| XUFB0324 | 6 | 6 | Bolt, Fuse Unit to Body | ||||||||
| A03W0806 | 6 | 6 | Washer, Fuse Unit to Body | ||||||||
| YUFN030F | 6 | 6 | Nut, Fuse Unit to Body | ||||||||
| 050B1799 | 2 | 2 | Spacer, Fuse Unit to Body | ||||||||
| 7 | 050M6063 | 3 | 3 | 3 | Relay - Side Lamp, Headlamp Main Beam and Headlamp Dip | ||||||
| 036M6026 | 1 | Relay - Headlamp Main Beam | |||||||||
| 8 | 050M6013 | 1 | Relay - Horn | ||||||||
| 9 | 050B1763 | 1 | 1 | 1 | Heat Shield | ||||||
| 036B6123 | 3 | 3 | 3 | Rivet - Heat Shield Mounting | |||||||
| 10 | 050B1764 | 1 | 1 | 1 | Relay Mounting Bracket | ||||||
| 036B6207 | 1 | 1 | 1 | Flasher Unit - Hazard Warning | From ? | ||||||
| 11 | 036M6100(?) | 1 | 1 | 1 | Flasher Unit - Hazard Warning | Upto ? | |||||
| 054M6049 | 1 | Flasher Unit - Hazard Warning | From ? | ||||||||
| 054M6050 | 1 | Bracket - Flasher Unit Mounting | Upto ? | ||||||||
| 12 | 036M6025 | 1 | Relay - Headlamp Flasher | ||||||||
| 036B6026 | - | Relay - Headlamp Flasher (replaced by 050M6063) | |||||||||
| 050M6063 | 1 | Relay - Headlamp Flasher (Continuous rated) | |||||||||
| 050M6064 | - | Bridging Lead - Main Beam Relay (replaced by 050M0107) | |||||||||
| 050M0107 | 1 | Bridging Lead - Main Beam Relay | |||||||||
| RSTS1008 | 4 | Screw, Relays to Body | |||||||||
| 036B6003 | 4 | Nut, Relays to Body | |||||||||
| A050M6170 | 1 | 1 | Relay - Sidelamps | ||||||||
| 13 | 036M6022 | 1 | Flasher Unit - Headlamp | ||||||||
| RSTS1008 | 2 | Screw, Flasher Unit to Body | |||||||||
| 036B6003 | 2 | Nut, Flasher Unit to Body | |||||||||
| 14 | 036M6024 | 1 | Flasher Unit - Direction Indicators | ||||||||
| 036B6123 | 1 | Tap-it Fastener - Flasher Unit to Body | Upto 1750 | ||||||||
| 036M6272 | 2 | Clip, Flasher Unit to Body | From 1751 | ||||||||
| 036B6001 | 1 | Nut, Flasher Unit to Body | From 1751 | ||||||||
| W0092 | 1 | Cup Washer, Flasher Unit to Body | From 1751 | ||||||||
| KSTS0616 | 1 | Screw, Flasher Unit to Body | From 1751 | ||||||||
| 15 | 036M6334 | 1 | 1 | 1 | Flasher Unit - Hazard Warning | ||||||
| 16 | 036M6300 | 1 | 1 | 1 | Flasher Unit - Direction Incidators | ||||||
| 050M6054 | - | Votlage Stabaliser (replaced by: 050M6096 together with 1 off 050M0106 Earthing Lead 1 off KWDS0608 Screw) | |||||||||
| 17 | A036M6326 | 1 | Relay - Steering Buzzer | ||||||||
| 18 | 050M6125 | 1 | Buzzer - Steering Lock | ||||||||
| 19 | 050M6096 | 1 | Voltage Stabiliser | ||||||||
| 20 | 050M6107 | 1 | Choke - Stabiliser | ||||||||
| 050M0106 | 1 | Earthing Lead | |||||||||
| KWDS0608 | 1 | Screw - Stabiliser to Facia |
