 |  |  |  |  |  |  |  | Notes Bulletin Reference | |||

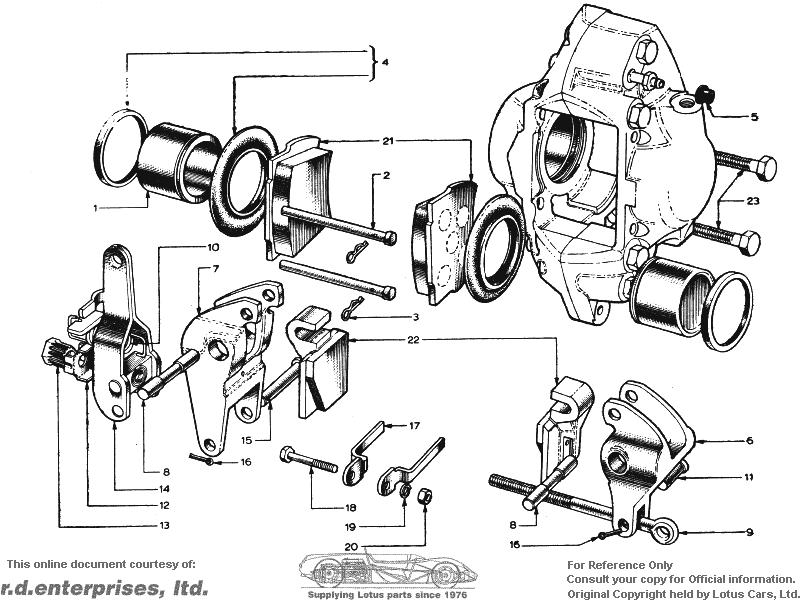

| 050J6002 | 1 | Caliper - Rear LH | |||||||||
| 050J6003 | 1 | Caliper - Rear RH | |||||||||
| 1 | 036J6035 | 4 | Piston | ||||||||
| 2 | 036J6032 | 4 | Pin - Pad Retaining | ||||||||
| 3 | 036J6033 | 4 | Clip - Pad Retaining | ||||||||
| 4 | 036J6051 | AR | Repair Kit | ||||||||
| 5 | 036J6034 | 2 | Cap - Bleed Screw | ||||||||
| 6 | 036J6036 | 2 | Lever - Clamping, Outer | ||||||||
| 7 | 036J6037 | 2 | Lever - Clamping, Inner | ||||||||
| 8 | 036J6038 | 4 | Pin, Pivot - Handbrake to Caliper | ||||||||
| 9 | 036J6039 | 2 | Tie Rod | ||||||||
| 10 | 036J6040 | 2 | Return Spring | ||||||||
| 11 | 036J6041 | 2 | Clevis Pin - Tie-Rod to Lever | ||||||||
| 12 | 036J6042 | 2 | Clip | ||||||||
| 13 | 036J6043 | 2 | Adjuster Nut, Handbrake | ||||||||
| 14 | 036J6044 | 2 | Operating Lever, Handbrake | ||||||||
| 15 | 036J6045 | 2 | Pin - Operating Lever to Clamping Lever | ||||||||
| 16 | 036J6046 | 2 | Cotter Pin | ||||||||
| 17 | 036J6047 | 4 | Centralising Strip | ||||||||
| 18 | 036J6048 | 2 | Bolt, Centralising Strip Mounting | ||||||||
| 19 | 036J6049 | 2 | Washer, Centralising Strip Mounting | ||||||||
| 20 | 036J6050 | 2 | Nut, Centralising Strip Mounting | ||||||||
| 21 | 050J6022 | 1 | Pad Set - Rear | ||||||||
| 22 | 036J6063 | 1 | Pad Set - Handbrake | ||||||||
| 23 | 026J6002 | 4 | Bolt - Caliper Mounting |
