 |  |  |  |  |  |  |  | Notes Bulletin Reference | |||

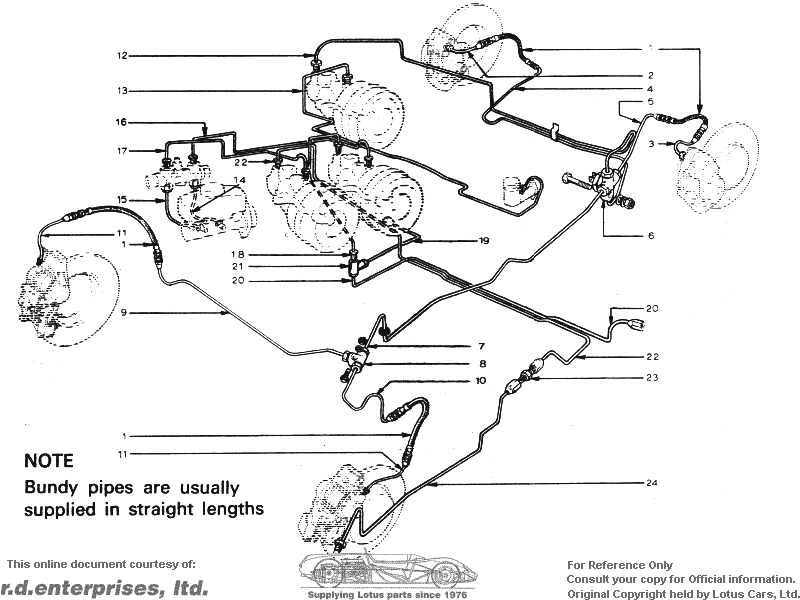

| 1 | 050J6004 | 4 | Hose - Front and Rear | ||||||||
| LUFN060F | 8 | Locknut, Hose to Mountings | |||||||||
| L06W0000 | 8 | Washer, Hose to Mountings | |||||||||
| 2 | 050J6009 | 1 | Bundy Pipe - Hose to Caliper, LH | ||||||||
| 3 | 050J6010 | 1 | Bundy Pipe - Hose to Caliper, RH | ||||||||
| 036J6052 | 1 | Bundy Pipe - 5 way to Hose Front, LH | |||||||||
| 4 | A036J6093 | 1 | Bundy Pipe - 5 way to Hose Front, RH | ||||||||
| 036J6053 | 1 | Bundy Pipe - 5 way to Hose Front, RH (replaced by 026J6003) | |||||||||
| 5 | 026J6003 | 1 | Bundy Pipe - 5 way to Hose Front, RH | ||||||||
| 6 | 036J6015 | 1 | Union - 5 way | ||||||||
| 036J6017 | 1 | Stop Lamp Switch (replaced by 046J6025) | |||||||||
| 046J6025 | 1 | Stop Lamp Switch | |||||||||
| 7 | 050J6011 | 1 | Bundy Pipe - 5 way to 3 way, Rear | ||||||||
| 036J6014 | 1 | Grommet - Pipe to Chassis | |||||||||
| 8 | 036J6016 | 1 | Union - 3 way | ||||||||
| XUFB0420 | 2 | Bolt, Union to Chassis | |||||||||
| YUFN040F | 2 | Nut, Union to Chassis | |||||||||
| 050J6012 | 1 | Bundy Pipe - 3 way to Hose, Rear, LH (replaced by 026J6024) | |||||||||
| 9 | 026J6024 | 1 | Bundy Pipe - 3 way to Hose, Rear, LH | ||||||||
| 050J6013 | 1 | Bundy Pipe - 3 way to Hose, Rear, RH (replaced by 026J6018) | |||||||||
| 10 | 026J6018 | 1 | Bundy Pipe - 3 way to Hose, Rear, RH | ||||||||
| 11 | 050J6038 | 2 | Bundy Pipe - Rear Hose to Caliper | ||||||||
| 036J6090 | 1 | Bundy Pipe - Servo 5 way | |||||||||
| 12 | A036J6096 | 1 | Bundy Pipe - Servo 5 way | ||||||||
| 13 | 050J6007 | 1 | Bundy Pipe - Master Cylinder to Servo | ||||||||
| 050J6033 | 1 | Bundy Pipe - Master Cylinder to Servo (replaced by 026J6007) | |||||||||
| 026J6007 | 1 | Bundy Pipe - Master Cylinder to Servo | |||||||||
| 14 | 050J6046 | 1 | 1 | Bundy Pipe - Pressure Differential Warning Valve to Master Cylinder, Front | |||||||
| 15 | 050J6047 | 1 | 1 | Bundy Pipe - Pressure Differential Warning Valve to Master Cylinder, Rear | |||||||
| 16 | 050J6048 | 1 | 1 | Bundy Pipe - Pressure Differential Warning Valve to Servo | |||||||
| 17 | 050J6049 | 1 | 1 | Bundy Pipe - Pressure Differential Warning Valve to Servo | |||||||
| 18 | 050J6050 | 1 | 1 | Bundy Pipe - Front Servo to 3 way | |||||||
| 19 | 036J6089 | 1 | 1 | Bundy Pipe - 3 way to Front Caliper, LH | |||||||
| 036J6052 | 1 | 1 | Bundy Pipe - 3 way to Front Caliper, RH | ||||||||
| 20 | A036J6093 | 1 | 1 | Bundy Pipe - 3 way to Front Caliper, RH | |||||||
| 21 | 036J6016 | 1 | Union - 3 way | ||||||||
| 050J6084 | 1 | 1 | Bundy Pipe - Rear Servo to Connector | ||||||||
| 22 | A036J6095 | 1 | 1 | Bundy Pipe - Rear Servo to Connector | |||||||
| 23 | A050J6085 | 1 | 1 | Conncetor - Dual Brakes | |||||||
| 24 | 050J6052 | 1 | 1 | Bundy Pipe - Front Connector to Rear | |||||||
| 050J6043 | 2 | Bolt - Banjo | |||||||||
| 050J6044 | 2 | Banjo Union | |||||||||
| 050J6055 | 4 | Gasket - Union |
