LOTUS ELAN+2 PARTS MANUAL

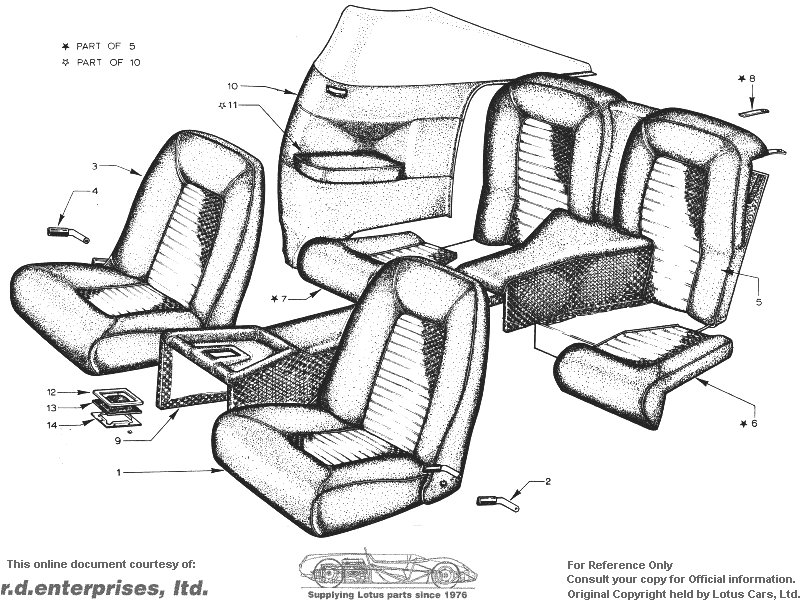

Section BMS -- Body - Interior


Item
Lotus #
Description
Change Point
Notes
Bulletin Reference
C05CB0739            Front Seat Assembly, LH
050B1751          Handle - Seat Adjustment, LH
C050B0740            Front Seat Assembly, RH
050B1752          Handle - Seat Adjustment, RH
050B1609          Rear Seat Assembly
050B1585          Cushion - Rear Seat, LH
050B1856          Cushion - Rear Seat, RH
050B1782          Strap - Seat Squab
 406          Clip - Strap
050B0920          Tunnel Top - Trimmed
 C050B2017          Rear Quarter Panel Assembly, LH
 050B1607          Arm Rest, LH
10 C050B2018          Rear Quarter Panel Assembly, RH
11 050B1608          Arm Rest, RH
