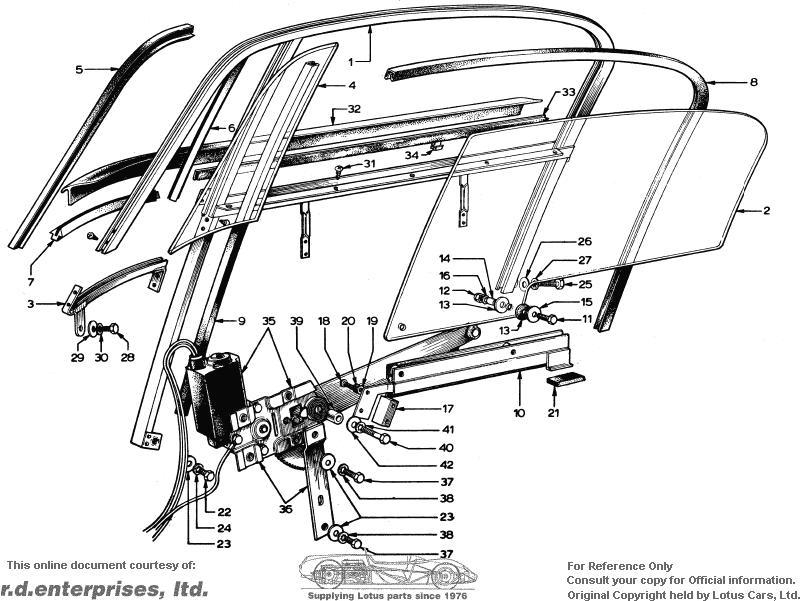

 |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 050B0789 | 1 | Window Frame Assembly LH | Upto 0928 | ||||||||
| 1 | 050B0790 | 1 | Window Frame Assembly RH | Upto 0928 | |||||||
| 050B0789A | 1 | Window Frame Assembly LH | From 0929 | ||||||||
| 050B0790A | 1 | Window Frame Assembly RH | From 0929 | ||||||||
| 050B0667 | 1 | Side Window Glass LH | |||||||||
| 2 | 050B0668 | 1 | Side Window Glass RH | ||||||||
| 050B0667A | 1 | Side Window Glass LH Sundym | |||||||||
| 050B0668A | 1 | Side Window Glass RH Sundym | |||||||||
| 050B0857 | 1 | Base Channel - Quarter Light LH | |||||||||
| 3 | 050B0858 | 1 | Base Channel - Quarter Light RH | ||||||||
| 050B0669 | 1 | Quarter Light Glass LH | |||||||||
| 4 | 050B0670 | 1 | Quarter Light Glass RH | ||||||||
| 050B0669A | 1 | Quarter Light Glass LH Sundym | |||||||||
| 050B0670A | 1 | Quarter Light Glass RY Sundym | |||||||||
| 5 | 050B1231 | 2 | Seal - Quarter Light, 20 ins. long | ||||||||
| 6 | 050B0671 | 2 | Seal - Quarter Light, 15 ins. long | ||||||||
| 7 | 050B1239 | 2 | Seal - Quarter Light, 7 ins. long | ||||||||
| 8 | 050B0505 | 2 | Silent Channel, long | ||||||||
| 9 | 050B0504 | 2 | Silent Channel, short | ||||||||
| 050B0693 | 1 | Steady Plate LH | |||||||||
| 10 | 050B0694 | 1 | Steady Plate RH | ||||||||
| 11 | XUFS0416 | 4 | Screw, Steady Plate to Glass | ||||||||
| 12 | YUFN040F | 4 | Nut, Steady Plate to Glass | ||||||||
| 13 | A050B1926 | 8 | Washer, Steady Plate to Glass | ||||||||
| 14 | A050B2025 | 4 | Sleeve, Steady Plate to Glass | ||||||||
| 15 | A04W1606 | 4 | Washer, Steady Plate to Glass | ||||||||
| 16 | A04W0904 | 4 | Washer, Steady Plate to Glass | ||||||||
| 17 | 050B1007 | 2 | Steedy Block - Side Window | ||||||||
| 18 | XUFS0310 | 4 | Screw, Steady Block to Steady Plate | ||||||||
| 19 | A03W0805 | 4 | Washer, Steady Block to Steady Plate | ||||||||
| 20 | L03W0000 | 4 | Washer, Steady Block to Steady Plate | ||||||||
| 21 | 050B0114 | 2 | Rubber Downspot | ||||||||
| 22 | XUCS0412 | 2 | Screw, Window Frame to Door, front | ||||||||
| 23 | A04W1606 | 2 | Washer, Window Frame to Door, front | ||||||||
| 24 | L04W0000 | 2 | Washer, Window Frame to Door, front | ||||||||
| 25 | XUFS0416 | 2 | Screw, Window Frame to Door, rear | ||||||||
| XUFS0414 | 2 | Screw, Window Frame to Door, rear | |||||||||
| 26 | A04W0905 | 4 | Washer, Window Frame to Door, rear | ||||||||
| 27 | L04W0000 | 4 | Washer, Window Frame to Door, rear | ||||||||
| 28 | XUFB0420 | 2 | Bolt, Quarter Light Channel to Door | ||||||||
| 29 | A04W0905 | 2 | Washer, Quarter Light Channel to Door | ||||||||
| 30 | L04W0000 | 2 | Washer, Quarter Light Channel to Door | ||||||||
| 31 | KSTS0806 | 10 | Screw, Inner Angle to Door | ||||||||
| 050B6009 | 10 | Nut, Inner Angle to Door | |||||||||
| 32 | 050B0673 | 2 | Weather-Strip - Waist | ||||||||
| 33 | 050B6011 | 2 | Weather-Strip - Interior | ||||||||
| 34 | 050B6012 | 12 | Clip - Weather-Strip to Frame | ||||||||
| 050B6013 | 1 | Window Lift Motor & Mechanism LH | |||||||||
| 35 | 050B6014 | 1 | Window Lift Motor & Mechanism RH | ||||||||
| 050B6013 | 2 | Sleeve | |||||||||
| 050B6016 | 2 | Stud | |||||||||
| 36 | 050B1008 | 2 | Mounting Plate - Window Lift | ||||||||
| 37 | XUFB0424 | 4 | Bolt, Mounting Plate to Door | ||||||||
| 38 | L04W0000 | 4 | Washer, Mounting Plate to Door | ||||||||
| XUFB0412 | 4 | Bolt, Motor to Plate | |||||||||
| L04W0000 | 4 | Washer, Motor to Plate | |||||||||
| A04W0905 | 4 | Washer, Motor to Plate | |||||||||
| 39 | W0078 | 4 | Spacer, Motor to Door | ||||||||
| 40 | XUFB0426 | 4 | Bolt, Motor to Door | ||||||||
| 41 | L04W0000 | 4 | Washer, Motor to Door | ||||||||
| 42 | A04W0906 | 4 | Washer, Motor to Door | ||||||||
| 050B1009 | 1 | Finisher - Door Front LH | |||||||||
| 050B1010 | 1 | Finisher - Door Front RH | |||||||||
| PSTS0408 | 2 | Screw - Door Front Finisher |
