 |  |  |  |  |  |  |  | Notes Bulletin Reference | |||

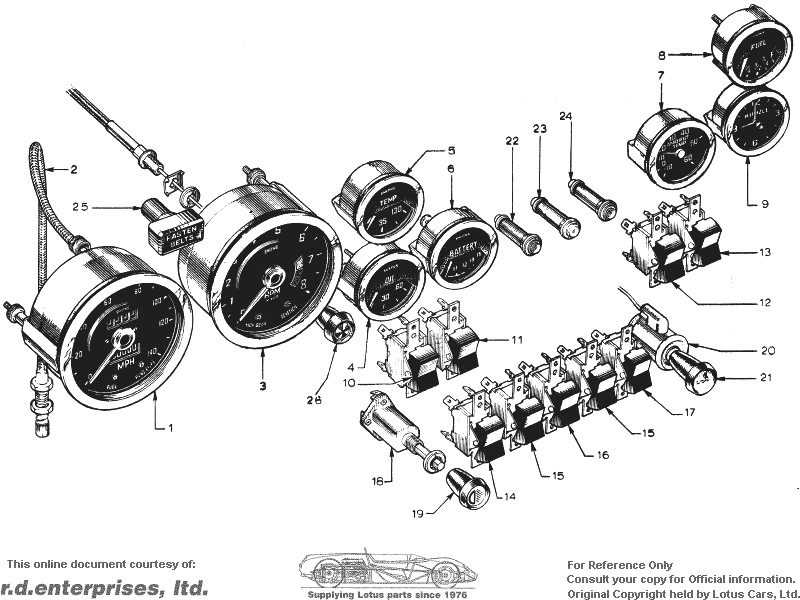

| 'S' 130 REVISED ELECTRICS | UK: 7205732L onwards EXPORT: 72050235M onwards FED: 72050272N onwards | ||||||||||
| 1 | A050B6079Z | 1 | Speedometer. MPH | ||||||||
| A050B6088Z | 1 | Speedometer. KPH | |||||||||
| X036B6027W | 1 | Cable. Speedometer drive | |||||||||
| X036B6010Z | 1 | Grommet. Speedometer drive Cable | |||||||||
| 2 | X036M6075Z | 1 | Cable. Speedometer Reset | ||||||||
| 3 | X050B6141Z | 1 | Tachometer. | ||||||||
| 4 | A050N6006Z | 1 | Gauge. Oil | ||||||||
| 5 | X050B6143Z | 1 | Gauge. Water temperature | ||||||||
| 6 | X050M6120Z | 1 | Indicator. Battery Condition | ||||||||
| 7 | AO50B6138Z | 1 | Gauge. Ambient Temperature | ||||||||
| 8 | X050B6145Z | 1 | Gauge. Fuel | ||||||||
| 9 | A050M6227Z | 1 | Clock. | ||||||||
| 10 | X036M6153Z | 1 | Switch. Screen Wiper | ||||||||
| 11 | X036M6096Z | 1 | Switch. Screen Washer | ||||||||
| 12 | X050M6073Z | 1 | Switch. Panel/Interior Light | ||||||||
| 13 | X054M 6002Z | 1 | Switch. Fan | ||||||||
| 14 | X036M6094Z | 1 | Switch. Fog Light | ||||||||
| 15 | X036M 6290Z | 2 | Switch. Window Operating | ||||||||
| 16 | X050M 6091Z | 1 | Switch. Hazard Warning | ||||||||
| 17 | X036M 6094Z | 1 | Switch. Rear Screen | ||||||||
| 18 | A050M 6219W | 1 | Switch. Lights | ||||||||
| 19 | X036B 6008Z | 1 | Knob. Light Switch | ||||||||
| 20 | X036M 6031Z | 1 | Body. Cigar lighter | ||||||||
| 21 | X036M 6032Z | 1 | Insert | Cigar lighter | |||||||
| 22 | X036M 6277Z | 1 | + | + | Indicator. Hazard Warning | (NON-FED) | |||||
| B050M 0151W | 1 | + | Indicator. Hazard Warning | (FED.ONLY) | |||||||
| 23 | X050M 6173Z | 1 | Indicator. Rear Screen | ||||||||
| 24 | X036M 6277Z | 1 | Indicator. Park/Brake fail Warning | ||||||||
| 25 | A074M 6013Z | 1 | Indicator. Seat Belt Warnlng(FED ONLY) |
