 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||

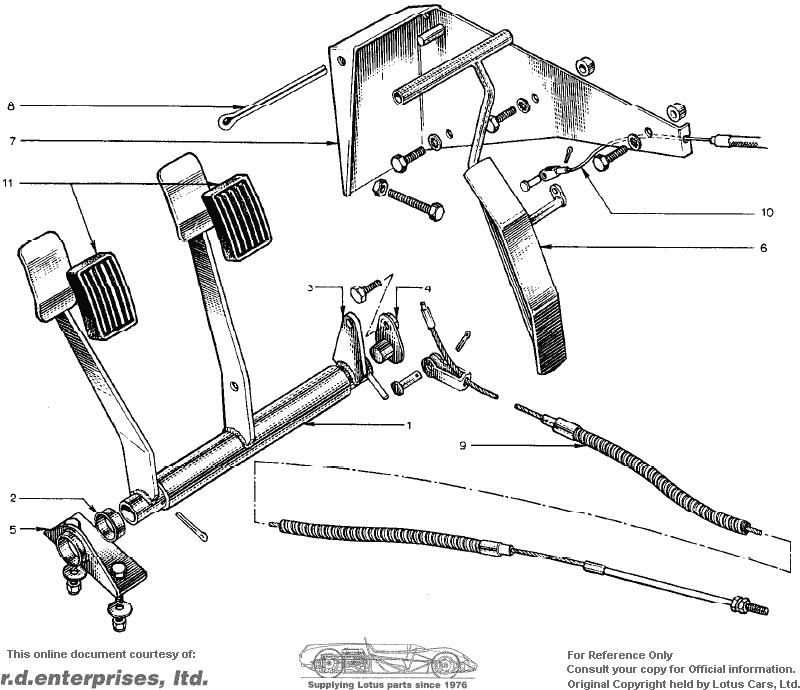

| 1 | 046J0707 | 1 | 1 | + | Pedal Assembly | ||||||||
| 2 | 046J6027 | 1 | 1 | + | Bushing - Clutch Pedal Shaft | ||||||||
| 3 | 046J0073 | 1 | 1 | + | Spikot Plate | ||||||||
| 4 | 046J6026 | 1 | 1 | + | Support Bush - Brake Pedal | ||||||||
| XUFS0412 | 1 | 1 | + | Screw - Support Bush to Chassis | |||||||||
| L04W0000 | 1 | 1 | + | Washer - Support Bush to Chassis | |||||||||
| 5 | 046J0030 | 1 | 1 | + | Pedal Mounting Bracket | ||||||||
| YUFN040F | 2 | 2 | + | Nut - Mounting Bracket to Body | |||||||||
| A04W0905 | 2 | 2 | + | Washer - Mounting Bracket to Body | 1/32" thick, 1/2" OD, 1/4" ID | ||||||||
| 6 | 046S0702? | 1 | 1 | + | Throttle Pedal Assembly | This number also used for "Throttle Cable" | |||||||
| 7 | 046S0081 | 1 | 1 | + | Mounting Bracket - Throttle pedal | ||||||||
| 8 | 046S6016 | 1 | 1 | + | Pivot Pin | ||||||||
| XUFS0412 | 3 | 3 | + | Screw - Throttle Pedal Mounting | |||||||||
| L04W0000 | 3 | 3 | + | Washer - Throttle Pedal Mounting | |||||||||
| XUFS0416 | 1 | 1 | + | Screw - Throttle Stop | |||||||||
| AUFN040H | 1 | 1 | + | Nut - Throttle Stop | |||||||||
| 9 | 046Q0025 | 1 | 1 | + | Clutch Cable | ||||||||
| W0084 | 1 | 1 | Clevis Pin - Clutch Cable to Pedal | ||||||||||
| W0086 | 1 | 1 | Split Pin - Clutch Cable to Pedal | ||||||||||
| 10 | 046S0702 | 1 | 1 | Throttle Cable | This number also used for "Throttle Pedal Assembly" | ||||||||
| W0084 | 1 | 1 | Clevis Pin - Throttle Cable to Pedal | ||||||||||
| W0086 | 1 | 1 | Split Pin - Throttle Cable to Pedal | ||||||||||
| 036J6011 | 1 | 1 | Replaced by 036J6029 | ||||||||||
| 11 | 036J6029 | 2 | 2 | 2 | 2 | Pedal Rubber |
