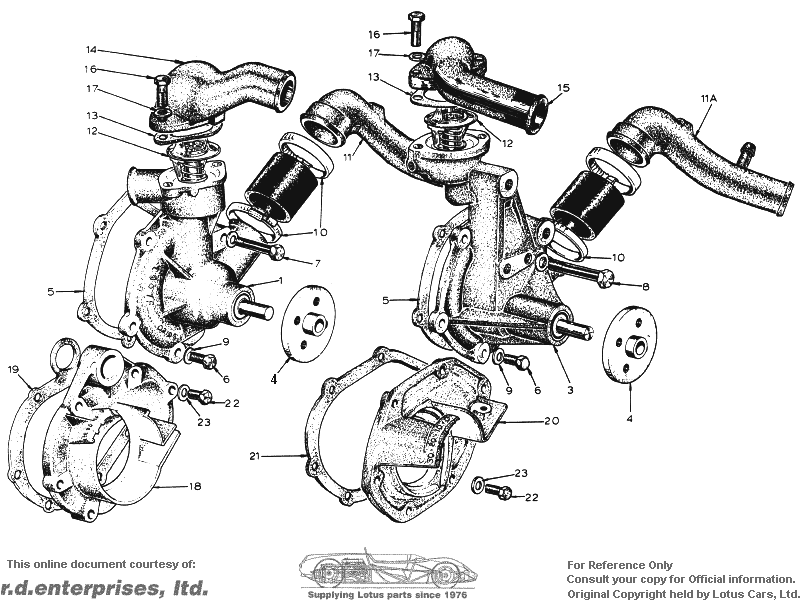

Ref. No. |  |  |  |  |  |  |  |  | |||||
| ED 1 | Water Pump Assembly (less pulley hub) | D907E0743W | * | * | * | * | 1 | All cars with single 'V' Cra *? | |||||
| ED 3 | Water Pump Assembly (less pulley hub) | C907E0878J | * | * | * | * | 1 | All cars with multiple 'V' *?
If used to replace D907E07 *? | |||||
| Stud, M8 x 640 mm | A907E1154F | * | * | * | * | 1 | With Air Pump only. Also required if fitting Pump *? C907E0878J to replace type *? integral Air Pump Bracket | ||||||
| Stud, M8 x 47.5 mm | A907E0520ZH | * | * | * | * | 1 | With Air Pump only. Also required if fitting Pump *? C907E0878J to replace type *? integral Air Pump Bracket | ||||||
| Stud, M8 x 37.5 mm | A907E1012ZG | * | * | * | * | 1 | With Air Pump only. Also required if fitting Pump *? C907E0878J to replace type *? integral Air Pump Bracket | ||||||
| Bracket, Air Pump | A907Ell15Z | * | * | * | * | 1 | With Air Pump only. Also required if fitting Pump *? C907E0878J to replace type *? integral Air Pump Bracket | ||||||
| Bolt, M8 x 35 mm | A075W2038ZK | * | * | * | * | 1 | With Air Pump only. Also required if fitting Pump *? C907E0878J to replace type *? integral Air Pump Bracket | ||||||
| Nut, Nyloc, M8 | A075W3010ZK | * | * | * | * | 2 | With Air Pump only. Also required if fitting Pump *? C907E0878J to replace type *? integral Air Pump Bracket | ||||||
| Washer, Plain | A075W4020ZB | * | * | * | * | 4 | With Air Pump only. Also required if fitting Pump *? C907E0878J to replace type *? integral Air Pump Bracket | ||||||
| ED 4 | Hub, Pulley | A907E6096ZE | * | * | * | * | 1 | ||||||
| 'V' Pulley, Water Pump | A907E6095ZL | * | * | * | * | 1 | |||||||
| Setscrew, Pulley to Hub | A075W1007ZA | * | * | * | * | 4 | |||||||
| Washer, Spring | A075W4035ZL | * | * | * | * | 4 | |||||||
| Washer, Plain | A075W4013ZL | * | * | * | * | 4 | |||||||
| Spacer, 10.2 mm, Hub to Pulley | A907E0573ZJ | * | * | * | * | 1 | As applicable. Early cars only *? | ||||||
| Spacer, 16.0 mm, Hub to Pulley | A907El125Z | * | * | * | * | 1 | As applicable. Early cars only *? | ||||||
| Spacer, 23.0 mm, Hub to Pulley | A907E0670ZA | * | * | * | * | 1 | As applicable. Early cars only *? | ||||||
| ED 5 | Gasket, Pump to Block | A907E0246Z | * | * | * | * | 1 | ||||||
| ED 6 | Bolt, M6 x 25 | A075W2027ZK | * | * | * | * | 4 | ||||||
| ED 7 | Bolt, M6 x 65 | A075W2037ZF | * | * | * | * | 1 | Use with Pump D907E0743W | |||||
| ED 8 | Bolt, M6 x 75 | A075W2036Z | * | * | * | * | 1 | Use with Pump C907E0878J | |||||
| ED 9 | Washer, Plain | A075W4013ZL | * | * | * | * | 5 | ||||||
| ED 10 | Clip, Hose, Pump Inlet | A079K6019F | * | * | * | * | 2 | ||||||
| ED 11 | Pipe, Pump Inlet | A907E0686Z | * | * | * | * | 1 | Without Header Tank Con. | |||||
| ED 11A | Pipe, Pump Inlet | E907E0478Z | * | * | * | * | 1 | With Header Tank Con. | |||||
| ED 12 | Thermostat, 82 °C | A907E6046ZH | * | * | * | * | 1 | Temperate climates | |||||
| Thermostat, 74 °C | A075K0121F | * | * | * | * | 1 | Hot climates | ||||||
| ED 13 | Gasket, Outlet Pipe to Pump | A026E6102ZD | * | * | * | * | 1 | ||||||
| ED 14 | Pipe, Water Outlet | C907E0479Y | * | * | * | * | 1 | Use with Pump D907E0743W | |||||
| ED 15 | Pipe, Water Outlet | A907E1066FK | * | * | * | * | 1 | Use with Pump C907E0878J | |||||
| ED 16 | Setscrew, Outlet Pipe to Pump | A075W1039ZG | * | * | * | * | 2 | ||||||
| ED 17 | Washer, Plain | A075W4020ZB | * | * | * | * | 2 | ||||||
| Hose, Pump to Inlet Manifold | B907E0279ZL | * | * | * | * | 1 | 1 | Use wlth Pump D907E0743W | |||||
| Hose, Pump to Inlet Manifold | A907E1319F | * | * | * | * | 1 | 1 | Use with Pump C907E0878J | |||||
| Hose, pump to Inlet Manifold | A907E0280ZA | * | * | * | * | 1 | Use with Pump D907E0743W | ||||||
| Hose, pump to Inlet Manifold | A907E1065FE | * | * | * | * | 1 | Use with Pump C907E0878J | ||||||
| ED 18 | Front Cover | D907E0603Y | * | * | * | * | 1 | Manual (Eccentric) Belt Tensioner | |||||
| ED 19 | Gasket, Front Cover | A907E0245ZB | * | * | * | * | 1 | Manual (Eccentric) Belt Tensioner | |||||
| ED 20 | Front Cover | A907E1230F | * | * | * | * | 1 | Semi-Automatic Belt Tensioner | |||||
| ED 21 | Gasket, Front Cover | A907E0245ZB | * | * | * | * | 1 | Semi-Automatic Belt Tensioner | |||||
| ED 22 | Setscrew, Front Cover Fix | A075W2027ZK | * | * | * | * | 7 | ||||||
| ED 23 | Washer, Plain | A075W4013ZL | * | * | * | * | 7 | ||||||
| 'V' Belt Alternator/Water Pump | C907E0529Z | * | * | * | * | 1 | With single 'V' Crank Pulley | ||||||
| 'V' Belt Alternator/Water Pump | A907E6223ZF | * | * | * | * | 1 | With multiple 'V' Crank Pulley and Chrysler 60A Alternator | ||||||
| 'V' Belt, Alternator only | A907E6271F | * | * | * | * | 1 | Lucas 18 ACR Alternator. Not *? | ||||||
| 'V' Belt, Alternator only | A907E6315F | * | * | * | * | 1 | Motorola Alternator. Not A/C *? | ||||||
| 'V' Belt, Alternator only | A907E6199FB | * | * | * | * | 1 | With A/C and Chrysler 60A Alt *? | ||||||
| 'V' Belt, Alternator only | A907E6268Z | * | * | * | * | 1 | With A/C and Motorola Alternator *? | ||||||
| 'V' Belt, Water Pump only | A907E6270F | * | * | * | * | 1 | |||||||
| 'V' Belt, Water Pump/PAS Pump | A907E6201ZP | * | * | * | * | 1 | |||||||
| 'V' Belt, Air Conditioning Compressor | B907E0590F | * | * | * | * | 1 | |||||||
| FOR CRANKSHAFT 'V' PULLEYS SEE SECTION EC (Pistons, Rods & Crank) | |||||||||||||
